| Property | Value |
|---|---|
| Item | Washdown Motor |
| Motor Design | 3-Phase |
| Phase | Three |
| HP | 3 |
| RPM Range | 3,001-3,600 |
| Voltage | 230/460V AC |
| Frame | 182TC |
| Motor Frame Material | Epoxy Coated Rolled Steel |
| Motor Thermal Protection | None |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC |
| Motor Shaft Design | Keyed |
| Frame Material | Epoxy Coated |
| Motor Shaft Rotation | CW/CCW |
| Motor Application | Washdown |
| Motor Mounting Position | Horizontal |
| Endshields | Cast Aluminum |
| Length Less Shaft | 16 1/16 in |
| Motor Bearings | Ball |
| Full Load Amps | 7.4/3.7 A |
| NEMA Design | B |
| Motor Service Factor | 1.15 |
| CC Number | CC030A |
| Ins. Class | F |
| Shaft Length | 2 5/8 in |
| Max. Ambient Temp. | 40 Degrees C |
| Conduit Box | Cast Aluminum with Buna N Gasketed Cover |
| Hz | 60/50 Hz |
| Duty | Continuous |
| Application | High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns |
| Inverter Rated | Yes |
| Body Dia. | 9.63 in |
| Drain Plugs | (4) Each End, (2) In Conduit Box |
| Nominal Efficiency | 88.5 % |
| Footnotes | 8, 11 |
| Shaft Material | 303 Stainless Steel |
| Nameplate RPM | 3,535 |
| Includes | Side-Mounted Conduit Box |
| Standards | CSA Certified (258525), UL Recognized (E47479), USDA Approved |
| Overall Length | 18 11/16 in |
| Shaft Dia. | 1 1/8 in |
| Motor Mounting Type | Face/Base |
| Duty Cycle | Continuous |
| Endshield Material | Cast Aluminum |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

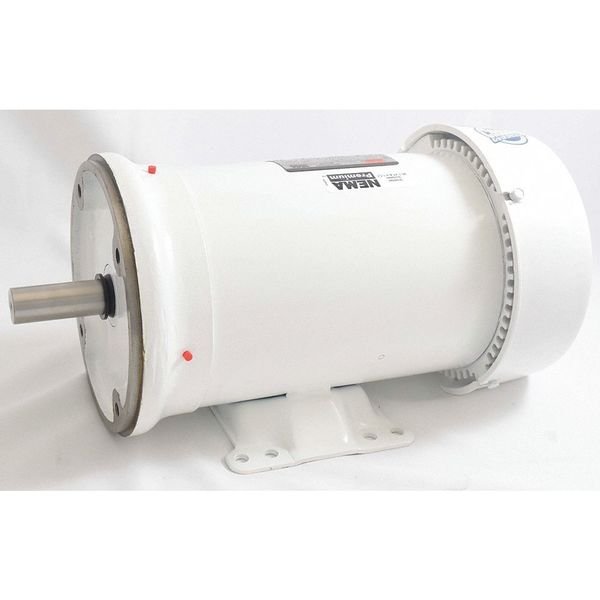

Washdown Motor, 3 Ph, TEFC, 3 HP, 3510 rpm, DAYTON, Mfr# 5XAT7
$1478.99
Free shipping will be applied on orders over $50
Washdown Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 3,535, Voltage 230/460V AC, Full Load Amps 7.4/3.7 A, 182TC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal, Motor Frame Material Epoxy Coated Rolled Steel
Out of stock
