| Property | Value |
|---|---|
| Discharge | Thru-Flow |
| Body Dia. | 5.7 in |
| Voltage | 120V AC |
| Blower Stages | 2 |
| CFM @ 2-In. Orifice | 115 cfm |
| Mounting Brackets | Metal |
| Motor Enclosure Design | Open |
| No. of Speeds | 1 |
| Motor Design | Universal AC/DC |
| Bearings | Ball |
| Ins. Class | A |
| Ambient Temperature | 40 Degrees C |
| Overall Height | 5 3/4 in |
| Motor Mounting Position | All Angle |
| Hz | 60 |
| Footnotes | 68 |
| Motor/Blower Type | Thru-Flow |
| Max. Air Watts | 356 W |
| Max. Amps | 9.4 A |
| Standards | CSA (LR31393), UL (E47185) |
| Average Life | 500 hr |
| Phase | Single |
| Replacement Brushes | 152F62 |
| Motor Efficiency Group | Energy Efficient |
| Motor Thermal Protection | None |
| Duty | Intermittent |
| Vacuum (H2O Sealed) | 96.4 |
| Motor Mounting Type | Lug |
| Item | Vacuum Motor |
| Overall Length | 6 1/16 in |
| Mounting Bracket Material | Metal |
| Inlet Tube Dia. | Not Applicable |
| Motor Application | Universal AC/DC Motor |
| Max. Ambient Temp. | 40 Degrees C |
| Frame | Non-Standard |
| Nameplate RPM | 25,500 |
| Vacuum Rating | 90.4 |
| Motor Bearings | Ball |
| Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
| Full Load Amps | 9.4 |
| Duty Cycle | Intermittent |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

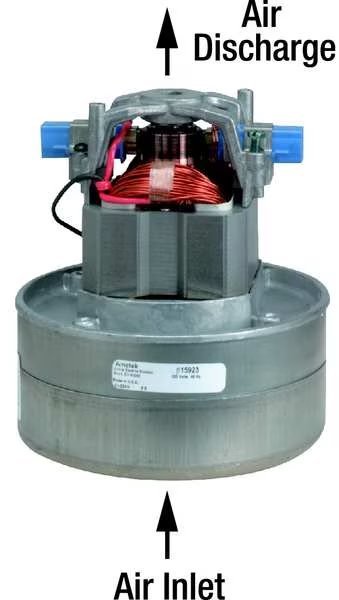

Vacuum Mtr/Blwr, Thru-Flow, 2 Stge, 1 Spd, Ametek, Mfr#: 115982
$93.99
Free shipping will be applied on orders over $50
Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 25,500, No. of Speeds 1, 120V AC Voltage, Full Load Amps 9.4, Non-Standard Frame, Motor/Blower Type Thru-Flow, Max. Amps 9.4 A, 60 Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 356 W, Vacuum Rating 90.4, CFM @ 2-In. Orifice 115 cfm
Out of stock
