| Property | Value |
|---|---|
| Item | Tool Post Holder |
| Type | Turning, Facing and Boring |
| For Use With | EA Tool Post |

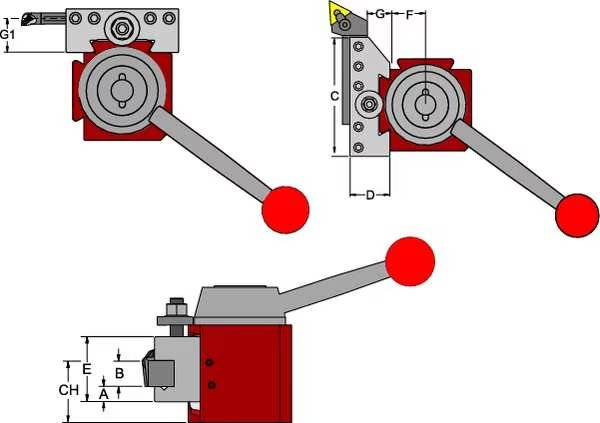

| Dimension E (In.) | 4.00 |
| Dimension A (In.) | 1.000 |
| Dimension G (In.) | 1.736 |
| Dimension D (In.) | 3.000 |
| Dimension C (In.) | 7.000 |
| Application | V-Groove Allows Either Square Shank Indexable Toolholders Or Boring Bars To Be Held Close To The Tool Post When Turning, Facing, Threading Or Boring |
| Series | EA |
| Dimension F (In.) | 3.943 |
| Overall Length | 5.1190 in |
| Tool Post Holder Type | Facing And Boring, Turning |
| Holder Type | Boring, Facing, Turning |
| For Shank Height | 1 1/2 in |
| For Tool Post Type | EA |
| Features | Fits Industry Standard Tool Posts |
| For Shank Type | Square |
| Overall Height | 4 in |
| Tool Post Series | EA |
| Compatible Shank Shape | Round, Square |
| Compatible Shank Size - Minimum | Not Applicable |
| Overall Width | 7 in |
| Compatible Shank Size - Maximum | 1 1/2 in |
| Compatible Tool Type | Indexable Boring Bars, Indexable Thread-Turning Toolholders, Indexable Turning Toolholders |
| Compatible Manufacturer Model Number | SDN60EA |
| Centerline Height - Maximum | 3.54 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
Tool Holder, Turning/Facing/Boring, EA, Dorian, Mfr#: D60EA-2
$304.99
Free shipping will be applied on orders over $50
Tool Post Holder, For Tool Post Type EA, Overall Height 4 in, Overall Length 5.1190 in, For Shank Type Square, For Shank Height 1 1/2 in
Out of stock
