| Property | Value |
|---|---|
| Connector Type | Terminal - Ring |
| Material | Copper |
| Item | Tin Plated |
| Die Index | 39 |
| Physical Attribute - Tongue Angle | Straight |
| Conductor - Copper Flex G Size | 6 |
| Dimension - Bolt Hole Size inch | 0.27 in |
| Dimension - B Length fraction | 1/2 in |
| Application | For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance |
| Physical Attribute - Number of Holes | 1 |
| Conductor - Copper Flex K Size | 6 |
| Conductor - Copper Str Aircraft Size | AN 6 |
| Type | Ring Tongue |
| Plating Type | Tin - Electro Plated |
| Physical Attribute - Tongue Type | Ring |
| Dimension - Length Overall inch | 1.31 in |
| Dimension - Strip Length inch | 1 to 2 |
| Dimension - Outside Diameter inch | 0.30 in |
| Conductor - Copper Solid Size | 6 |
| Feature - Barrel Type | Standard |
| Dimension - Stud Size inch | 1/4 in |
| Plated | Y |
| Conductor - Copper Str Size Range | 6 |
| Conductor - Copper Str Size | 6 |
| Dimension - Hole Size mm | 7 mm |
| Conductor - Copper Flex M Size | 6 |
| Dimension - B Length inch | 0.467 in |

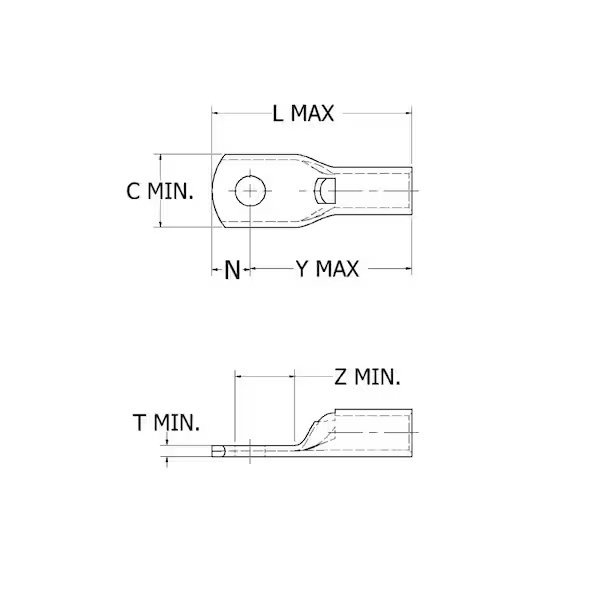

| Dimension - Z inch | 0.29 in |
| Conductor - Copper Flex H Size | 6 |
| Conductor - Copper Flex I Size | 6 |
| Dimension - Pad Width inch | 0.48 in |
| Feature - Barrel Style | Chamfered |
| Dimension - N inch | 0.24 in |
| Industry Standard(s) | UL467Military Specified (Mil-Spec) |
| Standards - Industry Standards Met | UL467Military Specified (Mil-Spec) |
| UL Listed | Yes |
| Material Composition | DLP CopperTin Plating |
| Dimension - Bolt Size fraction | 2023-01-04 |
| Conductor Size | 6 AWG |
| Trade Name | HYLUG™ |
| Certification - CSA Approved | Yes |
| Conductor Type | CU C Solid-SizeCU C Str-Size |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
Tin Plated Lug, PG476, BURNDY, Mfr# YAV6CL
$1.15
Free shipping will be applied on orders over $50
Tin Plated
Out of stock
