| Property | Value |
|---|---|
| Item | Threading Insert |
| Thread Type | Whitworth |
| Style | Whitworth |
| Insert Size | 3 |
| Chip-Breaker | Yes |
| Grade | TN6025 |
| Cutting Direction | Right Hand |
| ISO Number | 3ER11W |
| Inscribed Circle | 3/8 in |
| Insert Type | 3ER |
| Insert Shape | Triangle |
| Included Angle | 55 Degrees |
| Threading Location | External |
| Primary Material Application | Cast Iron, Nickel, Stainless Steel, Steel, Titanium |
| Finish - Machining | AlTiN |
| Secondary Material Application ISO Code | N |
| Thread Direction | Right Hand |
| Insert Style | 3ER |
| Coating Process | PVD |
| Primary Material Application ISO Code | K, M, P, S |
| Material - Machining | Carbide |
| Number of Cutting Edges | 3 |
| Cutting Application | Turning |
| Thread Height Difference | 1.09mm |
| ANSI Code | 3ER11W |
| Manufacturer Grade | TN6025 |
| Secondary Material Application | Aluminum, Brass, Bronze, Copper |
| Insert Length | 16.50mm |
| Measurement System | Metric |
| Thread Standard | Whitworth |
| Chip-Breaker Style | One Side |
| Feed Type | High |
| Max. Thread Pitch | 11 |
| Side-to-Cutting Tip | 1.50mm |
| Insert Holding Type | 3/8 in |
| Country of Origin (subject to change) | Israel |
| Package Quantity | 1 |

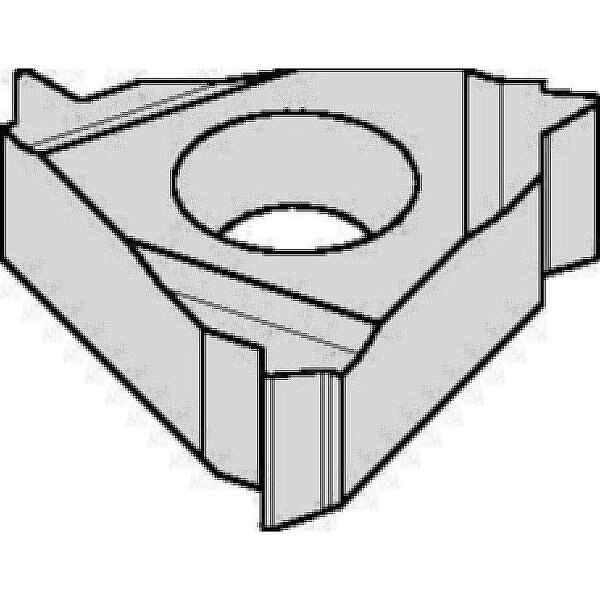

Threading Insert, 3ER, Triangle, Widia, Mfr#: 3ER11W
$24.79
Free shipping will be applied on orders over $50
Threading Insert, 3ER, External, Cutting Direction Right Hand, Whitworth, Primary Material Application Cast Iron, Nickel, Stainless Steel, Steel, Titanium, Inscribed Circle 3/8 in
Out of stock
