| Property | Value |
|---|---|
| Length | 15.9 mm [ .625 in ] |
| Width | 10.9 mm [ .429 in ] |
| Contact Material | Gold F |
| Height | 11.7 mm [ .461 in ] |
| Contact Current Class | 0 to 2 A |
| Termination Type | Through Hole |
| Contact Limiting Breaking Current (A) | 1 |
| Environmental Ambient Temperature (Max) | 70 °C [ 158 °F ] |
| Insulation Creepage Between Contact and Coil | 1.76 mm [ .069 in ] |
| Environmental Ambient Temperature Class | 50 to 70°C |
| Terminal Type | PCB-THT |
| Insulation Special Features | 1500V Initial Surge Withstand Voltage between Contacts u0026 Coil |
| Product Type | Relay |
| Contact Number of Poles | 1 |
| Insulation Creepage Class | 1.5 to 3 mm |
| Insulation Clearance Between Contact and Coil | 1.5 mm [ .059 in ] |
| Insulation Clearance Class | 0 to 2.5 mm |
| Operating Temperature Range (°C) | -30 to 70 |
| Insulation Initial Resistance (MΩ) | 1000 |
| Actuating System | DC |
| Contact Arrangement | 6 Form C (CO) |
| Coil Voltage Rating (VAC) | 24 |
| Contact Switching Load (Min) | 1mA @ 1V |
| Contact Limiting Making Current (A) | 1 |
| Insulation Initial Dielectric Between Contacts and Coil (Vrms) | 1000 |
| Performance Type | Standard |
| Coil Magnetic System | Monostable, DC |
| Contact Limiting Continuous Current (A) | 2 |
| Coil Type | DC Coil |
| Relay Type | T81 Series Signal PCB Relay |
| Relay Style | T81 Signal Relay |
| Mounting Type | Screw Mount, Socket |
| Environmental Category of Protection | RTIII |
| Insulation Initial Dielectric Between Open Contacts (Vrms) | 500 |
| Insulation Initial Dielectric Between Coil/Contact Class | 500 to 1000 V |
| Coil Resistance (Ω) | 700 |
| Contact Plating Material | Gold |
| Contact Limiting Short-Time Current (A) | 1 |
| Contact Switching Voltage (Max) | 125 VAC [ 60 VDC ] |
| Power Consumption (mW) | 200 |
| Coil Power Rating Class | 150 to 200 mW |
| Contact Voltage Rating | 120 VAC [ 24 VDC ] |
| Contact Current Rating (A) | 1 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

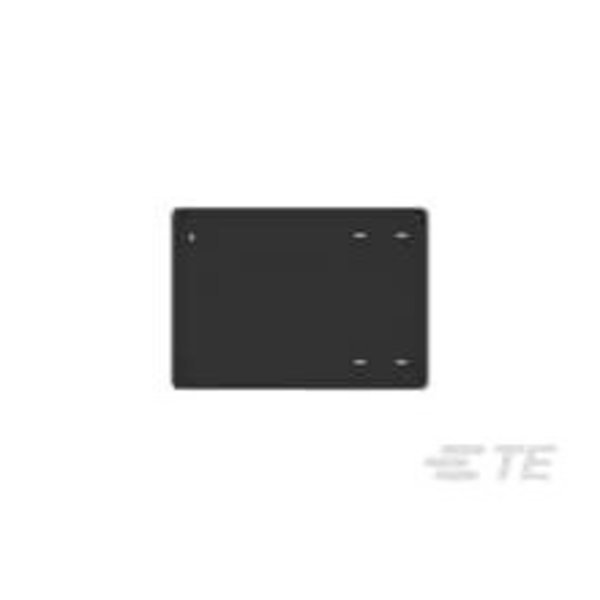

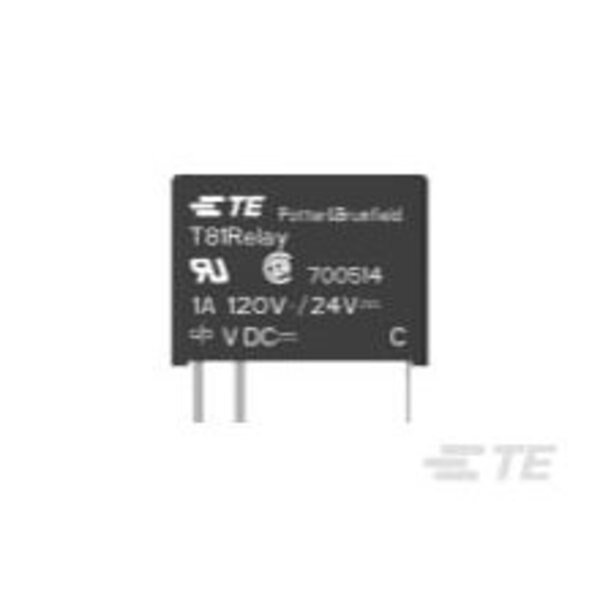

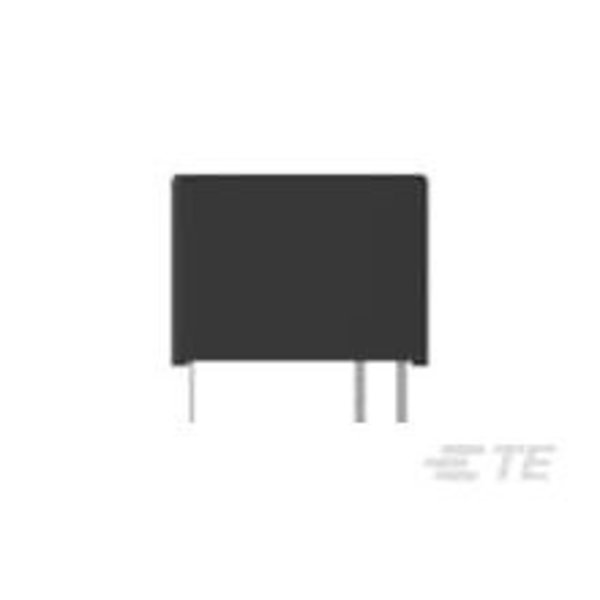

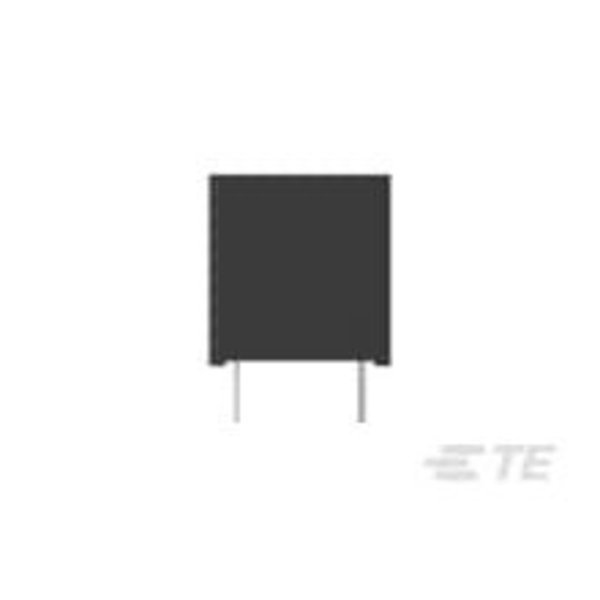

T81H5D312-12, Potter-Brumfield, Mfr#: T81H5D312-12
$2.99
Free shipping will be applied on orders over $50
Out of stock
