| Property | Value |
|---|---|
| Item | Fire Damper |
| Mounting Type | Static, Horizontal |
| Shape | Square |
| Includes | Stainless Steel Closure Spring, UL Fusible Link |
| Material | 22 ga Galvanized Steel |

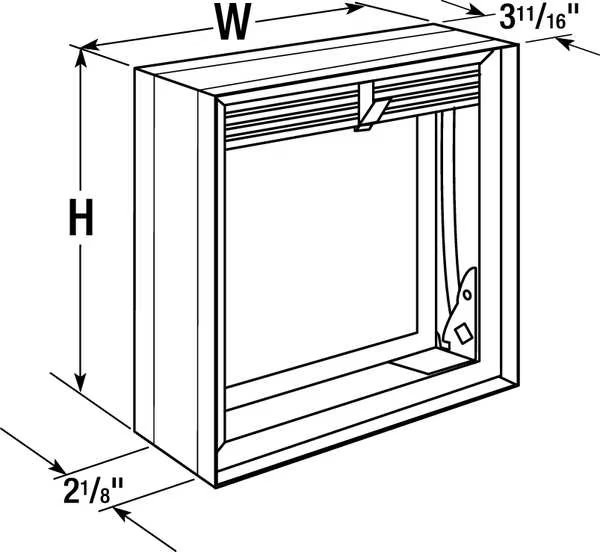

| Damper Depth | 3 11/16 in |
| For Use With | Low Pressure HVAC Systems |
| Damper Width | 15 3/4 in |
| Damper Height | 15 3/4 in |
| Standards | CSFM, IBC, NFPA 80, NFPA 90A,101, NYC MEA, UL 555 |
| Nominal Duct Width | 16 in |
| Damper Shape | Square |
| Recommended Retaining Angle | 2TGH7 |
| Fusible Link | 165 Degrees F |
| Fire Rated | 1 1/2 hr |
| Nominal Duct Height | 16 in |
| Damper Item | Fire Damper |
| Free Area | 1.3 sq ft |
| Rough Opening Width | 16 in |
| Overall Height | 13 3/4 in |
| Overall Width | 15 3/4 in |
| Frame/Blade Material | Galvanized Steel / Galvanized Steel |
| For Duct Shape | Square |
| Frame Material Thickness | 22 ga |
| Connection Type | Not Applicable |
| Blade Seal Material | Not Applicable |
| Mounting Position | Horizontal |
| Rough Opening Diameter | Not Applicable |
| Blade Orientation | Not Applicable |
| Damper Type | Static |
| Closure Velocity Rating | Not Applicable |
| Frame Less Flange | 256 sq in |
| Frame Material | Galvanized Steel |
| Switch Action | Normally Open |
| Closure Type | Spring |
| Rough Opening Shape | Square |
| Maximum Ambient Temperature | 165 Degrees F |
| Frame Depth | 3 3/4 in |
| Maximum Air Velocity | None |
| Number of Panels | 1 |
| Counterbalanced | Not Applicable |
| Maximum Pressure | Not Applicable |
| Flange Width | Not Applicable |
| Flange Type | Not Applicable |
| Blade Type | Curtain |
| Pressure Drop @ 1000 fpm (AMCA 5.2) | Not Applicable |
| Closure Pressure Rating | Not Applicable |
| Single Acting/Double Acting | Not Applicable |
| Damper Application | Fire |
| Rough Opening Length | Not Applicable |
| Fits Fan Diameter | Not Applicable |
| Blade Material | Galvanized Steel |
| Airflow Direction | Horizontal |
| ACMA Leakage Class | Not Applicable |
| Overall Length | 3 3/4 in |
| Seal Material | Not Applicable |
| Fusible Link Temperature | 165 Degrees F |
| For Fuel Type | Not Applicable |
| Mounting Style | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
Square Fire Damper, 15-3/4 In. W, DAYTON, Mfr# 2TGE2
$90.15
Free shipping will be applied on orders over $50
15.75 In.H-W 3.7 In.L Square Spring Fire Dampr, Damper Application Fire, Frame Material Galvanized Steel, Number of Panels 1, Maximum Air Velocity None, Overall Height 13 3/4 in, Rough Opening Diameter Not Applicable, Rough Opening Shape Square, Fits Fan Diameter Not Applicable, For Duct Shape Square, Free Area 1.3 sq ft, Overall Width 15 3/4 in, Frame Material Thickness 22 ga, Overall Length 3 3/4 in, Connection Type Not Applicable, Frame Depth 3 3/4 in, Rough Opening Length Not Applicable
Out of stock
