| Property | Value |
|---|---|
| Duty Rating | Heavy Duty |
| Finish - Hose Reels | Powder Coated |
| Hose Included | Yes |
| Hose Inside Dia. | 3/8 in |
| Hose Length | 50 ft |
| Housing Material | Steel |
| Max. Pressure | 300 psi |
| Media - Hose Reels | Air, Water |
| Mounting | Bench and Truck, Ceiling, Floor, Wall |
| Overall Length | 20 in |
| Overall Width | 9 in |
| Includes | Hose, Hose Stop |
| Hose Material | Rubber |
| Swivel Material | Brass |
| Drive Type - Hose Reels | Spring Return |
| Overall Height | 22 in |
| Hose Ends | 1/4 in (M)NPT x 1/4 in (F)NPT |
| Enclosed Reel | No |
| Bearings | Permanently Lubricated |
| Hose Outlet | 1/4 in NPT |
| Reel Inlet | 1/4 in (M)NPT |
| Latch | Locking |
| Item | Spring Return Hose Reel |
| Max. Temp. | 150 Degrees F |
| Drive Type | Spring Return |
| Width | 9 in |
| Features | Heavy Gauge Steel And Heavy Duty Rubber Air Hose |
| Height | 22 in |
| Length | 20 in |
| Reel Width | 8 1/8 in |
| Hose Outside Dia. | 5/8 in |
| Swivel Outlet Thread Size | 1/4 in - 18 |
| Hose Cover Material | Rubber |
| Corrosion-Resistant | Yes |
| Hose Fitting B Material | Brass |
| Reel Color | Red |
| Latch Type | Locking |
| Swivel Outlet Size | 1/4 in |
| Hose Color | Red |
| Hose Fitting B Size | 1/4 in |
| Bearing Construction | Permanently Lubricated |
| Fitting Type | NPT x NPT |
| Swivel Inlet Type | NPTF |
| Mounting Hole Center to Center Width | 2 63/64 in |
| Hose Fitting A Size | 1/4 in |
| Maximum Operating Temperature | 150 Degrees F |
| Maximum Operating Pressure | 300 psi |
| Mount Hole Diameter | 1/2 in |
| Hose Fitting B Type | NPT |
| Hose Fitting A Material | Brass |
| Swivel Outlet Type | NPTF |
| Number of Guide Arms | Single Arm |
| Mounting Hole Center to Center Height | 4 23/32 in |
| Overall Dimensions | 20 in L x 9 in W x 22 in H |
| Mount Base Height | 20 33/64 in |
| Reel Material | Steel |
| Hose Capacity | 50 ft (3/8 in I.D.) |
| Includes Leader Hose | No |
| Leader Hose Cover Material | PVC |
| Swivel Outlet Gender | Female |
| Reel Finish | Powder Coated |
| Includes Hose Stop | Yes |
| Weight | 38.93 lb |
| Swivel Inlet Gender | Female |
| Hose Tube Material | Rubber |
| Hose Fitting A Gender | Male |
| Hose Reel Primary Application | Air, Water |
| Enclosed | No |
| Swivel Inlet Size | 1/4 in |
| Fitting Size | 1/4 in x 1/4 in |
| Twin Hose Compatible | No |
| Pedestal Type | Single Pedestal |
| Hose Reel Type | Wall Mount Hose Reel |
| Spiral Hose Guard | No |
| Hose Fitting B Gender | Male |
| Reel Diameter | 18 9/16 in |
| Fasteners Included | No |
| Speed Limited Retraction | No |
| Hose Fitting A Type | NPT |
| Mount Base Width | 8 1/8 in |
| Includes Hose | Yes |
| Swivel Inlet Thread Size | 1/4 in - 18 |
| Base Motion Type | Swivel |
| Hose End Configuration | 1/4 in MNPT |
| Type | General Industrial, Low Pressure, Auto Retractable |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

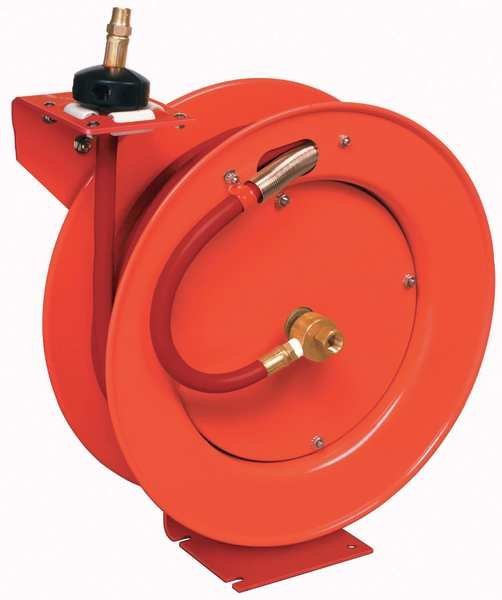

Spring Return Hose Reel, 3/8 in Hose Dia, 50 ft Length, 300 psi, LINCOLN, Mfr# 83753
$211.99
Free shipping will be applied on orders over $50
Spring Return Hose Reel, Air, Water, 300 psi, Hose Capacity 50 ft (3/8 in I.D.), Drive Type Spring Return, Enclosed No, Includes Hose Yes, Hose Inside Dia. 3/8 in, Hose Length 50 ft, Reel Material Steel, Mounting Location Bench, Ceiling, Wall, Speed Limited Retraction No, Overall Height 22 in, Overall Length 20 in, Overall Width 9 in, Corrosion-Resistant Yes, Hose Color Red, Hose Cover Material Rubber, Hose Fitting A Gender Male
Out of stock
