| Property | Value |
|---|---|
| Item | Speed Reducer |
| Nominal Ratio | 5:1 |
| Input RPM | 1,725 RPM |
| Bore Dia. | 1 1/8 in |
| Nominal Output RPM | 345 RPM |
| Number of Stages | 1 |
| Max. Output Torque | 1,301 in-lb |

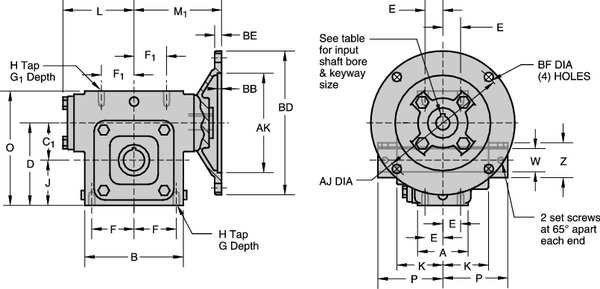

| Dimension A | 3.5 in |
| Reducer Model No. | E30MWSS |
| Dimension F | 2.75 in |
| Lubrication | Mobil Glygoyle(R) 460 |
| Output Torque @ 5 HP | 868 in-lb |
| Shaft Orientation | Right Angle |
| Dimension L | 4.63 in |
| Speed Reducer Type | C-Face |
| Output Torque @ 3 HP | 520 in-lb |
| Dimension G | 0.75 in |
| Dimension D | 6.5 in |
| Max. Input HP | 7.5 hp |
| Mounting | Universal |
| Output Shaft Dia. | 1 15/16 in |
| Dimension M | 5.56 in |
| Dimension C | 3 in |
| Overhung Load | 1,175 lb |
| Solid/Hollow Output Shaft | Hollow |
| Output Shaft Height | 3 1/2 in |
| Dimension H | 1/2-13 |
| Frame | 180TC |
| Worm Center Distance | 3 in |
| Finish | Epoxy Coating System |
| Dimension B | 6.62 in |
| Duty | Washdown |
| Output Torque @ 7.5 HP | 1,301 in-lb |
| Rotation | CW/CCW |
| Base to Center | 3.5 in |
| Motor Frame Designation | 180TC |
| Output Shaft Length | 3 1/2 in |
| Input Shaft Diameter | 1 1/8 in |
| Output Shaft Type | Hollow |
| Seal Material | Fluroelastomer |
| Maximum Input Speed | 1,725 RPM |
| Input Connection Type | C-Face |
| Gear Ratio | 5:1 |
| Mounting Orientation | Any Angle |
| Output Shaft Diameter | 1 15/16 in |
| Housing Material Finish | Epoxy Coating System |
| Maximum Output Speed | 345 RPM |
| Overhung Load Capacity | 1,175 ft-lb |
| Maximum Input Horsepower | 7.5 hp |
| Maximum Output Torque | 1301 in-lb |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
Speed Reducer, C-Face, 180TC, 5:1, WINSMITH, Mfr# E30MWSS, 5:1, 180TC
$1054.99
Free shipping will be applied on orders over $50
Speed Reducer, Input Connection Type C-Face, Output Shaft Type Hollow, Maximum Output Speed 345 RPM, Motor Frame Designation 180TC, Worm Center Distance 3 in, Base to Center 3.5 in, Gear Ratio 5:1, Rotation CW/CCW, Maximum Input Horsepower 7.5 hp, Maximum Output Torque 1301 in-lb, Overhung Load Capacity 1,175 ft-lb, Mounting Orientation Any Angle, Housing Material Finish Epoxy Coating System
Out of stock
