| Property | Value |
|---|---|
| Wire Range | 2 AWG |
| Insulation Type | Vinyl |
| Stud Size | 5/16 in |
| Insulation Color | Red |
| Item | Ring Terminal |
| Max. Voltage | 600V |
| Overall Length | 1.93 in |
| Tongue Width - Wire Connector | 0.68 in |
| Seam | Funnel |
| Standards | cULus Listed 587H E52164 |
| Connection Material | Copper |
| Features | Flame Retardant |
| Terminal Type | Ring Tongue |
| Max. Temp. | 221 Degrees F |
| Length | 1.9 |
| Finish | Tin-Plated |
| Width | 0.7 |
| Insulation Dia | 0.63 in |
| Connector Plating | Tin |
| Connector Details | 1 x Ring Terminal |
| Product Name | Terminal Connector |
| Product Color | Red |
| Product Material | Copper |
| Insulation Material | Vinyl |
| Product Type | Terminal Connector |
| Outside Diameter Inches | 0.63 in |
| Product Class | Wire Termination |
| Color Coding | Red |
| Max Operating Temperature | 105 degrees celsius |
| Barrel Type | Funnel Entry |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 200 |

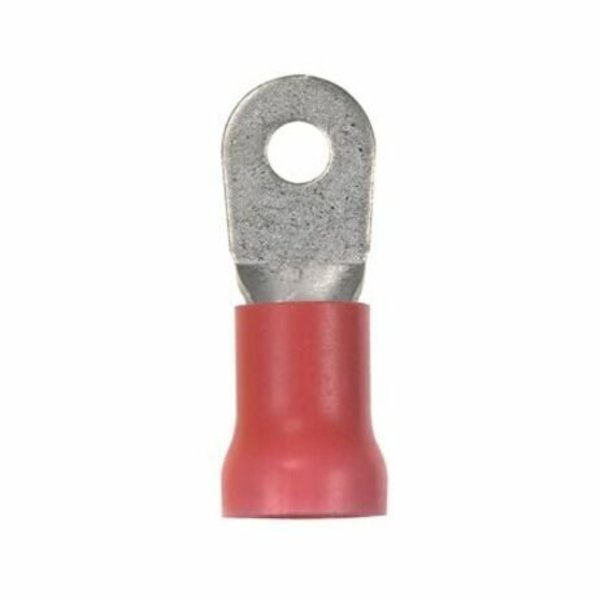

Ring Terminal, large wire, expanded viny, Panduit, Mfr#: PV2-56RX-TY
$563.99
Free shipping will be applied on orders over $50
Ring Terminal, large wire, expanded vinyl insulation, 2 AWG, 5/16" stud size
Out of stock
