| Property | Value |
|---|---|
| Item | Retention Knob |
| Knob Dia. | 0.905 |
| Flange to Angle Length | 0.4330 in |
| Flange to Knob Length | 0.629 in |
| Angle | 45 Degrees |
| Thread Size | M16 |
| Taper Size | BT40 |
| Flange Thickness | 12.4 mm |
| Overall Length | 38 mm |
| Shoulder Dia. | 23mm |
| Neck Dia. | 12.50mm |
| Coolant Through | No |
| Coolant Fed | Non-Coolant Through |
| Features | All Mating Surfaces Precision Ground, Hardened for Maximum Longevity |
| Angle Radius | 45 Degrees |
| Knob Outside Dia. | 0.9050 in |
| Material | Steel |
| Standards | ANSI |
| Knob Outside Diameter | 18.8 mm |
| Flange to Beginning of Knob Length | 11 mm |
| Coolant Hole Diameter | Not Applicable |
| Flange to End of Knob Length | 16 mm |
| Neck Diameter | 12.5 mm |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |

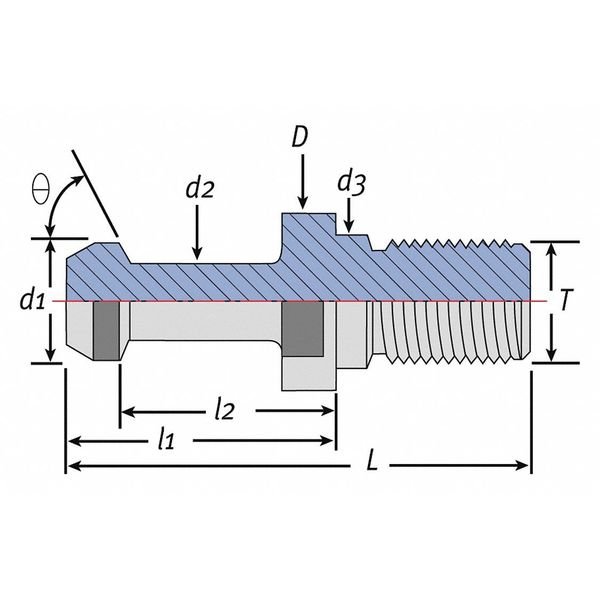

Retention Knob, 18.8mm, BT40, M16, 45 deg., Techniks, Mfr#: 17834
$29.69
Free shipping will be applied on orders over $50
Retention Knob, Taper Size BT40, Thread Size M16, Angle Radius 45 Degrees , Knob Outside Dia. 0.9050 in, Coolant Fed Non-Coolant Through, Features All Mating Surfaces Precision Ground, Hardened for Maximum Longevity
Out of stock
