| Property | Value |
|---|---|
| Item - Relay | PCB Relay |
| Coil Volts | 12V DC |
| Contact Form - Relay | 1 Form A (NO) |
| Power Consumption - Relay | 600 mW |
| Contact Material | AgNi90/10 |
| Number of Poles | 1 |
| Features | UL Coil Insulation Class F |
| Body Height - Relay | 0.618 in |
| Body Depth - Relay | 1.142 in |
| Body Width - Relay | 1/2 in |
| Contact Limiting Breaking Current | 16A |
| Terminal Type | PCB-THT |
| Contact Limiting Continuous Current | 20A |
| Contact Limiting Making Current | 30A |
| Contact Rating | 16A |
| Coil Resistance | 240 Ω |
| Switching Voltage | 400V AC |
| Dielectric Voltage | 5000 Vrms Coil and Contact; 1000 Vrms Open Contacts |
| Contact Voltage Rating | 250V AC |
| Mounting Type | Printed Circuit Board |
| Operating Temp. Range | 70 to 85°C |
| Coil Type | Bistable, 2 Coils |
| Insulation Clearance | 10 mm [ .394 in ] |
| Protection Category | RTII |
| Contact Limiting Short-Time Current | 16A |
| Insulation Creepage | 10 mm [ .394 in ] |
| Country of Origin (subject to change) | Austria |
| Package Quantity | 1 |

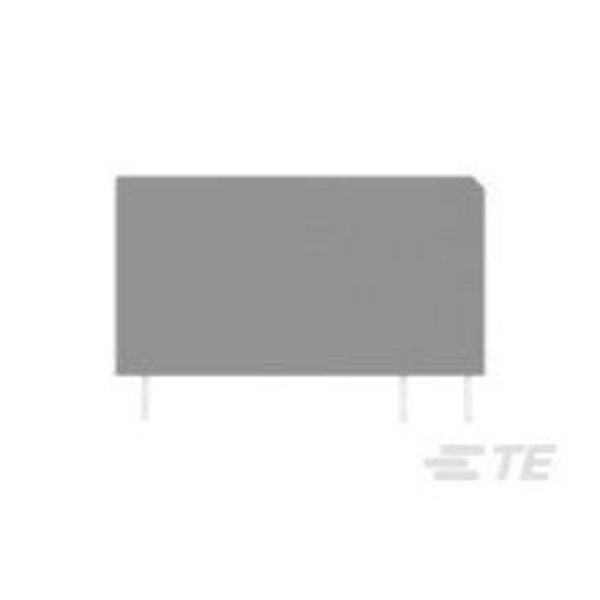

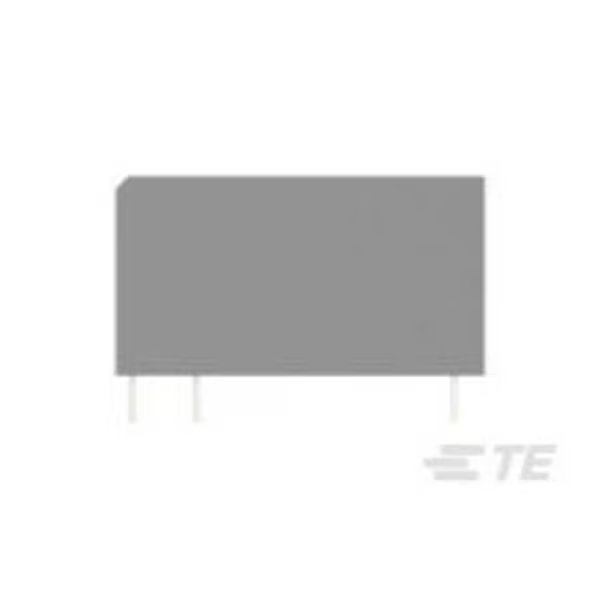

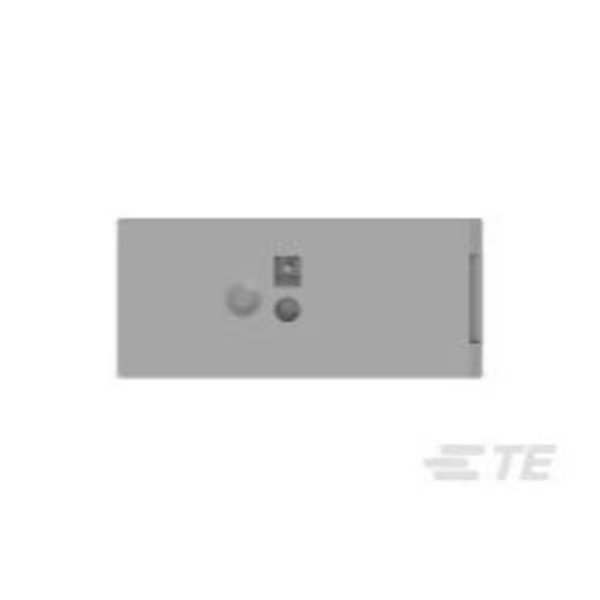

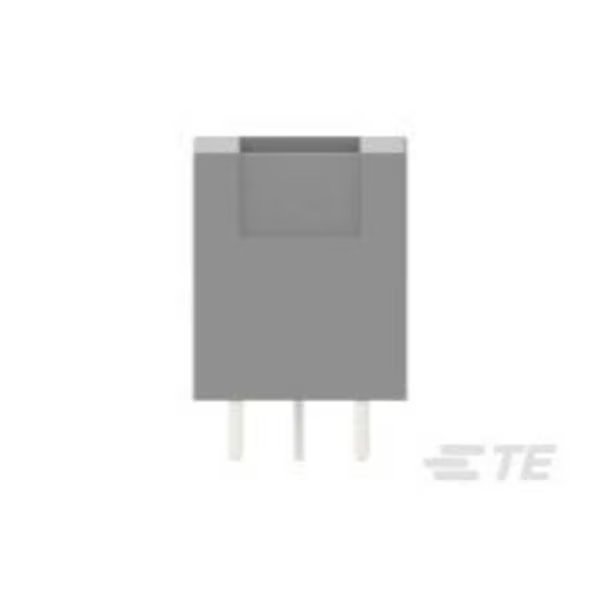

RT334F12, Te Connectivity, Mfr#: 3-1393240-9
$6.15
Free shipping will be applied on orders over $50
Out of stock
