| Property | Value |
|---|---|
| Item - Relay | PCB Relay |
| Coil Volts | 24V DC |
| Contact Form - Relay | 1 Form C (CO) |
| Power Consumption - Relay | 400 mW |
| Contact Material | AgNi90/10 |
| Body Height - Relay | 0.618 in |
| Number of Poles | 1 |
| Features | UL Coil Insulation Class F |
| Body Width - Relay | 1/2 in |
| Body Depth - Relay | 1.142 in |
| Contact Voltage Rating | 250V AC |
| Insulation Creepage | 10 mm [ .394 in ] |
| Insulation Clearance | 10 mm [ .394 in ] |
| Coil Type | Monostable, DC |
| Terminal Type | PCB-THT, Plug-In |
| Contact Limiting Breaking Current | 16A |
| Contact Limiting Short-Time Current | 16A |
| Contact Limiting Continuous Current | 16A |
| Dielectric Voltage | 5000 Vrms Coil and Contact; 1000 Vrms Open Contacts |
| Operating Temp. Range | 70 to 85°C |
| Coil Resistance | 1440 Ω |
| Contact Rating | 16A |
| Mounting Type | Printed Circuit Board, Socket |
| Protection Category | RTII |
| Switching Voltage | 400V AC |
| Contact Limiting Making Current | 30A |
| Country of Origin (subject to change) | Austria |
| Package Quantity | 1 |

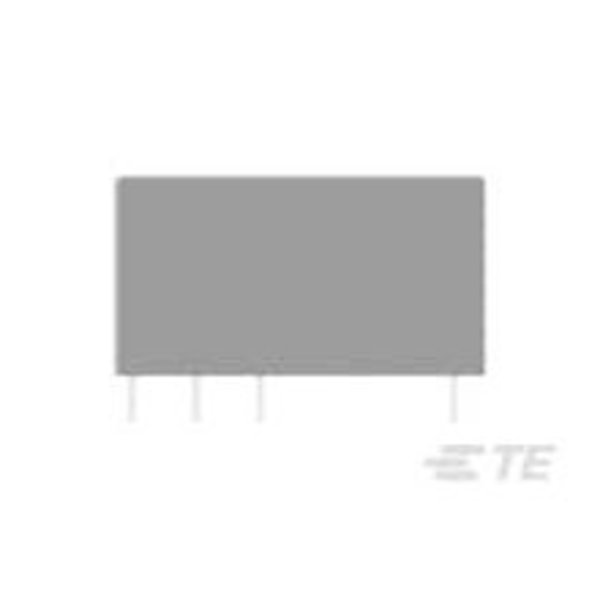

RT314024, Potter-Brumfield, Mfr#: RT314024
$3.95
Free shipping will be applied on orders over $50
Out of stock
