| Property | Value |
|---|---|
| Wire Size | 509 - 1900 CMA |
| Overall Length | .8 in |
| Terminal Type | Receptacle |
| Crimp Type | F-Crimp |
| Discrete Wire Type | Stranded |
| RU (UL Component Program) | Approved |
| Terminal Orientation | Straight |
| Mating Tab Thickness | .032 in |
| Receptacle Stock Thickness | .016 in |
| Operating Temperature Range | 105 °C |
| Fully Insulated | No |
| Plating Material | Pre-Tin |
| Mating Tab Width | .11 in |
| Barrel Color | Red |
| Voltage (Max) | 300 V |
| Insulation Material | Nylon |
| Insertion Force | Low |
| Wire Insulation Diameter (Max) | .135 in |
| Disconnect Type | Quick Disconnect Pin |
| Wire Insulation Support | With |
| Insulated | Yes |
| Terminates To | Wire u0026 Cable |
| CSA Certified | Yes |
| FASTON | Yes |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

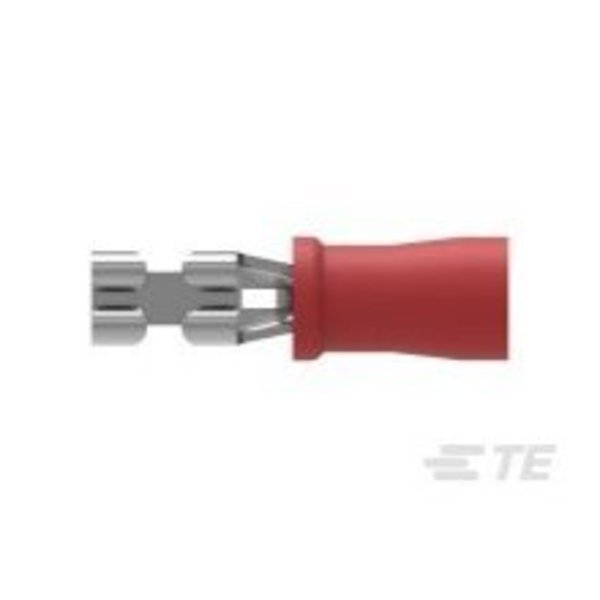

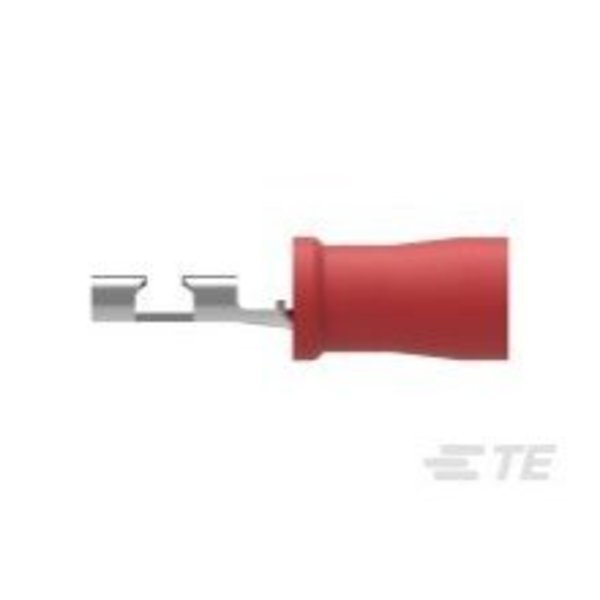

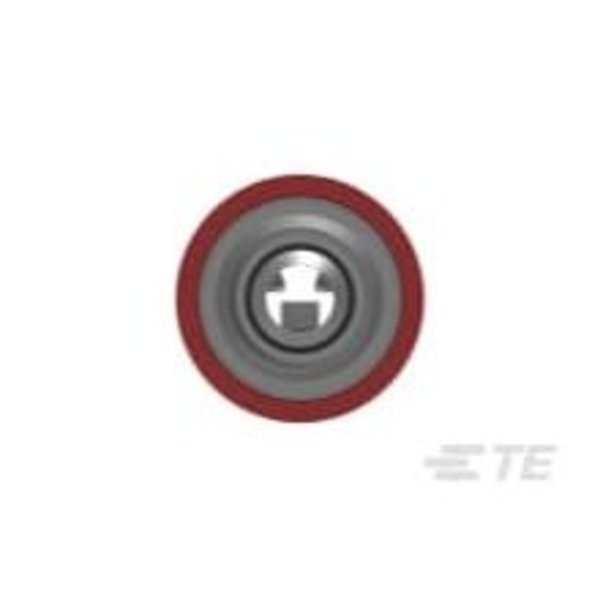

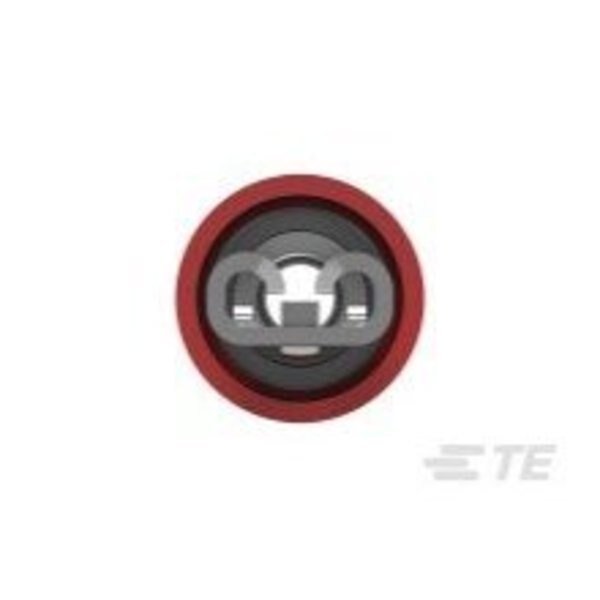

RECEPT PIDG FASTON 22-18 110, Te Connectivity, Mfr#: 640925-1
$0.52
Free shipping will be applied on orders over $50
Out of stock
