| Property | Value |
|---|---|
| Item | Profile Ball Rail |
| Overall Length | 820 mm |
| Type | 500 Series |
| Overall Width | 20 mm |
| Overall Height | 19 mm |
| Rail Material | Hardened Steel |
| Dimension G1 | 6.5 mm |
| Dimension Y1/Y2 | 20 mm |
| Dimension J1 | 19 mm |
| Dimension F2 | 10 mm |
| Thread Size | M5 |
| Dimension B1 | 20 mm |
| Number of Rail Holes | 14 |
| For Use With | 500 Series Ball Carriages |
| Rail Finish | Hardened Steel |
| Size | 20 |
| Dimension X | 60 mm |
| Dimension F1 | 5.8 mm |
| Dimension G2 | 11.5 mm |
| Mounting Hole from Shaft End | 20 mm |
| Agency Compliance | DIN 645-1 |
| Mounting Hole Center to Center | 60 mm |
| Mounting Hole Size | M5 |
| Screw Type | Hex Head |
| Temp. Range | -40 Degrees - 80 Degrees C, 120 Degrees C Max |
| Dimension S3 | M5 |
| Number of Mounting Holes | 14 |
| Rail Construction | Hardened Steel |
| Maximum Operating Temperature | 80 Degrees C |
| Minimum Operating Temperature | -40 Degrees C |
| Nominal Rail Size | 20 |
| (hidden) Product Assignment Builder - Brand + MPN | THOMSON 521H20A+820 |
| Series | 500 Series |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |

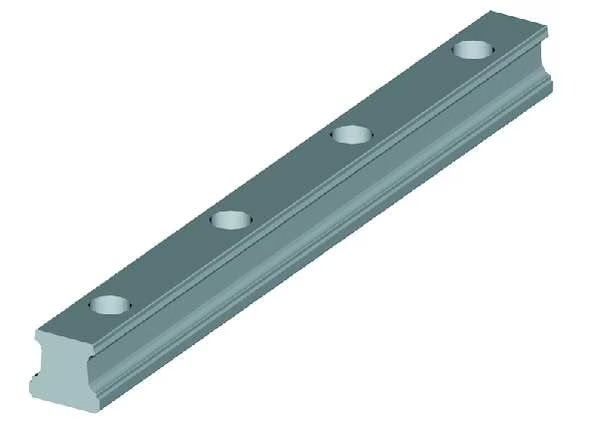

Profile Ball Rail, 820mm L, 20 W, 19 mm H, THOMSON, Mfr# 521H20A+820
$443.99
Free shipping will be applied on orders over $50
Profile Ball Rail, Overall Length 820 mm, Overall Width 20 mm, Overall Height 19 mm, Rail Material Hardened Steel, Agency Compliance DIN 645-1, Dimension B1 20 mm, Dimension F1 5.8 mm, Dimension F2 10 mm, Dimension G1 6.5 mm, Dimension G2 11.5 mm, Dimension J1 19 mm, Dimension S3 M5, Dimension X 60 mm, Dimension Y1/Y2 20 mm, For Use With 500 Series Ball Carriages, Includes -, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -40 Degrees C
Out of stock
