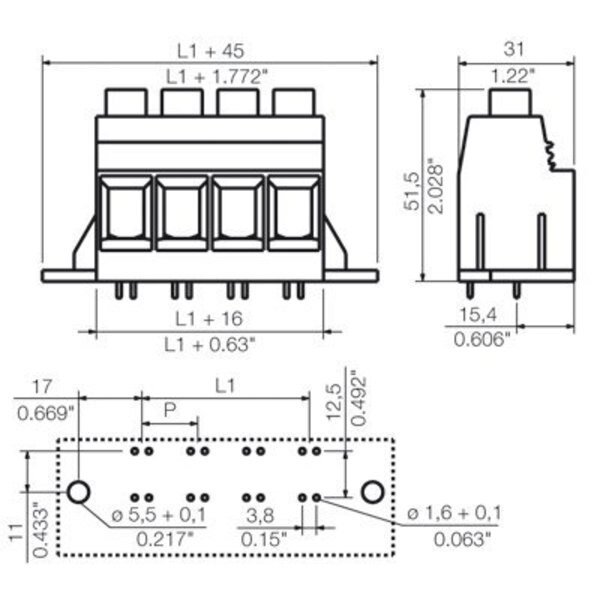

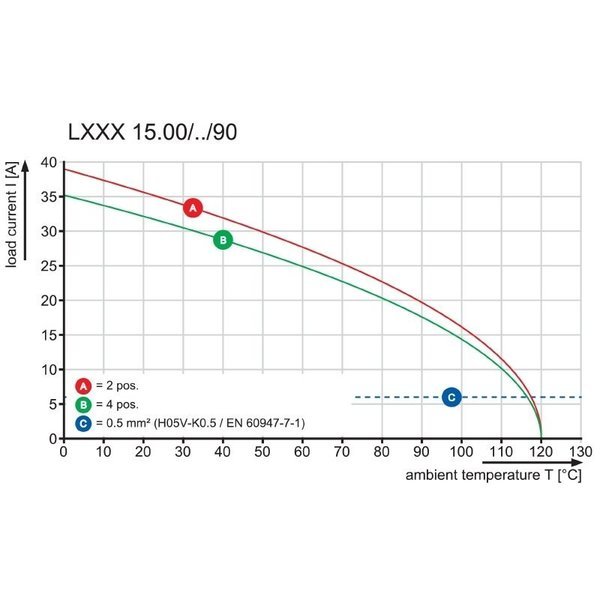

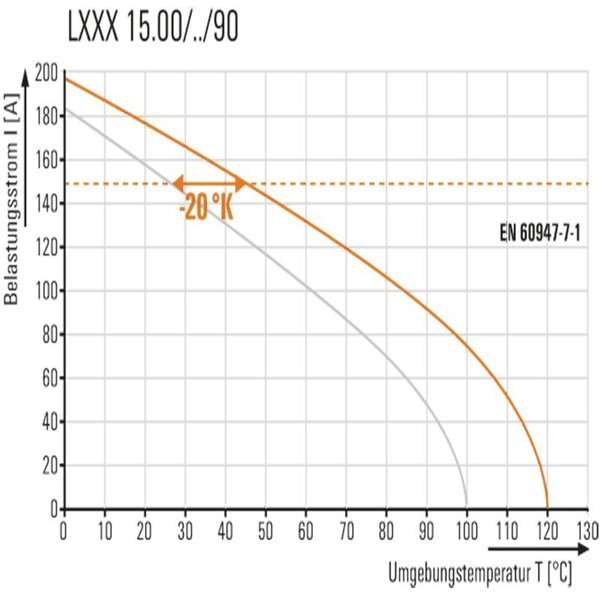

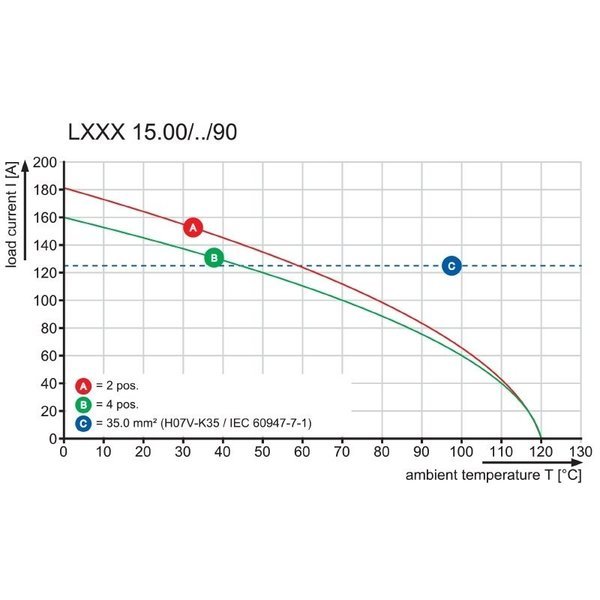

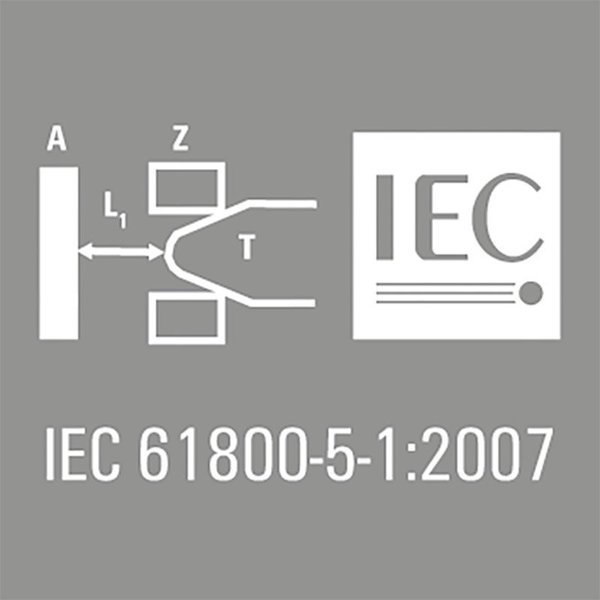

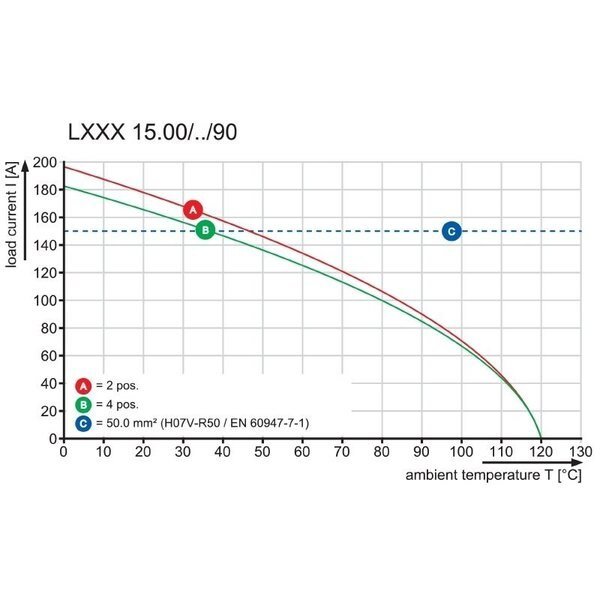

| Property | Value |
|---|---|
| Number of Poles | 5 |
| Width (inches) | 4.134 inch |
| Flexible, min. H05(07) V-K | 0.5 mm² |
| Solder eyelet hole diameter (D) | 1.6 mm |
| Temperature range, installation, min. | -25 °C |
| L1 in inches | 2.363 inch |
| Insulating material group | I |
| Rated current, min. number of poles (Tu=40°C) | 150 A |
| Stranded, min. H07V-R | 6 mm² |
| Clamping range, max. | 50 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max. | 35 mm² |
| Clamping range, min. | 0.5 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 0.5 mm² |
| Solid, min. H05(07) V-U | 0.5 mm² |
| Number of solder pins per pole | 4 |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Rated voltage (Use group D / CSA) | 600 V |
| Institute (UR) | UR |
| tested acc. to standard | IEC 60664-1, IEC 61984 |
| Storage temperature, max. | 55 °C |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 8 kV |
| Rated current (Use group B / CSA) | 127 A |
| Rated voltage for surge voltage class / pollution degree III/2 | 1,000 V |
| Layer structure of solder connection | 1.5-3µm Ni / 4-6µm Sn matt |
| UL 94 flammability rating | V-0 |
| Rated current (Use group C / CSA) | 127 A |
| Insulation strength | ≥108 Ω |
| Height (inches) | 2.205 inch |
| Rated current (Use group D / CSA) | 5 A |
| Mounting onto the PCB | THT solder connection |
| Rated voltage for surge voltage class / pollution degree III/3 | 1,000 V |
| Rated voltage (Use group B / CSA) | 600 V |
| Approvals | EAC, UR |
| Stranded, max. H07V-R | 50 mm² |
| Stripping length | 18 mm |
| GWIT | 960 °C |
| Contact surface | tinned |
| Tightening torque, min. | 2.5 Nm |
| Wire connection method | Clamping yoke connection |
| Pitch in inches (P) | 0.591 inch |
| Conductor outlet direction | 90° |
| Tightening torque, max. | 4 Nm |
| Screwdriver blade standard | DIN 5264 |
| Clamping screw | M 6 |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 35 mm² |
| Storage temperature, min. | -25 °C |
| VPE width | 135 mm |
| Certificate No. (UR) | E60693 |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 8 kV |
| Operating temperature, min. | -50 °C |
| Screwdriver blade | 1.2 x 6.5 |
| Comparative Tracking Index (CTI) | ≥600 |
| GWFI | 960 °C |
| Depth (inches) | 1.22 inch |
| Temperature range, installation, max. | 120 °C |
| Rated voltage (Use group C / CSA) | 600 V |
| Number of Rows | 1 |
| Wire connection cross section AWG, min. | AWG 20 |
| Solder pin length (l) | 4.5 mm |
| UL File Number Search | E60693 |
| Colour chart (similar) | RAL 9011 |
| Colour | black |
| Solder pin dimensions | 1.2 x 1.2 mm |
| VPE length | 60 mm |
| w. wire end ferrule, DIN 46228 pt 1, min. | 0.5 mm² |
| Height of lowest version | 51.5 mm |
| Rated voltage for surge voltage class / pollution degree II/2 | 1,000 V |
| Operating temperature, max. | 120 °C |
| Max. relative humidity during storage | 80 % |
| Rated current (Use group C / UL 1059) | 126 A |
| Rated voltage (Use group C / UL 1059) | 600 V |
| Rated current, min. number of poles (Tu=20°C) | 150 A |
| Rated current (Use group B / UL 1059) | 126 A |
| Wire cross-section, AWG, min. | AWG 20 |
| Solid, max. H05(07) V-U | 16 mm² |
| Flexible, max. H05(07) V-K | 35 mm² |
| VPE height | 355 mm |
| Wire connection cross section AWG, max. | AWG 1 |
| Wire cross-section, AWG, max. | AWG 1 |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 8 kV |
| Max. clamping range | 50 mm² |
| Rated voltage (Use group B / UL 1059) | 600 V |
| Contact material | Copper alloy |
| Insulating material | Wemid (PA) |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
Pluggable Terminal Blocks Lxxx 15.00/05/90F 4.5Sn Bk Bx, Weidmuller, Mfr#: 1386290000
$8.49
Free shipping will be applied on orders over $50
Out of stock
