| Property | Value |
|---|---|
| Bearing Insert Type | Radial Ball |
| Bore Dia. | 1 in |
| Shaft Locking Type | Set Screws |
| Bearing Housing Material Type | Zinc Die Cast |
| Bearing Insert Material | Alloy Steel |
| Bolt Hole Center-to-Center | 3 5/8 in |
| Mounting Surface to Shaft Center | 1 1/4 in |
| Series | PBDC-BL |
| Number of Bolts | 2 |
| Locking Type | Set Screw |
| Includes | (2) Set Screws |
| Temp. Range | -30 Degrees to 200 Degrees F |
| Overall Length | 4.625 in |

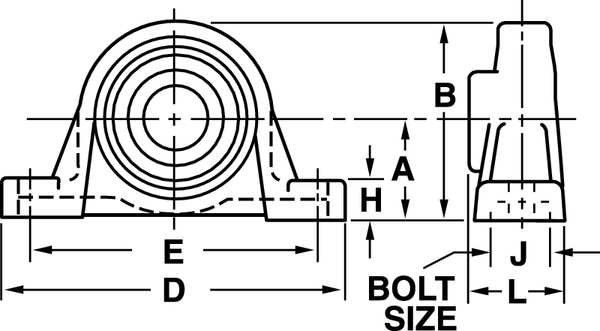

| Dimension L | 1 3/8 in |
| Finish | None |
| Overall Width | 1.375 in |
| Housing Material | Zinc Die Cast |
| Bearing Locking Type | Set Screw |
| Dimension G | 1 3/8 in |
| Dimension D | 4 5/8 in |
| Overall Height | 2.5 in |
| Dimension C | 4 5/8 in |
| Dimension B | 2 1/2 in |
| Dimension J | 3/8 in |
| Dynamic Load Capacity | 3,153 lb |
| Dimension E | 3 5/8 in |
| Dimension H | 1/2 in |
| Dimension F | 1/2 in |
| Static Load Capacity | 1,768 lb |
| Bolt Size | 3/8 in |
| Item | Pillow Block Bearing |
| Max. Speed | 3,500 RPM |
| Dimension A | 1 1/4 in |
| Seal Material | Buna-N |
| Center Height | 1.25 in |
| Closure | Double Sealed |
| Mounting Bolt Size | 3/8 in |
| Dynamic Radial Load Capacity | 1,768 lbf |
| Bore Diameter Tolerance | -0.000/+0.003 in |
| Resistance Properties | Corrosion Resistant |
| Mount Type | Bolt-Through |
| Lubricant Material | NGLI #2 Equivalent |
| Maximum Speed | 3,500 RPM |
| Static Radial Load Capacity | 3,153 lbf |
| Number of Mount Holes | 2 |
| Mount Hole Center-to-Center Length | 3 5/8 in |
| Bearing Material Grade | 52100 |
| Housing Material Finish | Zinc Plated |
| Minimum Temperature | -30 Degrees F |
| Maximum Temperature | 200 Degrees F |
| Bore Diameter | 1 in |
| Base Height | 0.5 in |
| System of Measurement | Inch |
| Bore Type | Cylindrical |
| Features | Pre-Lubricated and Made to ABEC-1 Tolerance, Housing Retains Bearing Securely by Pressing the Lip 360 Degrees Over the Outer Race, Ideal for Applications Requiring Strong Load Support in Limited Mounting Areas, Neoprene Seal Keeps Contaminants Out Allowing for Usage in Wet or Dry Conditions, Solid Zinc Die Cast Housing is Non-Corrosive and Lightweight, Wide Inner Race Locks Securely to the Shaft with Two Set Screws |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
Pillow Block Bearing, Ball, 1" Bore, DAYTON, Mfr# 4X726
$37.39
Free shipping will be applied on orders over $50
Pillow Block Bearing, Base Height 0.5 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 1.25 in, Closure Double Sealed, Housing Material Zinc Die Cast, Lubricant Material NGLI #2 Equivalent, Maximum Speed 3,500 RPM, Maximum Temperature 200 Degrees F, Minimum Temperature -30 Degrees F, Mount Hole Center-to-Center Length 3 5/8 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 2.5 in
