| Property | Value |
|---|---|
| Bearing Insert Type | Tapered Roller |
| Bore Dia. | 7 in |
| Shaft Locking Type | Set Screws |
| Bearing Housing Material Type | Cast Iron |
| Bearing Insert Material | Alloy Steel |
| Bolt Hole Center-to-Center | 22 1/4 in |
| Mounting Surface to Shaft Center | 7 1/2 in |
| Number of Bolts | 4 |
| Dimension J | 15 in |
| Temp. Range | -40 Degrees to 250 Degrees F |
| Max. Speed | 750 RPM |
| Overall Height | 15 in |
| Includes | Timken Type E Tapered Roller Bearing |
| Housing Material | Cast Iron |
| Dimension L | 10 1/2 in |
| Overall Length | 26 in |
| Dimension H | 3 11/16 in |
| Dimension G | 2 1/8 in |
| Dimension B | 26 in |
| Overall Width | 10.5 in |
| Bolt Size | 1 in |
| Dimension D | 22 1/4 in |
| Static Load Capacity | 574,000 lb |
| Item | Pillow Block Bearing |
| Dimension F | 1 in |
| Dimension C | 7 1/8 in |
| Dynamic Load Capacity | 574,000 lb |
| Dimension M | 7 1/2 in |
| Bearing Lubrication | Timken Lithium Complex Grease |
| Dimension A | 10 1/2 in |
| Dynamic Axial Load Capacity | 574,000 lbf |
| Mount Hole Size | 2 1/8 in |
| Center Height | 7.5 in |
| Bore Type | Cylindrical |
| Static Radial Load Capacity | 574,000 lbf |
| Bearing Material Grade | 52100 |
| Seal Type | Contact |
| Included Bearing | Timken Type E Tapered Roller |
| Lubricant Material | Lithium Complex Grease |
| Number of Mount Holes | 4 |
| Bore Diameter | 7 in |
| Base Height | 3.69 in |
| Minimum Temperature | -40 Degrees F |
| Mount Type | Bolt-Through |
| Mounting Bolt Size | 1 in |
| Features | Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Built with Timken (TM) Enhanced Dee Tapered Roller Bearings with the Highest Industry Load Ratings, Double-Extended Inner Race, Case Hardened Rollers and Races, Close Fit Oversized Collars Act as Flingers for Additional Protection in Dusty or Damp Environments, Dimensionally Interchangeable with Comparable Type E Units, Moline Split E1000, Moline ME2000 and ME3000, Extended Inner Race has Two Locking Collars with 65 Degrees Set Screw Spacing, Misalignment = .010 in Per Foot of Shaft, Standard V-Guard(TM) Nitrile and Teflon Contact Seal or Balanced Labyrinth Seal, Timken(TM) Lithium Complex Grease Operating Temperature is up to 250 Degrees , High Temperature Grease is Available up to 350 Degrees |
| Load Direction | Radial, Thrust |
| System of Measurement | Inch |
| Mount Hole Center-to-Center Width | 4 5/8 in |
| Expansion Type | Expansion |
| Mount Hole Center-to-Center Length | 22.25 in |
| Base Width | 7.13 in |
| Application | Aggregate, Conveying, Cranes, Forestry, Mining, Oil, Gas, Power Generation, Screening |
| Maximum Temperature | 250 Degrees F |
| Maximum Speed | 750 RPM |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

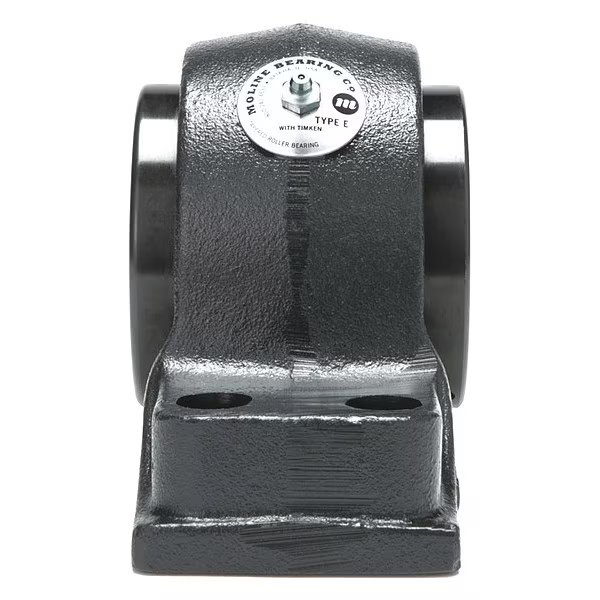

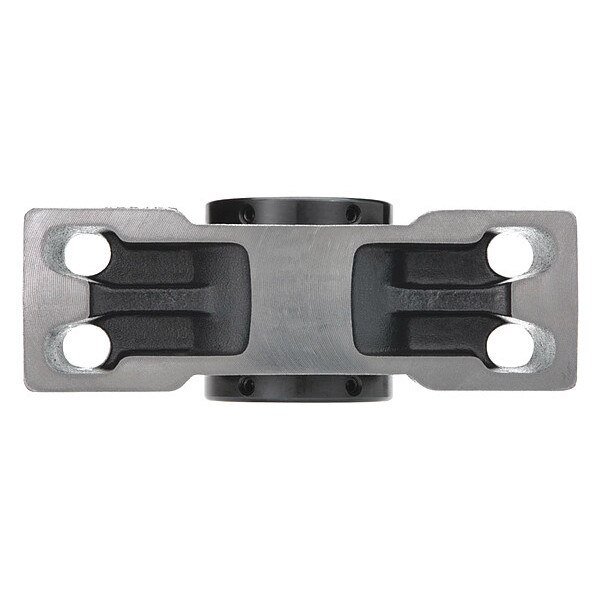

Pillow Block Bearing, 7 in Bore, Cast Iron, MOLINE BEARING, Mfr# 19341700
$8559.99
Free shipping will be applied on orders over $50
Pillow Block Bearing, Base Height 3.69 in, Base Width 7.13 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Tapered Roller, Bore Diameter 7 in, Bore Type Cylindrical, Center Height 7.5 in, Expansion Type Expansion, Housing Material Cast Iron, Included Bearing Timken Type E Tapered Roller, Lubricant Material Lithium Complex Grease, Maximum Speed 750 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Length 22.25 in
