| Property | Value |
|---|---|
| Item | Compact Magnetic Motor Starter |
| Overload Relay Amp Setting | 0.4 to 2.0 |
| Coil Volts | 110 to 240V AC/DC |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | 1NO/1NC |
| HP @ 3 Phase - 240V | 1/3 hp |
| Action | Nonreversing |
| Amps AC | 2.0 A |
| NEMA Size | Not Applicable |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 3/4 hp |
| Height | 3.94 in |
| Hz | 50/60 |
| Depth | 5.57 in |
| Standards | CCC, CE, CSA, EAC, RCM, UL Listed |
| HP @ 3 Phase - 208V | 1/3 hp |
| Width | 0.89 in |
| Features | Mixed Connection |
| Accessory Group | Auxiliary Contacts, Manual Starter Accessory |
| Thermal Unit Code | Not Applicable |
| Horsepower @ Single Phase - 240V AC | 1/8 hp |
| Maximum Operating Temperature | 140 Degrees F |
| IP Rating | IP20 |
| Response Time | 60 to 90 msec (ON-Delay Time), 60 to 90 msec (OFF-Delay Time) |
| Current AC | 2 A |
| Reversing Capability | Non-Reversing |
| Horsepower @ Three Phase - 240V AC | 33/100 hp |
| Maximum Voltage Rating | 480V AC |
| Frequency | 50/60 Hz |
| Coil Voltage | 110-230V AC |
| Number of Auxillary Contacts | 2 |
| Maximum Overload Relay Current Setting | 2 A |
| Starter Style | IEC |
| NEMA Enclosure Rating | No Enclosure |
| Includes Pilot Light | Yes |
| Mounting Postion | Horizontal, Vertical |
| Overall Width | 0.89 in |
| Mounting Style | DIN Rail |
| Includes Auxiliary Contacts | Yes |
| Overall Depth | 5.57 in |
| Mechanical Operating Durability | 30,000,000 |
| Horsepower @ Three Phase - 480V AC | 3/4 hp |
| Trip Class | 10A |
| Terminal Connection Type | Screw Terminals |
| Minimum Operating Temperature | -13 Degrees F |
| Overload Protection Type | Electronic |
| Minimum Overload Relay Current Setting | 0.4 A |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Series | 3RM1 |
| Horsepower @ Three Phase - 208V AC | 1/3 hp |
| Overall Height | 6.58 in |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |

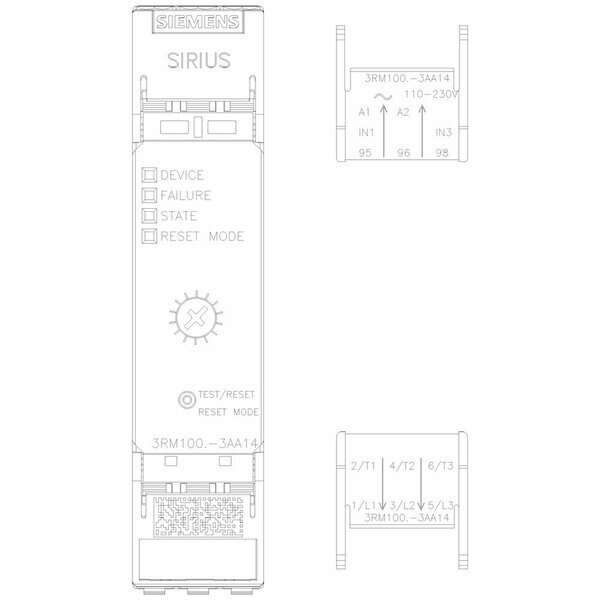

Nonreversing Compact Magnetic Motor Starter, No Enclosure NEMA Rating, 110 to 240V AC/DC, 3 Poles, Siemens, Mfr#: 3RM10023AA14
$207.99
Free shipping will be applied on orders over $50
Compact Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 2 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 0.4 A, Trip Class 10A, Series 3RM1, Number of Poles 3, Number of Auxillary Contacts 2, Mounting Style DIN Rail, Auxiliary Contact Form 1NO/1NC, Starter Style IEC, Reversing Capability Non-Reversing, Maximum Voltage Rating 480V AC, Coil Voltage 110-230V AC, Horsepower @ Three Phase - 240V AC 33/100 hp
