| Property | Value |
|---|---|
| Item | Safety Switch |
| Protection Method | Non-Fusible |
| Voltage | 600V AC/DC |
| Number of Poles | 3 |
| Phase | Three |
| Contact Form | 3PST |
| IP Rating | IP52 |
| Duty | Heavy Duty |
| Height | 14 1/2 in |
| Number of Wires | 4 |
| Depth | 5 1/4 in |
| Width | 6 1/2 in |
| Includes | Dual Cover Interlock |
| Standards | EU RoHS, UL listed file E2875 |
| Neutral Assembly Included | Yes |
| Housing Material | Galvannealed Steel |
| Mounting Style | Surface Mount |
| Series | F |
| Environment | Indoor |
| Number of Mounting Holes | 4 |
| Horsepower @ 480V AC | 20 hp |
| Maximum Enclosure Depth | 5.24 in |
| Fuse Kit (Class R) | Mfr. No. RFK03H, Mfr. No. RFK06 |
| NEMA Enclosure Rating | 12 |
| For Fuse Class | Not Applicable |
| Current Rating | 30 A |
| Horsepower @ 600V AC | 30 hp |
| Enclosure Type | Enclosed |
| Features | Quick Make/Break Operating Mechanism, Viewing Window |
| Compatible with Manufacturer Model Number | RFK03H, RFK06 |
| Number of Locks | 2 |
| Includes Interlocked Receptacle | Yes |
| Horsepower @ 240V AC | Not Rated |
| Handle Color | Black/Red |
| Compatible with Manufacturer Model Number [NEW] | RFK03H, RFK06 |
| Compatible Manufacturer Part Number | RFK03H, RFK06 |
| Compatible Manufacturer Model Number | RFK03H, RFK06 |
| For Use with Mfr. Model Number | RFK03H, RFK06 |
| For Use With Mfr. Model Number | RFK03H, RFK06 |
| Awg Gauge | AWG 12...AWG 6 aluminium || AWG 14...AWG 6 copper |
| Line Rated Current | 30 A |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Electrical Connection | lugs |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Device Mounting | surface |
| Condition Of Use | suitable service entrancefor USA || suitable service entrancefor Mexico |
| Disconnector Device Type | non-fusible disconnect |
| Wiring Configuration | 4-wire (3PH + N) |
| Device Application | heavy application |
| Product Certifications | UL listed file E2875 |
| Device Composition | neutral (factory installed) |
| Nema Degree Of Protection | NEMA 12 galvannealed steel |
| Tightening Torque | 45-45 lbf.in 13.3-13.3 mm² (AWG 6) || 40-40 lbf.in 8.367-8.367 mm² (AWG 8) || 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10) |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

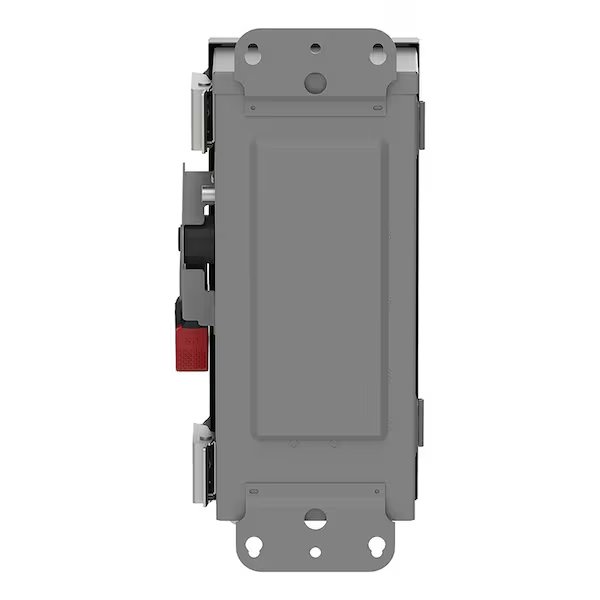

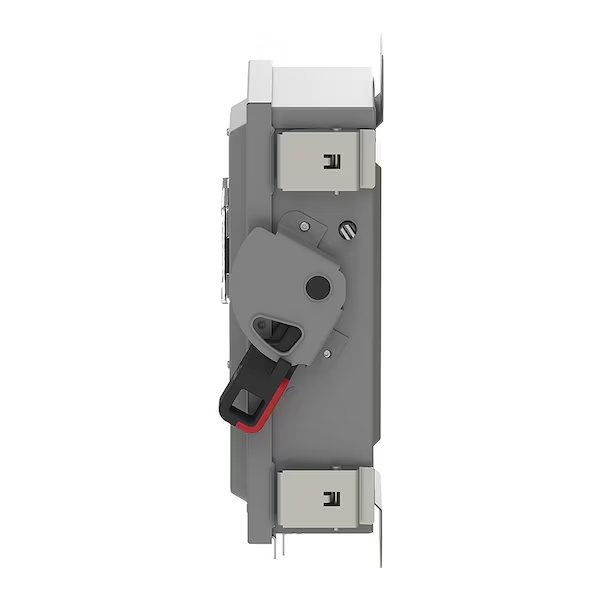

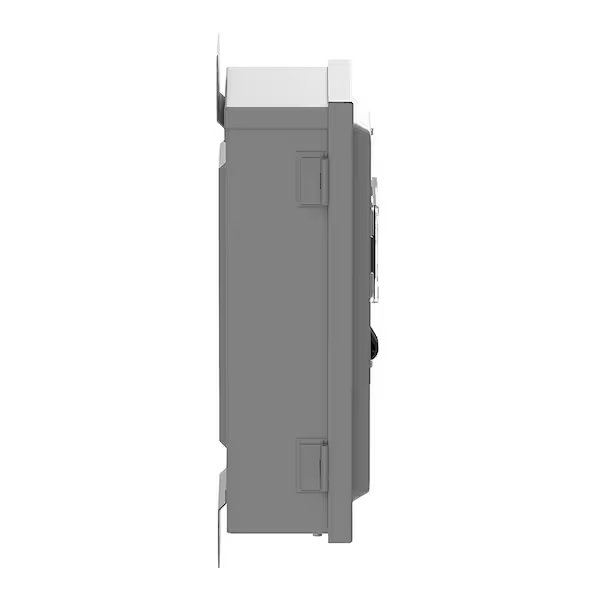

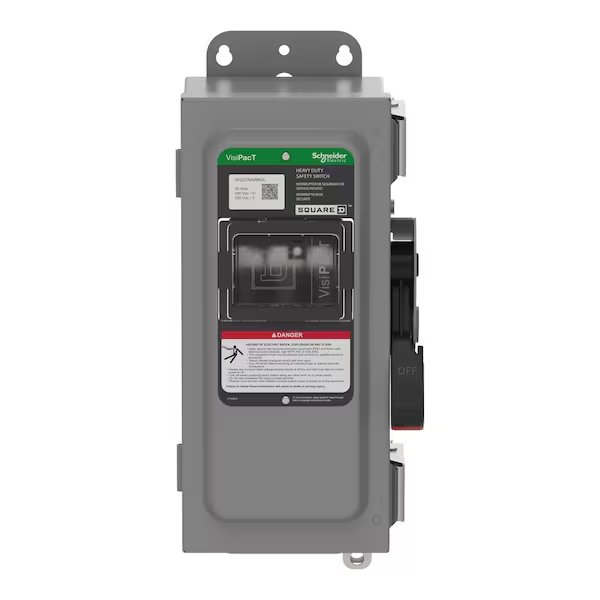

Non-Fusible Safety Switch, 600V AC/DC, 3 pole, Schneider Electric, Mfr#: VHU361NAWKGL
$657.61
Free shipping will be applied on orders over $50
Safety Switch, Compatible with Manufacturer Model Number RFK03H, RFK06, Contact Form 3PST, Current Rating 30 A, Depth 5 1/4 in, Duty Heavy Duty, Enclosure Type Enclosed, Environment Indoor, Features Quick Make/Break Operating Mechanism, Viewing Window, For Fuse Class Not Applicable, Fuse Kit (Class R) Mfr. No. RFK03H, Mfr. No. RFK06, Handle Color Black/Red, Height 14 1/2 in, Horsepower @ 240V AC Not Rated, Horsepower @ 480V AC 20 hp, Horsepower @ 600V AC 30 hp
Out of stock
