| Property | Value |
|---|---|
| Item | Miniature Snap Action Switch |
| Actuator Type - Snap Action Switch | Lever, Long |
| AC Contact Rating - Snap Action Switch | 15.1 A 1/2 HP 125 V, 250 V or 277 V |
| DC Contact Rating - Snap Action Switch | 1 /2A 125 V; 1/4 A 250 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | 1.29 in |
| Height - Snap Action Switch | 0.63 in |
| Width - Snap Action Switch | 1.14 in |
| Depth - Snap Action Switch | 0.4 in |
| Length | 1.14 |
| Operating Temp. Range | -40 Degrees C to 85 Degrees C [-40 Degrees F to 185 Degrees F], options for 175 Degrees C [347 Degrees F] |
| Max. Pretravel | 7.34 mm |
| Housing Material | PCT Polyester Thermoplastic |
| Electrical Connection - Snap Action Switch | 3/16 in Quick Connect |
| Type of Actuator | Long Straight Lever |
| Mounting Dimension | 0.41 x 0.87 |
| Standards | CSA, ENEC, RoHS, UL Listed |
| Operating Force | 0.912N |
| Current Rating | 15A |
| Series | V7 |
| Depth | 0.4 |
| Actuator Length | 1.29 |
| Release Force | 0.56 ozf |
| Over Travel | 2.4 mm |
| Differential Travel | 0.102 in |
| Voltage Rating | 250VAC |
| Contact Form | 1NO/1NC |
| Mounting Dimension - Snap Action Switch | 0.87 in Centers |
| Height | 0.63 |
| Watertight - Snap Action Switch | No |
| Terminal Type | Quick Connect |
| DC Contact Rating | 0.25 A @ 250 V, 0.5 A @ 125 V |
| AC Contact Rating | 15 A @ 250 V |
| Roller Position | Not Applicable |
| Overall Depth | 0.4 in |
| Overall Width | 1.14 in |
| Operating Force - Minimum | Not Applicable |
| Body Depth | 0.4 in |
| Roller Diameter | Not Applicable |
| Differential Travel - Minimum | Not Applicable |
| Roller Material | Not Applicable |
| Roller Adjustability | Not Applicable |
| Operating Temperature - Maximum | 365 Degrees F |
| Body Height | 0.63 in |
| Mounting Hole Diameter | 1/8 in |
| Body Width | 1.14 in |
| Overall Height | 0.63 in |
| Pretravel | 0.3 in |
| Electrical Connection | Quick Connect |
| Operating Force - Maximum | 0.91 ozf |
| Center Mounting Hole Distance | 0.88 in |
| Lever Actuator Length | 1.29 in |
| Differential Travel - Maximum | 0.102 in |
| Operating Temperature - Minimum | -40 Degrees F |
| Body Material | Polyester |
| Overtravel | 0.094 in |
| Actuator Style | Lever |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

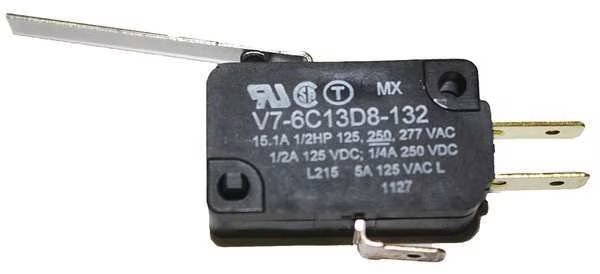

Miniature Snap Action Switch, Lever, Long Actuator, SPDT, 15A @ 240V AC Contact Rating, Honeywell, Mfr#: V7-6C13D8-132
$8.15
Free shipping will be applied on orders over $50
Miniature Snap Action Switch, Lever, Long, AC Contact Rating - Snap Action Switch 15.1 A 1/2 HP 125 V, 250 V or 277 V, DC Contact Rating - Snap Action Switch 1 /2A 125 V; 1/4 A 250 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.29 in, Height - Snap Action Switch 0.63 in, Width - Snap Action Switch 1.14 in, Depth - Snap Action Switch 0.4 in, Electrical Connection - Snap Action Switch 3/16 in Quick Connect, Mounting Dimension - Snap Action Switch 0.87 in Centers
Out of stock
