| Property | Value |
|---|---|
| Item | Miniature Circuit Breaker |
| Series | BL |
| Amps | 35A |
| Number of Poles | 3 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Shunt Trip |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 10kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Lug |
| Frame Size | 125A/BL |
| Width | 4 in |
| Depth | 6 in |
| Height | 4 in |
| DC Voltage Rating | Not Rated |
| Standards | UL 489 |
| For Use With | Siemens P1 Panelboards |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Max. Wire Size | 6 AWG |
| Application | Electrical Distribution |
| Features | Shunt Trip 120V |
| Compatible Panelboard/Load Center Series | P1 |
| Length (Straight Wireway) | 4.0 in |
| Length | 4 in |
| Voltage | 240VAC |
| Mounting | Bolt on |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

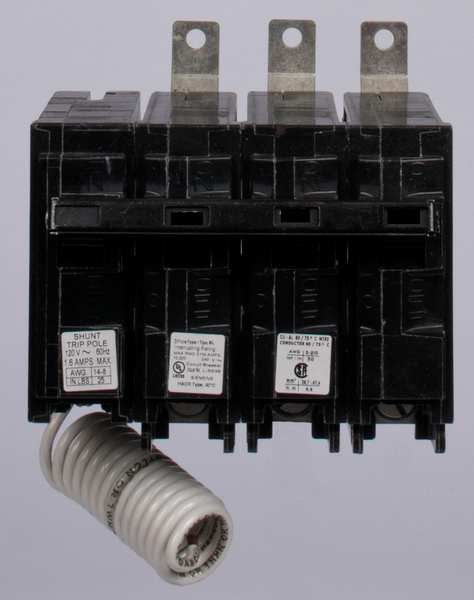

Miniature Circuit Breaker, BL Series, 35A, 3 Pole, 120/240V AC, 10kA at 240V AC, Siemens, Mfr#: B33500S01
$499.99
Free shipping will be applied on orders over $50
Miniature Circuit Breaker, Amps 35 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Shunt Trip, Number of Poles 3, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series P1, Phase Three, Series BL, Max. AIR Rating 10kA at 240V AC, For Use With Siemens P1 Panelboards, Terminal Connection Lug, Frame Size 125A/BL, Length 4 in, Width 4 in, Depth 6 in, Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
Out of stock
