| Property | Value |
|---|---|
| Impedance | 50 Ω |
| Connector System | Cable-to-Board |
| RF Connector Mated Outer Diameter (Approximate) | .106 in |
| Termination Method to Printed Circuit Board | Surface Mount |
| Body Material | Brass |
| PCB Tail Length | .118 in |
| Center Contact Plating Material | Gold |
| Connector Mounting Type | Panel |
| PCB Mount Orientation | Vertical |
| Height above PCB | .177 in |
| Connector Style | Plug |
| Operating Temperature Range | -65 -165 °C |
| Connector Interface | MMCX |
| Center Contact Material | Brass |
| Number of Positions | 1 |
| RF Connector Coupling Mechanism | Push-On |
| RF Contact Captivation Method | Mechanical |
| Body Plating Material | Gold |
| Operating Frequency | 6 GHz |
| Detent | Without |
| Connector u0026 Contact Terminates To | Printed Circuit Board |
| Port Configuration | Single Port |
| Dielectric Material | PTFE |
| Number of Coaxial Contacts | 1 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

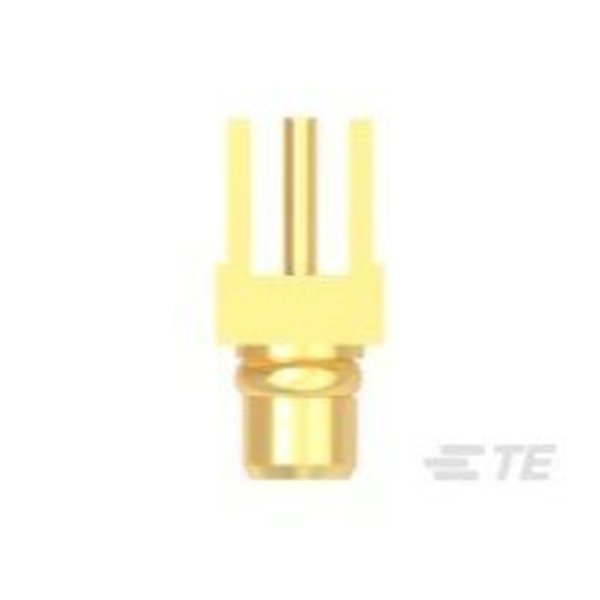

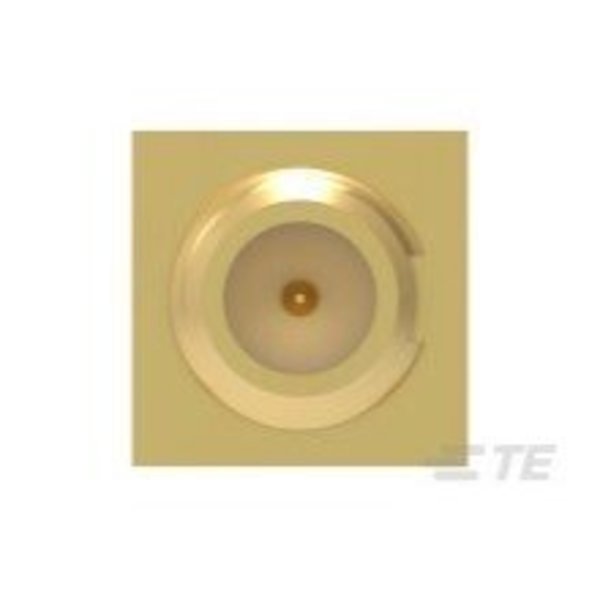

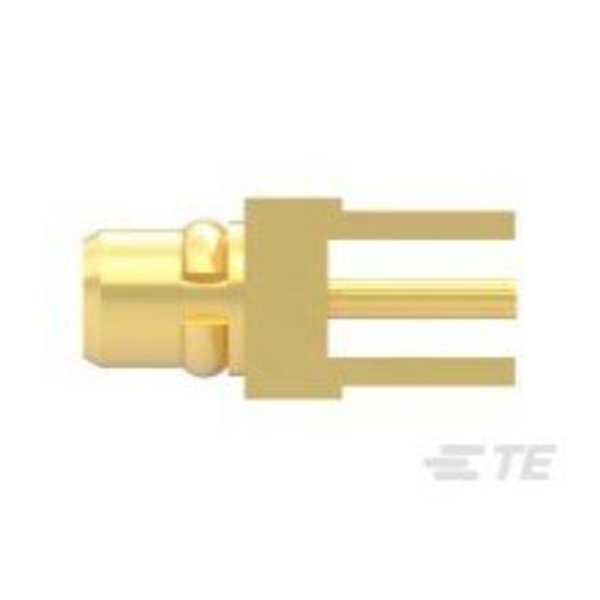

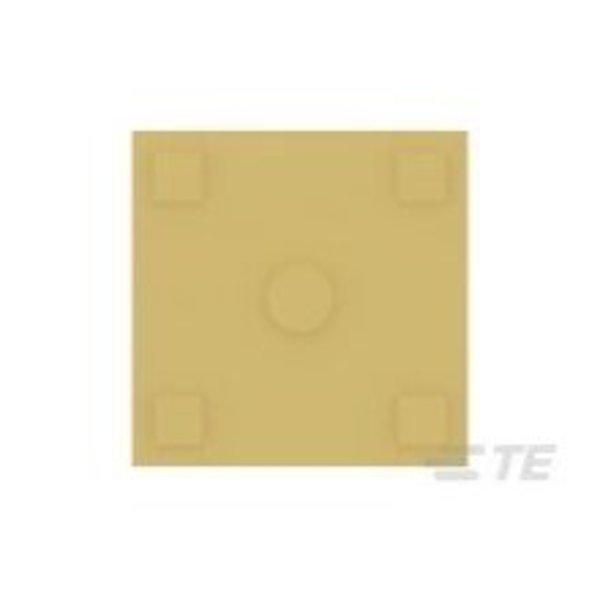

MMCX STRAIGHT PCB PLUG, Te Connectivity, Mfr#: 1408496-1
$11.19
Free shipping will be applied on orders over $50
Out of stock
