| Property | Value |
|---|---|
| Item | Key Locking Thread Insert |
| Internal Thread Size | 3/8 |
| Material | Stainless Steel |
| Number of Locking Keys | 4 |
| Overall Length | 1/2 in |
| External Thread Size | 9/16 |
| Thread Type | Coarse |
| Drill Bit Size | 31/64 in |
| Compatible Tap Size | 9/16 |
| Minimum Installation Depth | 19/64 in |
| Wall Type | Heavy Wall |
| Compatible Material | Metal |
| System of Measurement | Inch |
| Maximum Hole Diameter | 0.521 in |
| Thread Direction | Right Hand |
| Material Grade/Class | 18-8 |
| Insert Diameter | 9/16 in |
| External Thread Fit | 2A |
| Internal Thread Fit | 3B |
| Series | MS |
| Features | Self Locking |
| Industry Standards | SAE AS8879 |
| Finish | Plain |
| Country of Origin (subject to change) | United States |
| Package Quantity | 10 |

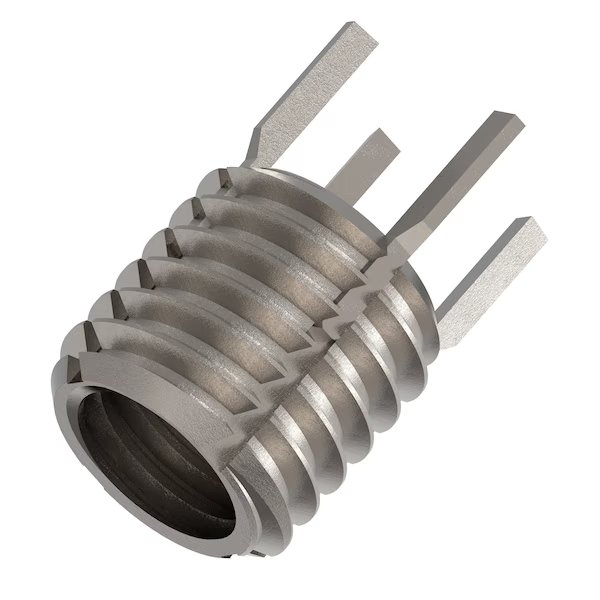

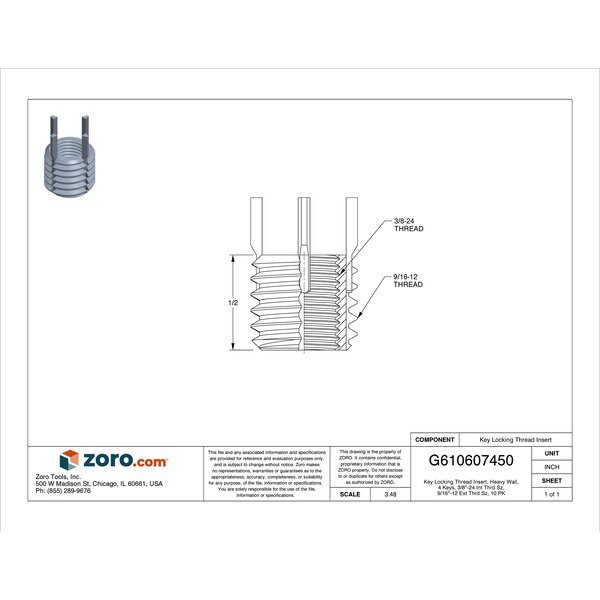

Key Locking Thread Insert, Heavy Wall, 4 Keys, 3/8"-24 Int Thrd Sz, 9/16"-12 Ext Thrd Sz, 10 PK, EnjoyTool Select, Mfr#: 217-077504
$61.19
Free shipping will be applied on orders over $50
Key Locking Thread Insert, System of Measurement Inch, Insert Diameter 9/16 in, Overall Length 1/2 in, Internal Thread Size 3/8 In.-24, Internal Thread Fit 3B, External Thread Size 9/16 In.-12, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Finish Plain, Wall Type Heavy Wall, Number of Locking Keys 4, Compatible Material Metal, Compatible Tap Size 9/16 In.-12, Drill Bit Size 31/64 in, Minimum Installation Depth 19/64 in
Out of stock
