| Property | Value |
|---|---|

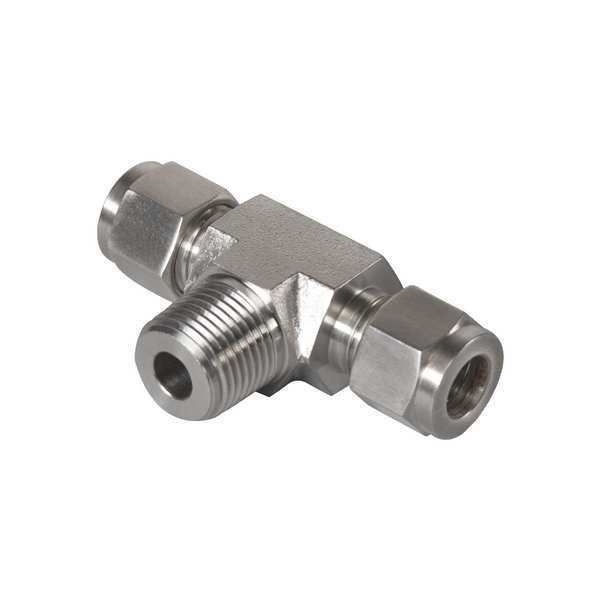

| Item | Instrumentation Fittings |
| Fitting Side A Tube Outer Diameter | 1/2 in |
| Pipe Size - Pipe Fitting | 1/2 in x 1/2 in x 1/2 in |
| Tube Size | Not Applicable |
| Compression Thread Size | 3/4-16 |
| Fitting Side B Connection Type | Compression |
| Max. Pressure | 75000 psi |
| Series | Brennan Instrumentation |
| Maximum Operating Pressure | 2111 psi |
| Fitting Material | Stainless Steel |
| Pipe Size | 1/2 in |
| Material Grade | 316 |
| Maximum Operating Temperature | 1,200 Degrees F |
| Connection Type | Compression x Compression x MNPT |
| System of Measurement | Imperial |
| Temp. Range | -20 Degrees to 100 Degrees F |
| Compatible Fitting Brands | Parker A-LOK, Swagelok |
| Thread Size C | 1/2-14 |
| Compatible Tube Hardness | 90 HRB |
| Fitting Side C Connection Type | MNPT |
| Fitting Side B Tube Outer Diameter | 1/2 in |
| Overall Length | 2 27/32 in |
| Application | Gas, Hydraulic, Tubing Systems |
| Fitting Side C Pipe Size | 1/2 in |
| Standards | ASME B31.3-2002, ASTM A269-04 |
| Fitting Side A Connection Type | Compression |
| Tube Fitting Material | Stainless Steel |
| Minimum Operating Temperature | 20 Degrees F |
| Fitting Connection Type | Instrumentation x Instrumentation x MNPT |
| Thread Size B | 3/4-20 |
| Hex Size | 22 mm |
| Compatible Tube Wall Thickness | 0.041 in |
| Thread Size A | 3/4-16 |
| Specific Fitting Shape | Tee |
| Threading Size | 3/4-16 x 3/4-20 x 1/2-14 |
| End Connection Type | Compression, Threaded |
| Fitting Body Material | 316 Stainless Steel |
| Fitting Shape | Tee |
| For Tube Outside Diameter | 1/2 in |
| For Tube OD | 1/2 in x 1/2 in |
| Compliance | ASME Specifications, ASTM Specifications |
| Special Features | All Components are Made of the Same Material for Thermal Compatibility and Corrosion Resistance, Resist Temperature Cycling, Resist Vibration, Self-Aligning, Work on Thick and Thin Wall Tubing |
| Country of Origin (subject to change) | India |
| Package Quantity | 1 |
Instrumentation Fittings, 1/4", Plug, SS, BRENNAN INDUSTRIES, Mfr# N2601-08-08-08-SS
$45.45
Free shipping will be applied on orders over $50
Instrumentation Fittings, Application Gas, Hydraulic, Tubing Systems, Fitting Side A Connection Type Compression, Fitting Side B Connection Type Compression, Fitting Side C Connection Type MNPT, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 1/2 in, Fitting Side B Tube Outer Diameter 1/2 in, Thread Size C 1/2-14, Thread Size B 3/4-20, Thread Size A 3/4-16, System of Measurement Imperial, Compatible Fitting Brands Parker A-LOK, Swagelok, Material Grade 316
Out of stock
