| Property | Value |
|---|---|
| Duty Rating | Heavy Duty |
| Finish - Hose Reels | Electro Polished |
| Hose Included | No |
| Hose Inside Dia. | 1/2 in |
| Hose Length | 25 ft |
| Housing Material | Stainless steel |
| Max. Pressure | 300 psi |
| Media - Hose Reels | Air, Mild Chemical, Water |
| Mounting | Bench and Vehicles, Ceiling, Floor, Wall |
| Overall Length | 7 in |
| Overall Width | 17 1/8 in |
| Application | Air, Water and Chemical |
| Hose Outlet | 1/2 in (M)NPT |
| Reel Inlet | 1/2 in (F)NPT |
| Swivel Material | Stainless Steel |
| Drive Type - Hose Reels | Spring Return |
| Max. Temp. | 150 Degrees F |
| Enclosed Reel | No |
| Hose Material | Stainless Steel |
| Overall Height | 18 5/8 in |
| Seal Type | Nitrile |
| Bearings | Permanently Lubricated |
| Hose Ends | 1/2 in (M)NPT |
| Includes | Stainless Steel Low Pressure Performance Hose Reel - Spring Rewind Hose Reel - Stainless Steel Hose Reel - Low Pressure Hose Reel - Retractable Hose Reel - Air Compressor Reel |
| Latch | Locking |
| Item | Spring Return Hose Reel |
| Drive Type | Spring Return |
| Width | 7 in |
| Length | 17 1/4 in |
| Reel Width | 7 in |
| Features | External Fluid Path, Multi-Position Lock Ratchet Mechanism Secures Hose At Desired Length, Non-Corrosive Stainless Steel Pawl Spring, Pawl/Zinc Plated Ratchet, Polished Stainless Finish, Rolled Edges and Ribbed Discs Provide Strength and Safety |
| Height | 18 1/4 in |
| Latch Type | Locking |
| Reel Material | Stainless Steel |
| Swivel Outlet Type | NPT |
| Swivel Inlet Type | NPT |
| Swivel Outlet Size | 1/2 in |
| Speed Limited Retraction | No |
| Maximum Operating Pressure | 300 psi |
| Reel Diameter | 17 1/8 in |
| Mount Base Width | 6 in |
| Standards | CE |
| Corrosion-Resistant | Yes |
| Mount Hole Diameter | 1/2 in |
| Reel Finish | Electro-Polished |
| Overall Dimensions | 7 in L x 17 1/8 in W x 18 5/8 in H |
| Mount Base Height | 6 in |
| Swivel Outlet Thread Size | 1/2 in - 14 |
| Vacuum Rating | 29 in Hg |
| Fasteners Included | No |
| Reel Color | Silver |
| Base Motion Type | Stationary |
| Mounting Hole Center to Center Height | 5 in |
| Includes Leader Hose | No |
| Swivel Outlet Gender | Female |
| Maximum Operating Temperature | 150 Degrees F |
| Enclosed | No |
| Swivel Inlet Size | 1/2 in |
| Hose Capacity | 25 ft (1/2 in I.D.) |
| Number of Guide Arms | Single Arm |
| Twin Hose Compatible | No |
| Hose Reel Primary Application | Air, Water |
| Weight | 39 lb |
| Swivel Inlet Gender | Female |
| Swivel Inlet Thread Size | 1/2 in - 14 |
| Pedestal Type | Single Pedestal |
| Number of Mount Holes | 4 |
| Bearing Construction | Permanently Lubricated |
| Minimum Operating Temperature | -40 Degrees F |
| Hose Reel Type | Wall Mount Hose Reel |
| For Dual Hose | No |
| Mounting Hole Center to Center Width | 4 in |
| Includes Hose | No |
| Type | Single Pedestal |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

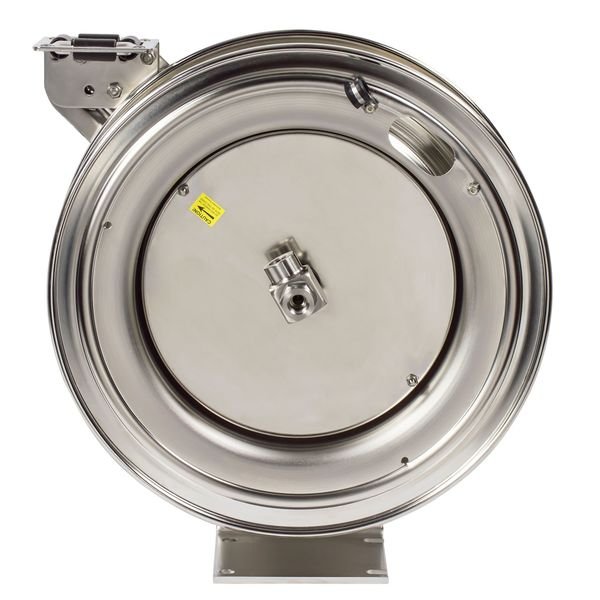

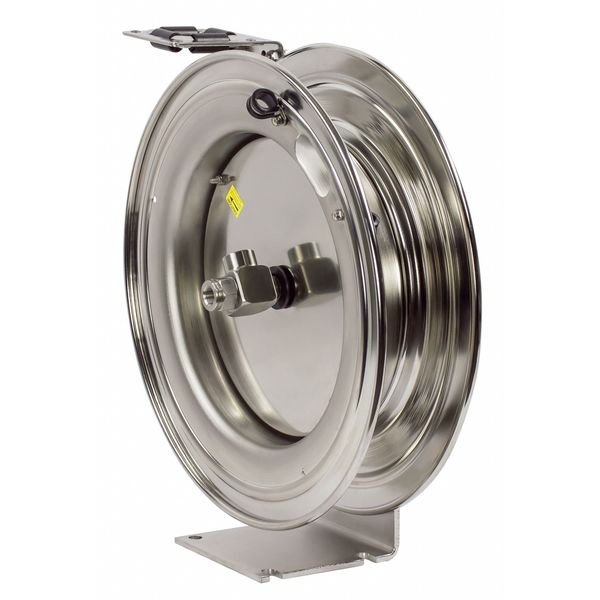

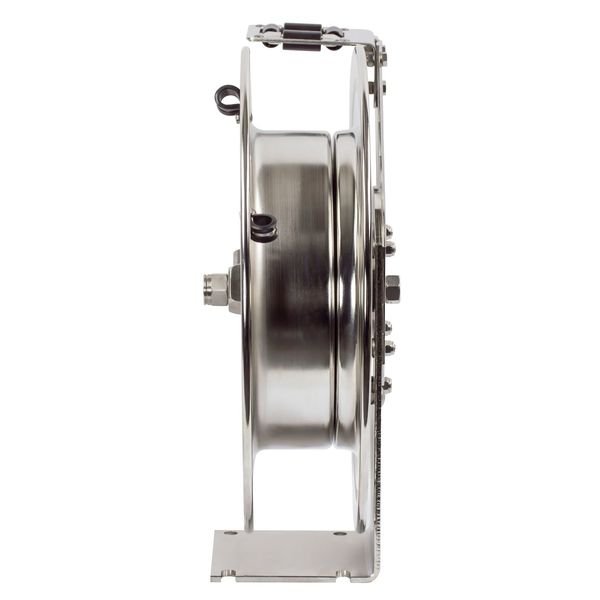

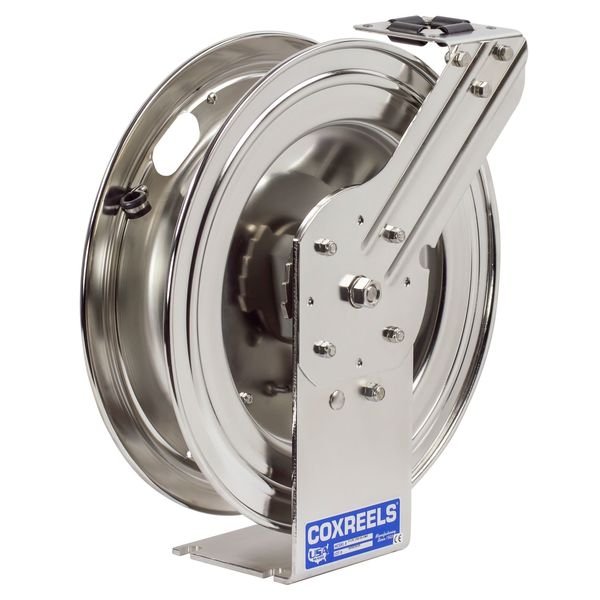

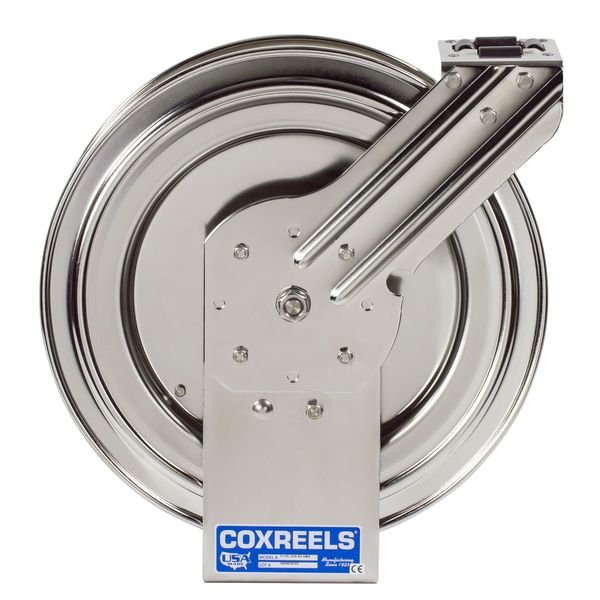

Spring Return Hose Reel, 1/2 in Hose Dia., 25 ft Length, 300 psi, COXREELS, Mfr# P-LPL-425-SS
$882.99
Free shipping will be applied on orders over $50
Spring Return Hose Reel, Air, Water, Maximum Operating Pressure 300 psi, Hose Capacity 25 ft (1/2 in I.D.), Drive Type Spring Return, Corrosion-Resistant Yes, Enclosed No, For Dual Hose No, Hose Reel Type Wall Mount Hose Reel, Includes Hose No, Mounting Location Bench, Floor, Truck, Wall, Pedestal Type Single Pedestal, Number of Guide Arms Single Arm, Overall Height 18 5/8 in, Overall Length 7 in, Overall Width 17 1/8 in, Reel Material Stainless Steel, Reel Finish Electro-Polished
Out of stock
