| Property | Value |
|---|---|
| Load Capacity | 8,000 lb |
| Hoist Mount | Hook Mounted - No Trolley |
| Pull to Lift Rated Load | 8,000 lb |
| Min. Between Hooks | 29 in |
| Hook Opening | 1 in |
| Housing Length | 24.4 in |
| Housing Width | 14 in |
| Trolley Configuration | Hook Mounted - No Trolley |
| Standards | ASME B30.21 |
| Item | Manual Cable Hoist |
| Includes | 1 wire rope hoist |
| Application | Lifting and pulling in construction, civil engineering, elevators, entertainment, steel structures and other industry applications. |
| Cord Length | 60 ft |
| Country of Origin (subject to change) | France |
| Package Quantity | 1 |

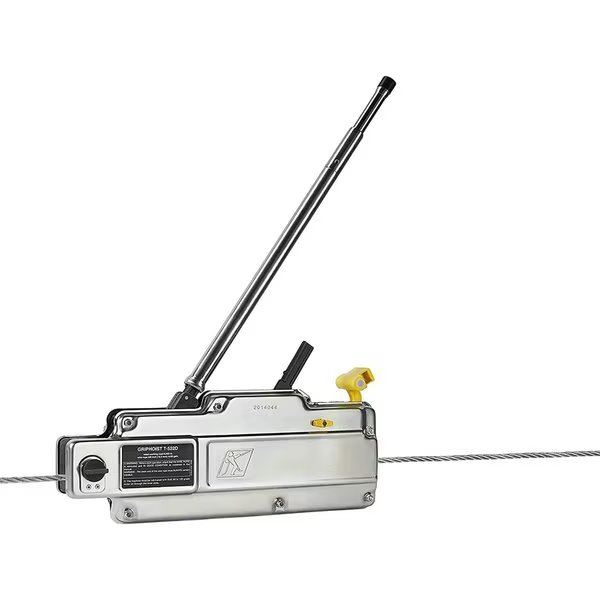

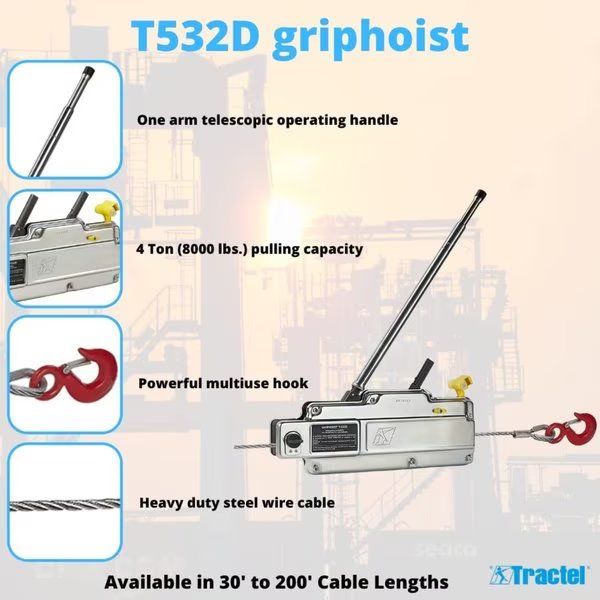

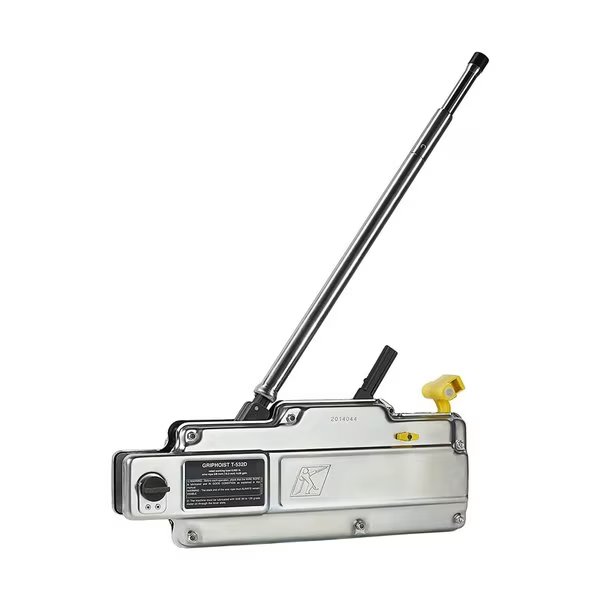

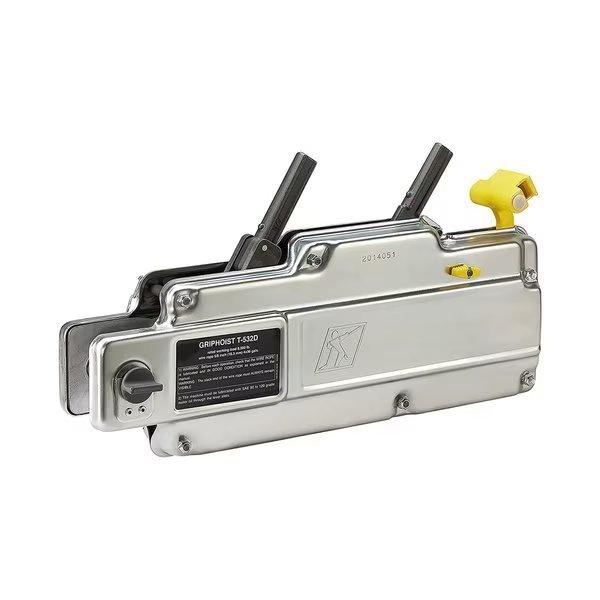

Griphoist Manual Wire Rope Hoist, 8,000 lb. 4 Ton, 60 ft, T532D, Tractel, Mfr#: 03309912460K
$3924.99
Free shipping will be applied on orders over $50
The griphoist/tirfor T532D with 60 ft. wire rope assembly is an essential to your wire pulling tool kit. This 8,000 lbs. nominal capacity lever-operated wire rope hoist features easy installation, reduced maintenance, and is economical. The T532D can lift, pull, or place loads across great distances with exceeding maximum working load limits. It is perfect for construction, infrastructure, telecom, road recovery and entertainment projects.Specifications:Wire Rope Assembly Length: 60 ft.,Unit Weight: 51 lbs. 24 kg,Forward Effort on Control Lever: 88 lbs. 45 kg,Forward Rope Travel Per Stroke: 11/16 in. 18 mm,Reverse Effort on Control Lever: 51.5 lbs. 25 kg,Reverse Rope Travel Per Stroke: 1 3/8 in. 36 mm,Minimum Wire Rope Breaking Strength: 40,000 lbs. 18,000 kg.Since the 1940s, Tractel has been a world leading manufacturer of pass-through electrical wire rope hoists and provides a complete lineup of lifting and handling equipment. Tractel proudly offers high-quality, versatile, and cost effective equipment to safely and efficiently handle your load - regardless of weight, position, or shape.
Out of stock
