| Property | Value |
|---|---|
| Item | General Purpose Motor |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Type | Rigid Base |
| HP | 1/2 |
| Voltage | 115/208-230V AC |
| Frame | 56 |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1.15 |
| No. of Speeds | 1 |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC |
| Motor Application | General Application |
| Nameplate RPM | 1,725 |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Design | Capacitor-Start |
| Standards | CSA (258501), UL (E37403) |
| Max. Ambient Temp. | 104 Degrees F |
| Full Load Amps | 9.0/4.3-4.5 A |
| Motor Efficiency Group | Standard Efficient |
| RPM Group | 1701-1800 |
| Inverter Rated | No |
| Ins. Class | B |
| Length Less Shaft | 9 1/2 in |
| Shaft Dia. | 5/8 in |
| Hz | 60 Hz |
| Motor Bearings | Ball |
| Frame Material | Steel |
| Duty | Continuous |
| Nominal Efficiency | 63.6 % |
| Phase | Single |
| Shaft Length | 1 7/8 in |
| Manufacturers Warranty Length | 1 yr |
| Overall Length | 11 3/8 in |
| Duty Cycle | Continuous |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |

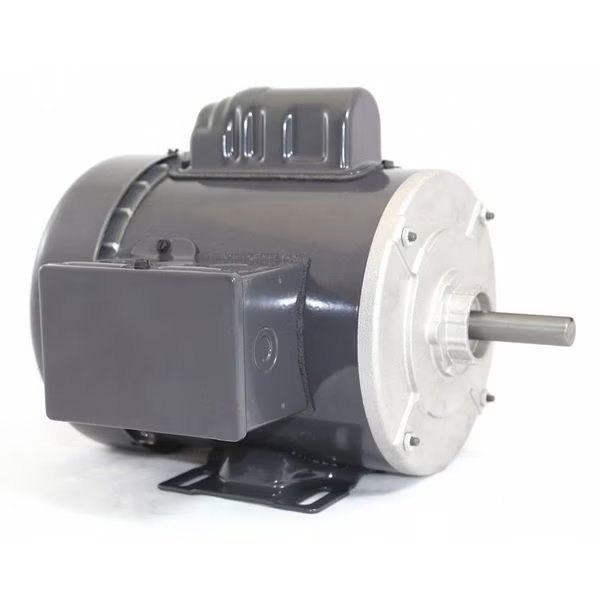

Capacitor-Start General Purpose Motor, 1/2 HP, 115/208-230V AC Voltage, 56 Frame, DAYTON, Mfr# 6K122
$356.99
Free shipping will be applied on orders over $50
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 9.0/4.3-4.5 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Inverter Rated No
Out of stock
