| Property | Value |
|---|---|
| Wire Range | 22 to 18 AWG |
| Insulation Type | Nylon |
| Stud Size | #10 |
| Insulation Color | Red |
| Overall Length | 0.86 in |
| Standards | UL Listed 587H E52164; CSA Certified LR31212 |
| Max. Temp. | 221 Degrees F |
| Connection Material | Copper |
| Tongue Width - Wire Connector | 0.31 in |
| Seam | Grip Sleeve, Butted |
| Features | Butted Seam, Insulated |
| Item | Fork Terminal |
| Terminal Type | Narrow Fork |
| Max. Voltage | 600V |
| Length | 0.9 |
| Finish | Tin-Plated |
| Width | 0.3 |
| Insulation Dia | 0.145 in |
| Product Name | Terminal Connector |
| Product Type | Terminal Connector |
| Product Material | Nylon, Copper |
| Diameter | 0.2 |
| Insulation Material | Nylon |
| Connector Plating | Tin |
| Connector Details | 1 x Fork Terminal |
| Product Color | Red |
| Barrel Type | Grip Sleeve |
| Max Operating Temperature | 105 degrees celsius |
| Color Coding | Red |
| Product Class | Wire Termination |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 100 |

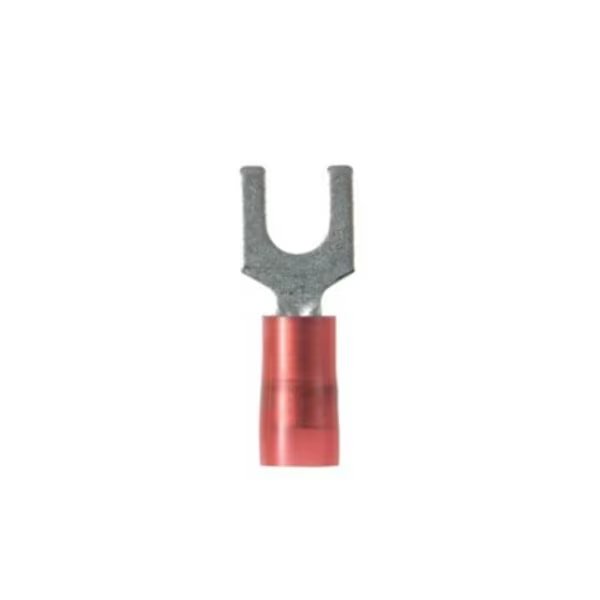

Fork Term, narrow tongue, Nyln Insul, 22 - 18, PN18-10FN-C, PK 100, Panduit, Mfr#: PN18-10FN-C
$84.45
Free shipping will be applied on orders over $50
Fork Terminal, narrow tongue, nylon insulated, 22 - 18 AWG, #10 stud size
Out of stock
