| Property | Value |
|---|---|
| Bearing Insert Type | Tapered Roller |
| Bore Dia. | 1 3/8 in |
| Shaft Locking Type | Set Screws |
| Bearing Housing Material Type | Cast Iron |
| Bearing Insert Material | Alloy Steel |
| Bolt Hole Center-to-Center | 3 1/2 in |
| Bolt Size | 1/2 in |
| Overall Height | 4.625 in |
| Item | Flange Bearing |
| Seal Material | Nitrile, Teflon |
| Bearing Lubrication | Lithium Complex Grease |
| Dimension D | 3 1/2 in |
| Static Load Capacity | 26,000 lb |
| Dynamic Load Capacity | 6,100 lbf |
| Temp. Range | -40 Degrees to 250 Degrees F |
| Includes | Timken Type E Tapered Roller Bearing |
| Dimension H | 1 1/16 in |
| Dimension F | 1/2 in |
| Overall Width | 3 in |
| Dimension E | 1/16 in |
| Overall Length | 4.625 in |
| Housing Material | Cast Iron |
| Dimension C | 2 19/32 in |
| Dimension A | 3 in |
| Dimension J | 3 7/8 in |
| Dimension B | 4 5/8 in |
| Dimension L | 2 3/4 in |
| Housing Material Finish | Painted |
| Maximum Temperature | 250 Degrees F |
| Bore Diameter | 1 3/8 in |
| Housing Type | Square |
| Number of Mount Holes | 4 |
| Mount Hole Center-to-Center Height | 3.5 in |
| Load Direction | Radial, Thrust |
| Static Radial Load Capacity | 26,000 lbf |
| Housing Material Grade | Class 30 |
| Expansion Type | Fixed |
| Application | Aggregate, Conveying, Cranes, Forestry, Gas, Mining, Oil, Power Generation, Screening |
| Bore Type | Cylindrical |
| Lubrication Openings | One Zirc Fitting |
| Mounting Bolt Size | 1/2 in |
| Lubricant Material | Lithium Complex Grease |
| Rolling Element Rows | 2 |
| Seal Type | Contact |
| Minimum Temperature | -40 Degrees F |
| Mount Hole Size | 1/2 in |
| Closure | Double Sealed |
| Mount Hole Center-to-Center Length | 3.5 in |
| Bearing Material Grade | 52100 |
| Features | Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Close Fit Oversized Collars Act as Flingers for Additional Protection in Dusty or Damp Environments, Housings of Class 30 Cast Iron, Standard V-Guard(TM) Nitrile and Teflon Contact Seal or Balanced Labyrinth Seal, Timken(TM) Lithium Complex Grease Operating Temperature is upto 250 Degrees , High Temperature Grease is Available upto 350 Degrees |
| Flange Thickness | 1 1/16 in |
| System of Measurement | Inch |
| Brand u0026 Part Number | MOLINE BEARING 19311106 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

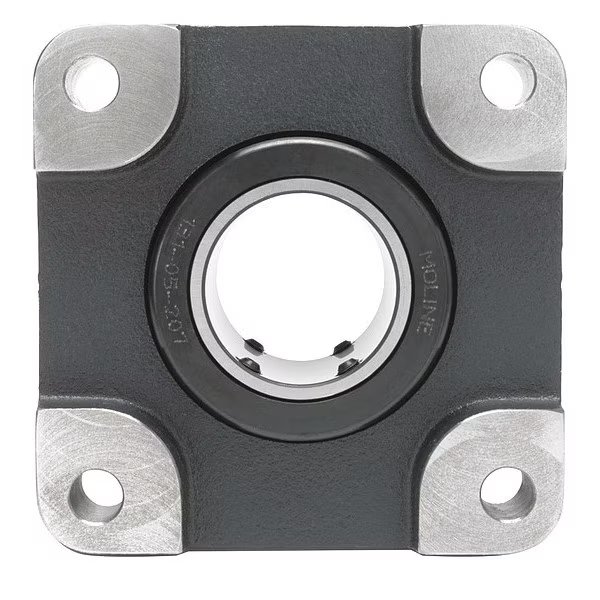

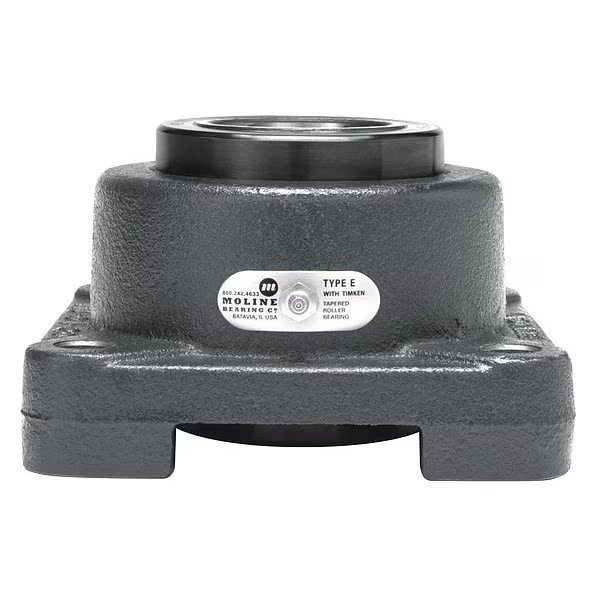

Flng Brg, Tapered Roller, 1 3/8in Bore, MOLINE BEARING, Mfr# 19311106
$283.99
Free shipping will be applied on orders over $50
Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Tapered Roller, Bore Diameter 1 3/8 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Lubricant Material Lithium Complex Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Height 3.5 in, Number of Mount Holes 4, Overall Height 4.625 in, Overall Length 4.625 in, Overall Width 3 in
Out of stock
