| Property | Value |
|---|---|
| Item | Fiber Optic Cable,MMF,62.5,MRTJ/LC,2m |
| Color | Orange |
| Technology | Multimode |
| Optical Mode | OM1 |
| Approvals | FDDI and OFNR rated |
| Cable Length (ft.) | 6.6 |
| Clad Diameter | 125 micron |
| Network Speed | 1Gbps |
| Side A - Connector 1 | MTRJ DUPLEX (MALE) |
| Number of Fibers | 2 |
| Side B - Connector 1 | LC DUPLEX (MALE) |
| Core Diameter | 62.5 micron |
| Cable Length (in.) | 78.7 |
| Cable Length | 6.60 ft |
| Certifications u0026 Standards | FDDI, OFNR |
| Cable Type | Fiber Optic |
| Connector on First End Details | 1 x MT-RJ Network - Male |
| Product Name | Fiber Optic Patch Cable |
| Package Contents | Fiber Optic Patch Cable, 2-meter Duplex MMF MTRJ/LC 62.5/125 Fiber cable |
| Connector on Second End Details | 2 x LC - Male |
| Additional Information | Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Beveled edge on ends of glass makes insertion of plug a breeze, Fiber made from glass (not a polymer), Color coded shrouds identify transmit and receive, Duplex multimode fiber is most commonly used in LAN applications where links are typically 10 feet or less |
| Cable Characteristic | Patch Cable |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Type | Network Cable |
| Core/Cladding Diameter | 62.5/125 u0026micro;m |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Cable Jacket Rating | OFNR |
| Cable Jacket Color | Orange |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Endface Polish | PC |
| Core Diameter (microns) | 62.5 |
| Attenuation @ 850NM | 3.0 dB/km |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
| Network Compatibility | 1 Gbps (Gigabit); 10 Gbps |
| Fiber Cable Length | 2M (6.6 ft) |
| Clad Diameter (microns) | 125 |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Cable Jacket Material | LSZH |
| Connector Color | White; Black |
| Insertion Loss | MTRJ ≤ 0.50 dB; LC ≤ 0.20 dB |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Package Includes | 2-meter Duplex MMF MTRJ/LC 62.5/125 Fiber cable |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

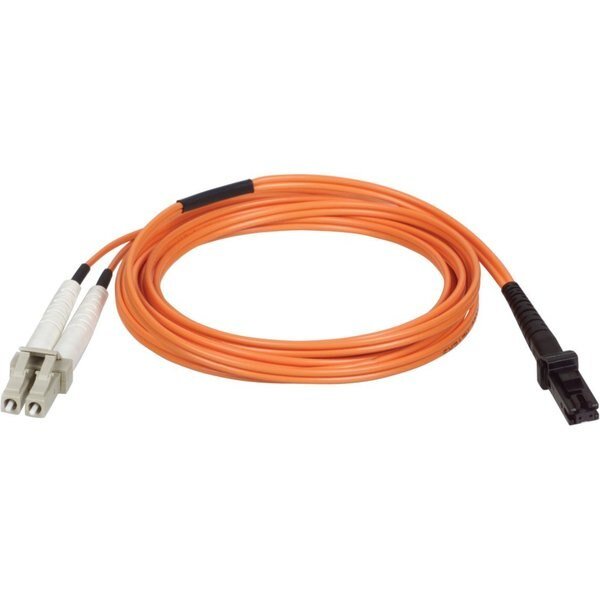

Fiber Optic Cable, MMF, 62.5, MRTJ/LC, 2m, Tripp Lite, Mfr#: N314-02M
$21.35
Free shipping will be applied on orders over $50
Fiber Optic Cable,MMF,62.5,MRTJ/LC,2m
Out of stock
