| Property | Value |
|---|---|
| Item | Ceiling Truss Damper |
| Shutter Mounting Position | Horizontal |
| Shutter Mounting Location | Ceiling |
| Shutter Construction Material | Extruded Aluminum Frame and G-90 Galvanized Tie Rods |
| Shutter Free Area | 5.981 sq ft |
| Shutter Opening Required | 34 in x 30 in |
| Shutter Overall Size | 36 in L x 32 in W |
| Fits Fan Dia. | 36 in |
| Blade Material | Aluminum |
| Max. Velocity | 1500 FPM |
| Width | 32 in |
| Number of Panels | 1 |
| Length | 36 in |
| Shutter Item | Whole House Fan Economy Ceiling Truss Shutter |
| For Use With | 36 in Whole House Fans |
| Mounting Hole Size | Prepunched |
| Flange Width | 1 5/8 in |
| Frame Depth | 1 3/8 in |
| Open Depth | 5 in |
| Mounting Position | Horizontal |
| Blade | Aluminum Blade w/ Felt Seal |
| Rough Opening Dims | 34 in x 30 in |
| Free Area | 6 sq ft |
| Closure Type | Gravity |
| Color | White |
| Rough Opening Length | 34 in |
| Fits Fan Diameter | 36 in |
| Rough Opening Width | 30 in |
| Damper Finish | Baked Enamel |
| Counterbalanced | Yes |
| Closure Velocity Rating | 1,500 fpm |
| Frame Material | Aluminum |
| Flange Type | Reversed Flange |
| Blade Seal Material | Felt |
| Tie-Rod Material | Galvanized Steel Frame and Tie Rods |
| Maximum Pressure | 1 in wc |
| Maximum Air Velocity | 1500 fpm |
| Mounting Hole Diameter | 1/4 in |
| Bushing Material | Stainless Steel |
| Rough Opening Shape | Rectangular |
| Series | CTRF |
| Switch Action | Normally Closed |
| Overall Width | 32 in |
| Frame Material Thickness | 0.1 in |
| Overall Height | 36 in |
| Opening Type | Gravity |
| Blade Material Thickness | 26 ga |
| Airflow Direction | Horizontal |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

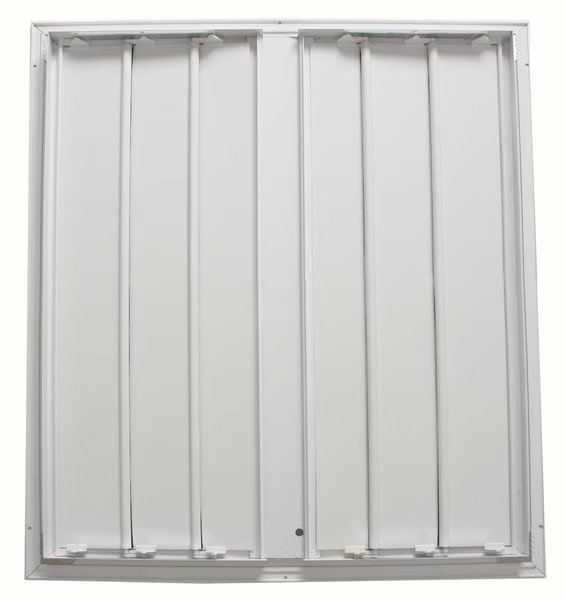

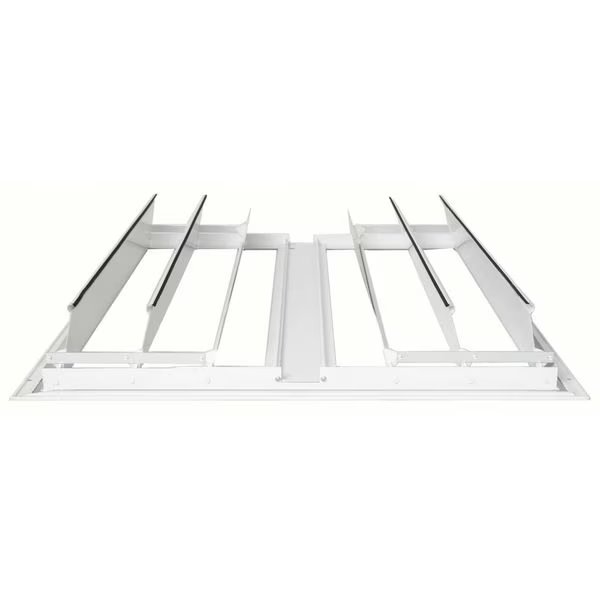

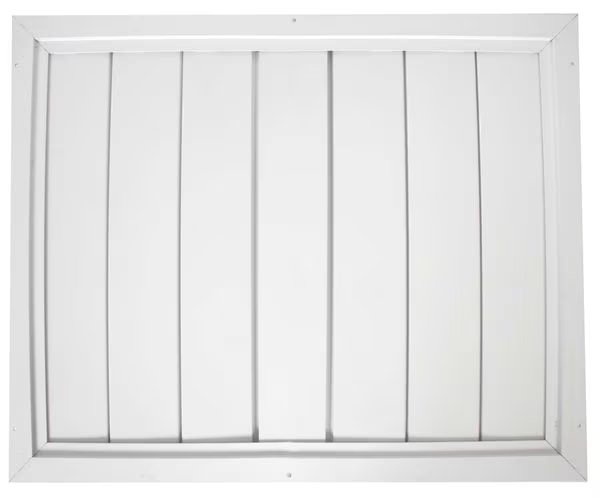

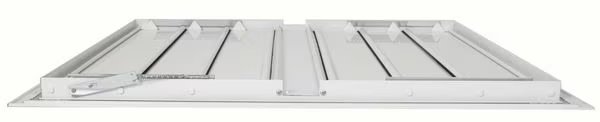

36 in Whole House Fan Economy Ceiling Truss Shutter / Ceiling Shutter, DAYTON, Mfr# 3C512
$124.99
Free shipping will be applied on orders over $50
36 In.H 32 In.W Aluminum Ceiling Fan Damper, Frame Material Aluminum, Number of Panels 1, Maximum Air Velocity 1500 fpm, Overall Height 36 in, Rough Opening Shape Rectangular, Fits Fan Diameter 36 in, Free Area 6 sq ft, Overall Width 32 in, Frame Material Thickness 0.1 in, Frame Depth 1 3/8 in, Rough Opening Length 34 in, Maximum Pressure 1 in wc, Rough Opening Width 30 in, Blade Material Aluminum, Closure Type Gravity, Flange Width 1 5/8 in
Out of stock
