| Property | Value |
|---|---|
| Lead Length | 6 in |
| Stud Quantity | 4 |
| No. of Speeds | 1 |
| Stud Size | 10-32 |
| Motor Shaft Rotation | CW/CCW |
| Nominal Efficiency | 83.4 % |
| Motor Application | HVAC/R |
| Shaft Length | 5 in |
| Duty | Continuous |
| Shaft Dia. | 1/2 in |
| Bolt Circle Dia. | 5 7/8 in |
| Application | Condenser Fan |
| Body Dia. | 5 5/8 in |
| Motor Enclosure Design | Open Air-Over |
| Motor Shaft Design | Flat |
| Motor Thermal Protection | Auto |
| Overall Length | 15 3/4 in |
| Motor Service Factor | 1 |
| Capacitor Required | No |
| Item | Condenser Fan Motor |
| Length Less Shaft | 11 11/16 in |
| Frame | 48Y |
| Features | Quick Disconnect Design |
| Full Load Amps | 3.5-3.3/1.7 A |
| Max. Ambient Temp. | 60 Degrees C |
| Motor Mounting Position | Vertical Shaft Up |
| Phase | Three |
| Nameplate RPM | 1,140 |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC |
| Motor Bearings | Ball |
| Ins. Class | B |
| Motor Design | 3-Phase |
| Voltage | 200-230/460V AC |
| RPM Range | 1,001-1,100 |
| HP | 1 |
| Motor Mounting Type | Band |
| Standards | CSA 258525, UL E47479 |
| Hz | 60 Hz |
| Motor Sub Application | Condenser Fan |
| Mounting Stud Pattern | 4 1/8 in x 4 1/8 in |
| Duty Cycle | Continuous |
| Inverter Rated | Yes |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

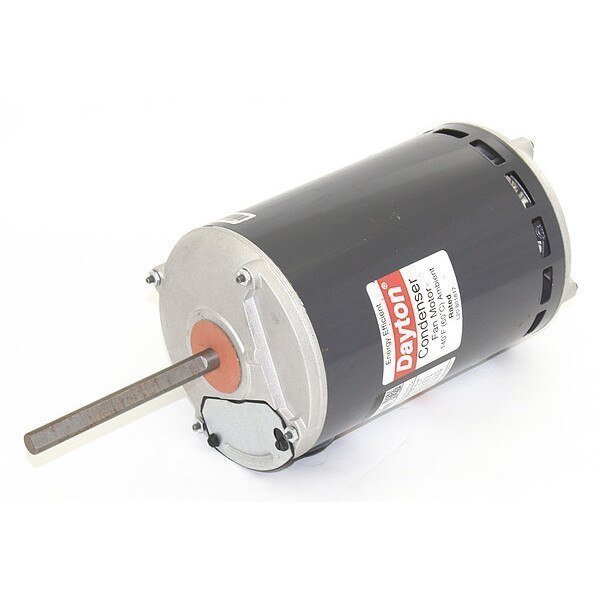

Fan Mtr, 1 HP, 1140,220-230/460, DAYTON, Mfr# 31TR62
$419.99
Free shipping will be applied on orders over $50
Condenser Fan Motor, Three Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 200-230/460V AC, 3.5-3.3/1.7 A Full Load Amps, 48Y Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band, Inverter Rated Yes, Motor Mounting Position Vertical Shaft Up, Shaft Length 5 in, Lead Length 6 in
Out of stock
