| Property | Value |
|---|---|
| Overall Length | 11.68mm[.46in] |
| Insertion Force | Normal |
| Terminal Orientation | Flag |
| Applies To | Wire/Cable |
| Wire Size (mm²)(mm²) | .3 - .8 |
| Crimp Type | F-Crimp |
| Material Thickness | .25mm[.01in] |
| Terminal Angle | 90° |
| Contact Plating Material | Pre-Tin |
| Mating Retention Type | Dimple |
| Mating Tab Width | 2.79mm[.11in] |
| Mating Tab Thickness | .64mm[.025in] |
| Plating Material | Brass, Pre-Tin |
| Support Style | Insulation Support |
| CSA Certified | Yes |
| Wire Insulation Diameter | 1.65 2.54mm[.065 .1in] |
| FASTON | Yes |
| Wire Size (AWG)(AWG) | 22 - 18 |
| Wire/Cable Composition | Stranded |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

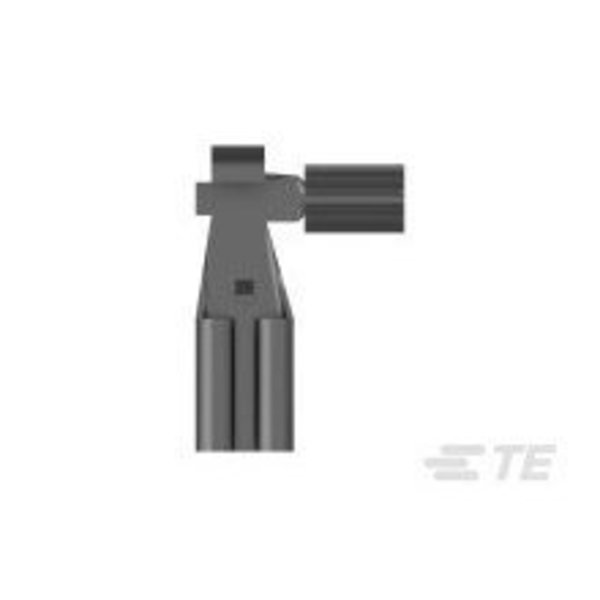

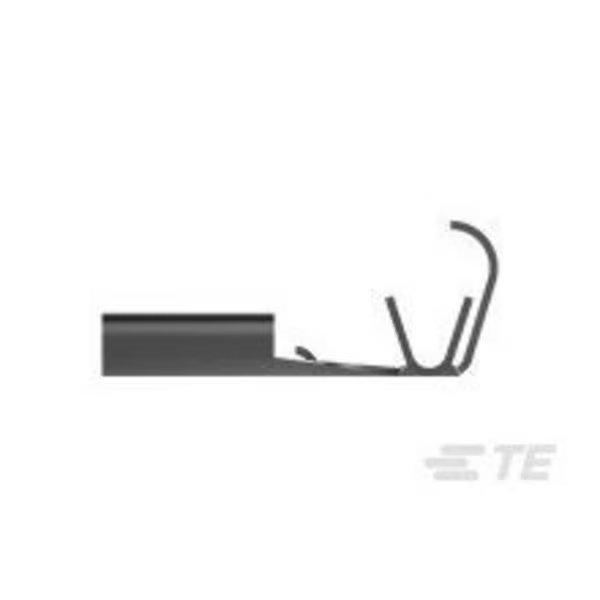

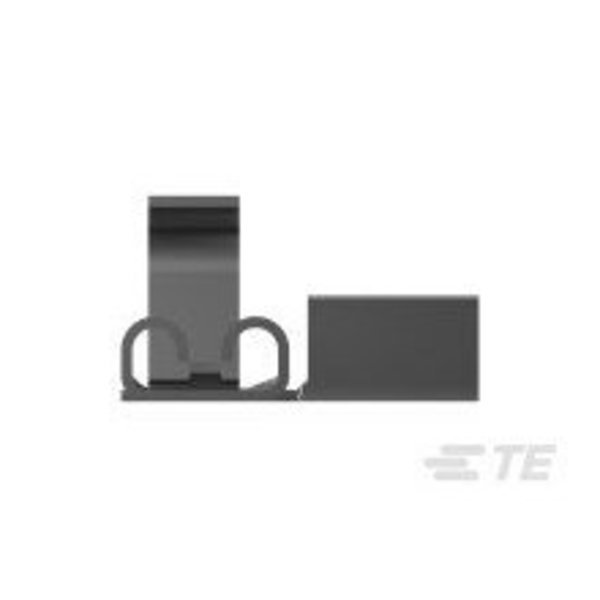

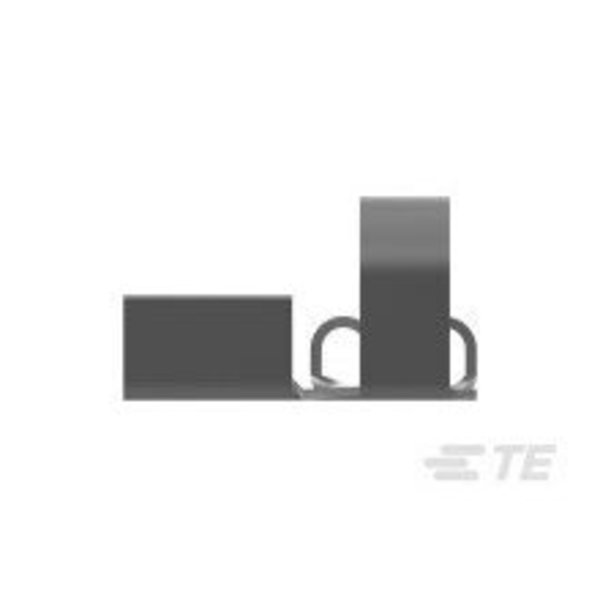

FASTON 110 RECEPTACLE 22-18 AWG PTPBR, Te Connectivity, Mfr#: 61530-1
$0.09
Free shipping will be applied on orders over $50
Out of stock
