| Property | Value |
|---|---|
| Item | Explosion Proof Lighting Fixture |
| Fixture Type | Explosion Proof |
| Fixture Wattage | 112 |
| Lamp Watts | 28 W |
| Lamp Type | Integrated LED |
| Voltage | 120/277V AC |
| Lamp Included | Yes |
| Ambient Temp. Range | -22 Degrees to 185 Degrees F |
| Finish | High Gloss |
| Mounting | Surface/Suspended |
| Length | 52 17/64 in |
| Height | 9 53/64 in |
| Color Temperature | 5600K |
| Fixture Temp. Range | -30 Degrees to 85 Degrees C |
| Fixture Housing Material | Aluminum |
| Lamp Quantity | 4 |
| Nominal Height | 9 53/64 in |
| Dimmable | No |
| IP Rating | 67 |
| Standards | Certified to Canadian Standards, NEMA 4X |
| Fixture Type - Decorative and Surface Mount Fixtures | Explosion Proof Strip Light |
| Lighting Technology | LED |
| Nominal Length | 52 17/64 in |
| Emergency Battery Backup | No |
| Fixture Housing Color | Gray |
| Max. Fixture Wattage | 112 W |
| Width | 25 15/64 in |
| Suggested Lamp Item No. | LEDT8-28W-V1 |
| Fixture Voltage | 120 to 277V AC |
| Color Rendering Index | 80 |
| Description/Special Features | 50,000 hr LED Life, Gas and Dust Explosion Proof, Paint Spray Booth |
| Lens Material | Glass |
| Lamp Watts - Fixtures | 28.0 W |
| Lumens | 14,000 lm |
| Bulb Designation | T8-LED, 4FT |
| Item - Decorative and Surface Mount Fixtures | LED Surface Mount Fixture |
| Housing Finish | High Gloss |
| Number of Light Bars | 4 |
| Lighting Certification | Unrated |
| Fixture Warranty | 5 yr. |
| Lumens Per Watt | 125.0 |
| Fixture Rated Life | 50,000 hr |
| Light Color | Daylight |
| Nominal Width | 25 15/64 in |
| Includes | 1/2 in NPT Hub Size, LED Bulbs, Wall/Ceiling/Flat Surface Mounting Brackets |
| Housing Material | Aluminum |
| Lumens per Watt | 125 lm/W |
| Min. Ambient Temp. | -22 Degrees F |
| UL/CSA/ETL Listed | UL 1598 Listed, UL 595 Listed, UL 844 Listed, UL Listed |
| CA Title 24 Compliant | Yes |
| Flasher Strobe Color | Not Applicable |
| Temperature Code | T6 |
| Ingress Protection Rating | 67 |
| Overall Width | 22 1/2 in |
| Mounting Location | Surface |
| Max. Ambient Temp. | 185 Degrees F |
| BAA Compliant | Yes |
| For Max. Bulb Wattage | 28 W |
| Series | EPL-48-4L |
| For Bulb Type | LED |
| Number of Bulbs | 4 |
| Overall Height | 8 1/2 in |
| For Number of Bulbs | 4 |
| Overall Length | 52 in |
| Safety Rating | Class I, Division 1, Groups C, D, Class I, Division 2, Group A, B, C, D, Class II, Division 1 and 2, Groups E, F, G |
| For Bulb Shape | T8 |
| Light Technology | LED |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

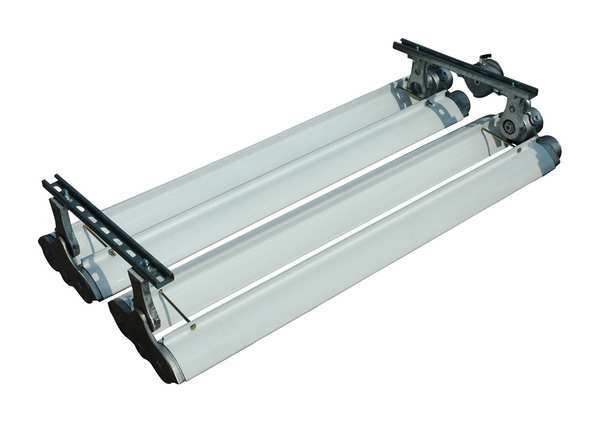

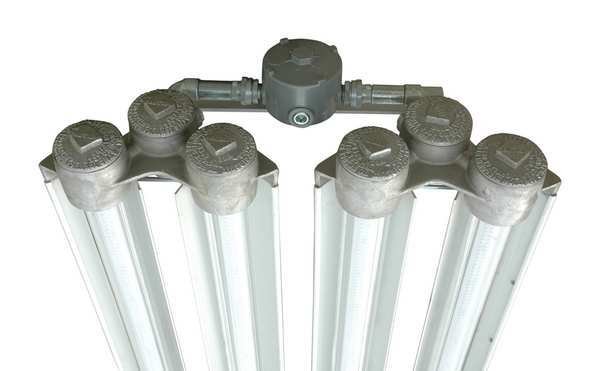

Explosion Proof Lighting, T8-LED, 112W, LARSON ELECTRONICS, Mfr# EPL-48-4L-LED-SFC
$3194.99
Free shipping will be applied on orders over $50
Explosion Proof Lighting Fixture, Explosion Proof Fixture Type, Integrated LED Lamp Type, Lamp Quantity 4, Bulb Designation T8-LED, 4FT, Lamp Watts 28 W, Suggested Lamp Item No. LEDT8-28W-V1, Fixture Wattage 112, Voltage 120/277V AC, 50,000 hr LED Life, Gas and Dust Explosion Proof, Paint Spray Booth, Yes Lamp Included, Ambient Temp. Range -22 Degrees to 185 Degrees F, Housing Material Aluminum, High Gloss Housing Finish, Lens Material Glass, Finish Gray, Surface/Suspended Mounting
Out of stock
