| Property | Value |
|---|---|
| Color | White |
| Max. Voltage | 250V AC |
| Height | 8 mm |
| Width | 0.377 in |
| Length | 1.271 in |
| Hole Center to Center | 2.5 mm |
| Max. Temp. | 105°C |
| Material | Nylon |
| Item | PCB Mount Header |
| Features | Shrouded |
| Connection Material | Copper Alloy |
| Number of Rows | 1 |
| Contact Finish | Tin Plated |
| Contact Type | Pin |
| Number of Contacts | 12 |
| Current Rating | 4.5 A |
| Terminal Finish | Bright Tin Plated |
| Contact Plating Thickness | 2.03 µm |
| Connector Terminates To | Printed Circuit Board |
| Flammability Rating | UL 94 V-0 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

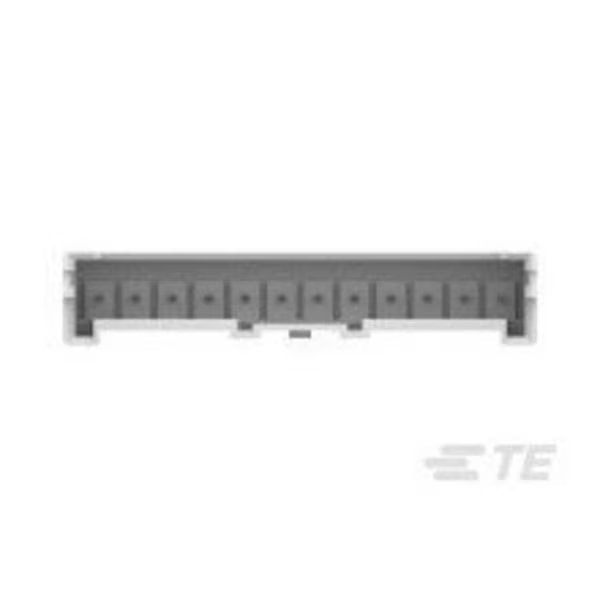

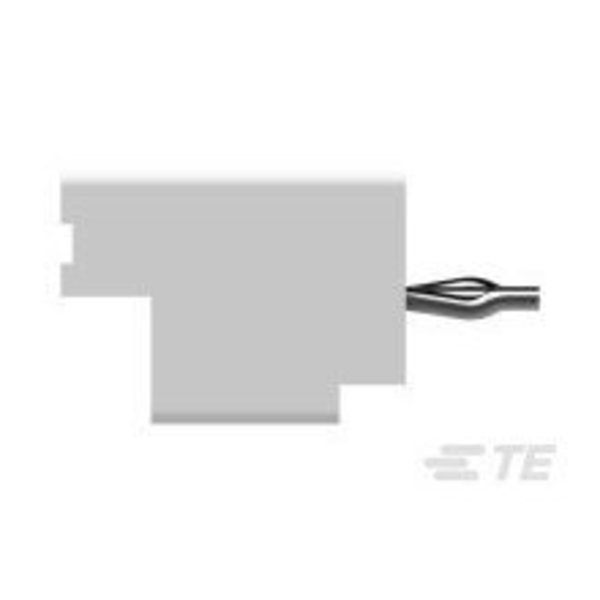

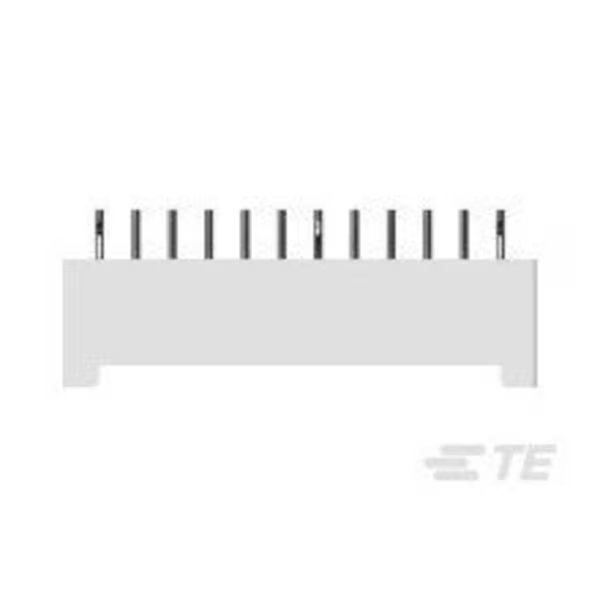

EP2.5 Shrd HDR ASSY 12P VERT GW, Te Connectivity, Mfr#: 1-1744439-2
$0.68
Free shipping will be applied on orders over $50
Out of stock
