| Property | Value |
|---|---|
| Item | Power Limited Cable |
| Item - Data Cable | Power Limited Cable |
| Fire Rating - Data Cable | Commercial |
| Shielded | Shielded |
| Number of Conductors | 3 |
| Total Number of Conductors - Data Cable | 3 (0 Pair) |
| Conductor Size - Data Cable | 20 AWG |
| Length | 1000 ft. |
| Solid / Stranded | Stranded |
| Jacket Color | Gray |
| Spool Length | 1,000 ft |
| Nominal Outside Dia. | 0.217 in |
| Jacket Material | PVC |
| Application - Communication Cable | Alarm Systems, Audio Systems, Control Systems |
| Suggested Voltage Rating - Data Cable | 300 V |
| Temp. Range | -4 Degrees to 221 Degrees F |
| Jacket Material - Wire and Cable | PVC |
| Shielding Material | 100% Aluminum/Polyester Flexfoil |
| Package Type - Data Cable | Reel in a Box |
| Shielded / Unshielded | Shielded |
| Insulation Material | PVC |
| NEC Article and Type | 725 PLTC |
| Cable Sub-Category | Multi-Conductor |
| Conductor Size | 20 AWG |
| NEC Article | 725 PLTC |
| Application | Alarm Systems, Computer Systems, Communications, Control Systems, Audio Systems |
| Standards | CE 2006/95/EC, UL 70,000 BTU Vertical Tray Flame Test, NEC Article 725, NEC/CEC Type CMG, RoHS Compliant |
| Cable Length | 1,000 ft |
| Package Type | Reel in a Box |
| Maximum Operating Temperature | 221 Degrees F |
| Product Type | Communication Cable |
| Power Limited | Power Limited |
| Conductor Gauge | 20 AWG |
| Maximum Voltage Rating | 300 V |
| Number of Strands | 7 |
| Minimum Operating Temperature | -4 Degrees F |
| Solid/Stranded | Stranded |
| Outside Diameter | 0.2 in |
| Fire Rating | Commercial |
| Number of Pairs | 0 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

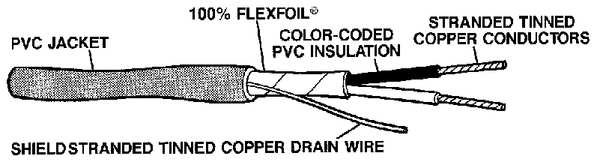

Tray Cable, Shielded, 20/3, 1000 Ft., CAROL, Mfr# C0453A.41.10
$450.99
Free shipping will be applied on orders over $50
Power Limited Cable, Cable Length 1,000 ft, Fire Rating Commercial, Number of Strands 7, Conductor Gauge 20 AWG, Insulation Material PVC, Jacket Color Gray, Jacket Material PVC, Shielded Shielded, Shielding Material 100 Percent Aluminum/Polyester Flexfoil, Solid/Stranded Stranded, Number of Conductors 3, Outside Diameter 0.2 in, Package Type Reel in a Box, Application Alarm Systems, Computer Systems, Communications, Control Systems, Audio Systems, Maximum Voltage Rating 300 V
