| Property | Value |
|---|---|
| Item | Pneumatic Condensate Separator |
| NPT Size | 1 1/4 in |
| Float Type | Automatic Internal Drain |
| Max. Flow (CFM) | 700 |
| Max. Pressure (PSI) | 290 psi |
| Max. Temp. | 176 Degrees F |
| Housing | Aluminum |
| Dia. | 7.19 |
| Differential Pressure (PSI) | 1 |
| Height (In.) | 23 in |
| Auto Drain Stock Number | 4GNN2 |
| Max. Flow CFM @ 100 PSI | 700 |
| Body Material | Aluminum |
| Air Outlet Size | 1 1/4 in |
| Maximum Flow Rate | 700 cfm |
| For Fluid Type | Compressed Air, Gas |
| For Substance Type | Air; Gas |
| Drain Included | Yes |
| Air Outlet Type | NPT |
| Weight | 10 lb |
| Drain Part Compatibility | 4GNN2 |
| Maximum Operating Pressure | 290 psi |
| Outside Diameter | 7 in |
| Air Inlet Type | NPT |
| Type | Automatic Internal Drain |
| Air Inlet Size | 1 1/4 in |
| Minimum Operating Temperature | 35 Degrees F |
| Filtered Substance | Moisture |
| Maximum Operating Temperature | 176 Degrees F |
| Overall Length | 6 1/2 in |
| Overall Depth | 23 in |
| Drain Type | Automatic |
| Maximum Flow @ 100 psi | 700 cfm |
| Country of Origin (subject to change) | Turkey |
| Package Quantity | 1 |

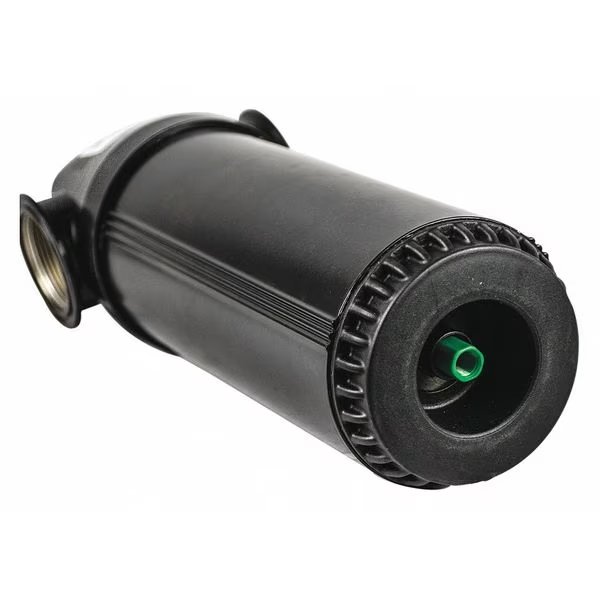

Condensate Separator, 700 cfm, 1-1/4" NPT, Speedaire, Mfr#: 53RG93
$527.89
Free shipping will be applied on orders over $50
Pneumatic Condensate Separator, Air Inlet Size 1 1/4 in, Air Inlet Type NPT, Maximum Flow @ 100 psi 700 cfm, Maximum Flow Rate 700 cfm, Maximum Operating Pressure 290 psi, Minimum Operating Temperature 35 Degrees F, Type Automatic Internal Drain, Outside Diameter 7 in, Overall Length 6 1/2 in, Weight 10 lb, Air Outlet Size 1 1/4 in, Air Outlet Type NPT, Body Material Aluminum, Drain Included Yes, Drain Part Compatibility 4GNN2, Drain Type Automatic, Filtered Substance Moisture
9999 in stock
