| Property | Value |
|---|---|
| Promotion Restriction | Not eligible for promotion |
| Item | Megohmmeter |
| Output Test Voltage | 50 to 5000V DC |
| Insulation Resistance Range | 5 megaohm to 100 gigohm |
| Live Circuit Detection | Greater Than 30V |
| Capacitance Range | 0.01 to 15 uF |
| Display | LCD |
| Features | Saves Test Results to the Cloud, Real Time Trending Gives You Easy-to-See Visual Cues, Report Creation Using Fluke Connect Desktop |
| Power Source | Battery |
| Auto Power Off | Yes |
| Interface | USB |
| Data Logging | 99 Data Points |
| Safety Rating | CAT III 1000V, CAT IV 600V |
| Includes | AC Power Cord, Infrared Adapter with Interface Cable, Soft Carrying Case (Base Models Only), Test Cables with Alligator Clips (Red, Black, Green) |
| Leakage Current Range | 1 mA |
| Manufacturers Warranty Length | 3 yr |
| Calibration Certificate | None |
| Green Environmental Attribute | Product is Rechargeable |
| Communication Protocol | USB |
| CAT Safety Rating | CAT III 1000V, CAT IV 600V |
| Parameters Measured | Insulation Resistance |
| Display Type | Digital |
| Test Voltage | 1,000V DC, 2,500V DC, 250V DC, 5,000V DC, 500V DC |
| Maximum Capacitance Measured | 15 uF |
| PI/DAR Testing | Yes |
| Standards | IEC 61326-1, IEC 61326-2-2 CISPR 11 |
| Backlit Digital Display | No |
| Minimum Capacitance Measured | 0.01 uF |
| Display Screen Type | LCD |
| Minimum Insulation Resistance | 5 megaohm |
| Insulation Resistance Resolution | 5 megaohm to 100 gigaohm |
| Testing Functions | Insulation |
| Maximum Insulation Resistance | 100 gigohm |
| Waterproof | No |
| IP Rating | IP40 |
| Timed Ramp Voltage Test | Yes |
| Bluetooth Compatible | Yes |
| USB Data Download Included | Yes |
| Live Circuit Voltage | Greater Than30V |
| Remote Test Probe Included | No |
| Number of Records Stored | 99 |
| Capacitance Auto Discharge | Yes |
| Dustproof | No |
| Battery Chemistry | Lead Acid |
| Tool Length | 10.6 in |
| Greater Than 30V Warning | Yes |
| Maximum Operating Temperature | 122 Degrees F |
| Manufacturer Warranty Length | 3 yr |
| Battery Size | 12V |
| Minimum DC Voltage Measured | 250 V |
| Includes Batteries | Yes |
| Operating Voltage | 600V AC/DC |
| Data Logger | Yes |
| Insulation Limit Alarm | Yes |
| Maximum DC Voltage Measured | 5,000 V |
| Test Current | 1 nA to 2mA |
| Tool Height | 6.3 in |
| Minimum Operating Temperature | -4 Degrees F |
| Pass/Fail Selection Limits | Yes |
| Tool Width | 10.9 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

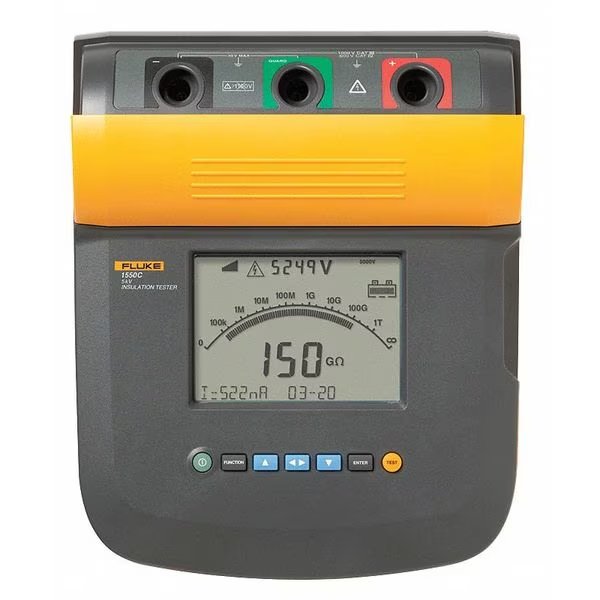

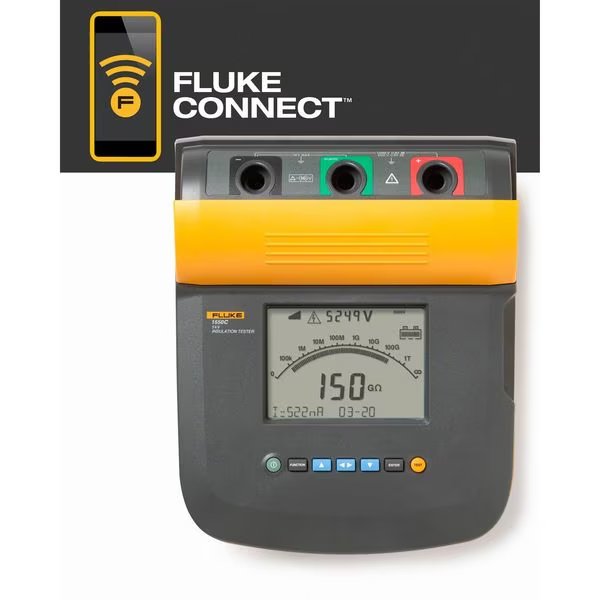

Battery Operated Megohmmeter, 5000VDC, Fluke, Mfr#: FLUKE-1550C
$6488.99
Free shipping will be applied on orders over $50
Megohmmeter, Backlit Digital Display No, Bluetooth Compatible Yes, CAT Safety Rating CAT III 1000V, CAT IV 600V, Calibration Certificate None, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof No, Greater Than 30V Warning Yes, Includes AC Power Cord, Infrared Adapter with Interface Cable, Soft Carrying Case (Base Models Only), Test Cables with Alligator Clips (Red, Black, Green), Insulation Limit Alarm Yes, Maximum Insulation Resistance 100 gigohm
Out of stock
