| Property | Value |
|---|---|
| HP | 20 hp, 25 hp, 30 hp |
| Item | Air Compressor Pump |
| Number of Stages | 2 |
| Lubrication Type | Splash Lubricated |
| Number of Cylinders | 4 |
| Max. Pressure | 175 psi |
| Free Air CFM @ Max. Pressure | 76.7/90.1/101.0 |
| Flywheel Dia. | 22 in |
| Pump RPM | 655, 770, 890 |
| NPT Outlet | 1 1/4 |
| Groove Quantity | 3 |
| Oil Capacity | 1.58 gal |
| Overall Depth | 27.25 in |
| Finish | Green Metallic |
| Construction | Cast Iron |
| Bore Dia. | 3 1/4 in, 6 1/4 in |
| Overall Width | 33 in |
| Sheave Size @ 1725 RPM | 8 3/8 in, 9 7/8 in, 11 3/8 in |
| Valve Material | Swedish Steel |
| Flywheel Included | Yes |
| Rotation | CCW |
| Groove Section | B |
| Stroke Length | 4 in |
| Overall Height | 33.56 in |
| Valve Type | Disc |
| Mounting Pattern | 11-3/8 in W x 11-1/4 in D |
| Flywheel Diameter | 22 in |
| Lubrication Required | Yes |
| Maximum Output Power | 30 hp |
| Number of Grooves | 3 |
| Outlet Connection Type | NPT |
| Free Air Flow Rate @ Maximum Pressure | 76.7/90.1/101.0 cfm @ 175 psi |
| Outlet Size | 1.25 in |
| Maximum Operating Pressure | 175 psi |
| Bore Diameter | 3.25 in, 6.25 in |
| Pump Speed | 890 RPM |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

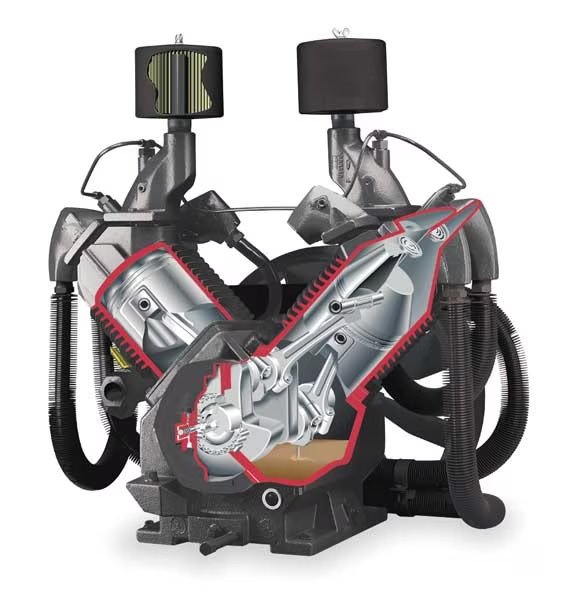

Air Compressor Pump, 20 hp, 25 hp, 30 hp, 2 Stage, 6.3333 qt Oil Capacity, 4 Cylinder, Speedaire, Mfr#: R2-30A-P10
$8127,99
Free shipping will be applied on orders over $50
Air Compressor Pump, Lubrication Type Splash Lubricated, Number of Stages 2, Maximum Output Power 30 hp, Free Air Flow Rate @ Maximum Pressure 76.7/90.1/101.0 cfm @ 175 psi, Number of Cylinders 4, Maximum Operating Pressure 175 psi, Flywheel Diameter 22 in, Flywheel Included Yes, Pump Speed 890 RPM, Construction Cast Iron, Groove Section B, Number of Grooves 3, Valve Type Disc, Valve Material Swedish Steel, Rotation CCW, Stroke Length 4 in
9999 in stock
