| Property | Value |
|---|---|
| Color | Black |
| Max. Voltage | 250V AC |
| Height | 13.94 mm |
| Application | Signal |
| Length | 1.96 in |
| Item | Connector |
| Max. Temp. | 105°C |
| For Use With | AMP-Latch Receptacle |
| Material | Nylon |
| Hole Center to Center | 2.54 mm |
| Connection Material | Phosphor Bronze |
| Connector Type | Header |
| Terminal Type | Through Hole |
| Number of Rows | 2 |
| Current Rating | 1 A |
| Contact Type | Pin |
| Number of Contacts | 24 |
| Contact Finish | Gold Plated; Gold Flash over Palladium Nickel |
| Contact Plating Thickness | 30 µin |
| Connector Terminates To | Printed Circuit Board |
| Flammability Rating | UL 94 V-0 |
| Terminal Finish | Tin Plated |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

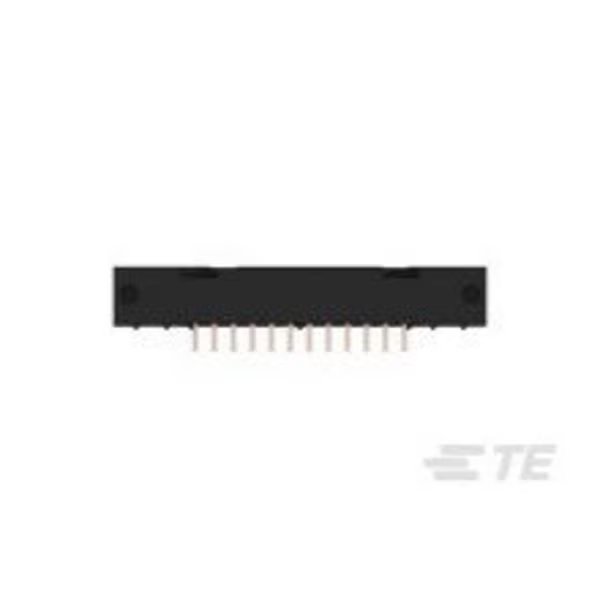

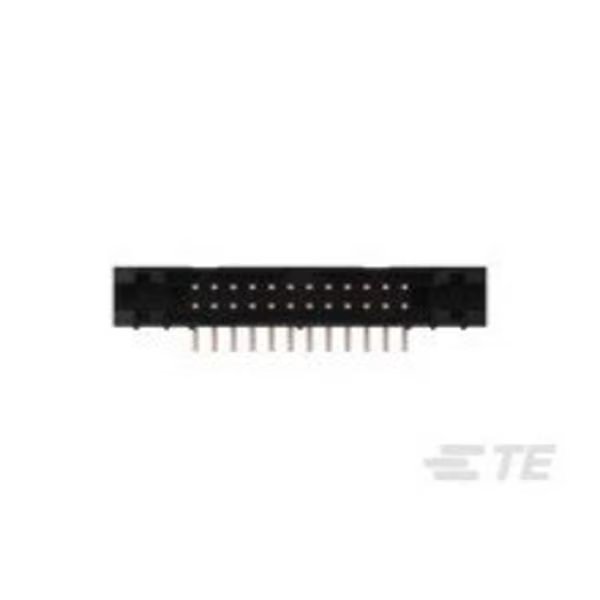

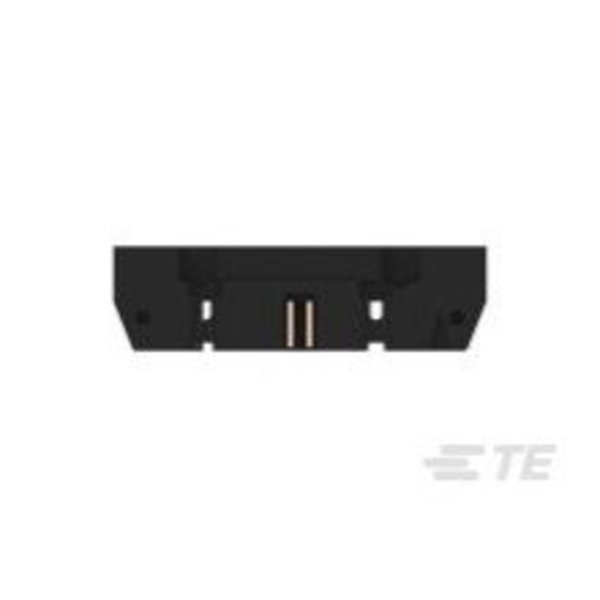

A/L UNIV HDR 24P RA, Te Connectivity, Mfr#: 5102160-5
$4.39
Free shipping will be applied on orders over $50
Out of stock
