| Property | Value |
|---|---|
| Color | Black |
| Max. Voltage | 250V AC |
| Height | 8.813 mm |
| Application | Signal |
| Length | 2.3 in |
| Item | Connector |
| Connection Material | Phosphor Bronze |
| Max. Temp. | 105°C |
| Connector Type | Header |
| Material | Glass-Filled High Performance Polyamide |
| Hole Center to Center | 2.54 mm |
| Features | With Board Standoff and Daisy Chain |
| Terminal Type | Through Hole |
| Number of Rows | 2 |
| Contact Type | Pin |
| Number of Contacts | 40 |
| Current Rating | 1 A |
| Contact Finish | Gold Plated; Gold Flash over Palladium Nickel |
| Connector Terminates To | Printed Circuit Board |
| Flammability Rating | UL 94 V-0 |
| Contact Plating Thickness | 15 µin |
| Terminal Finish | Tin Plated |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

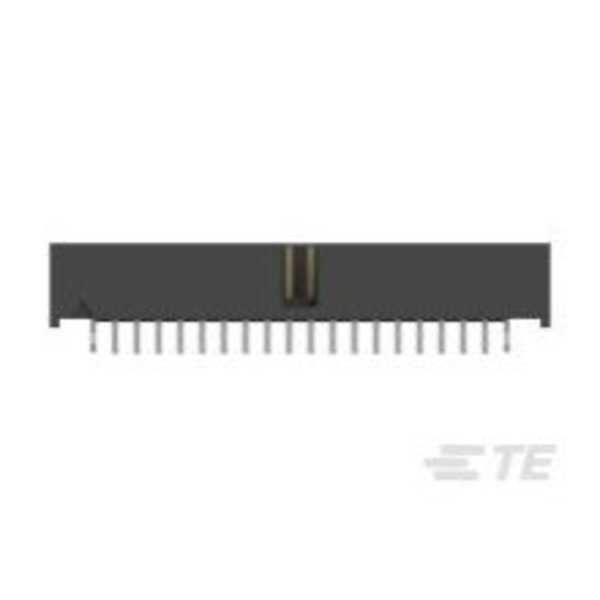

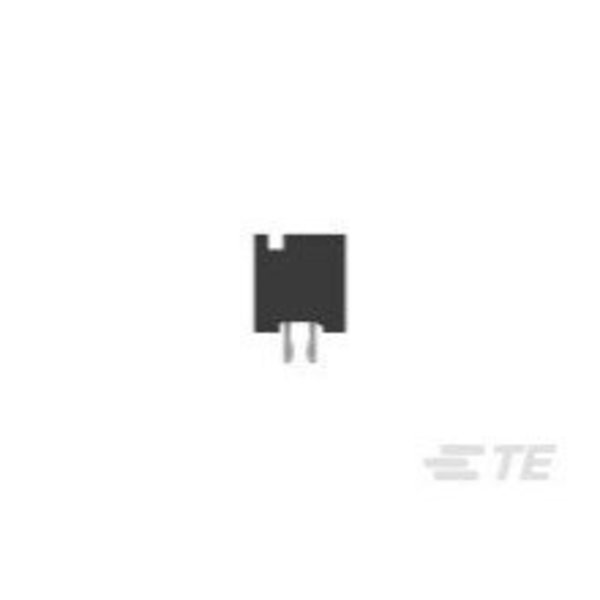

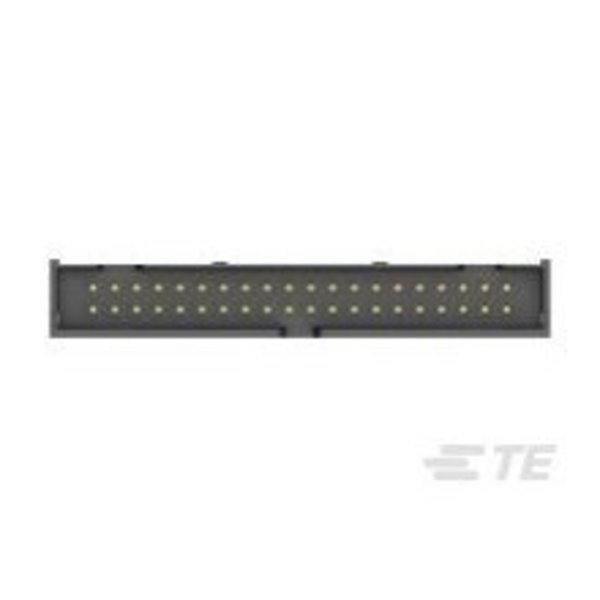

A/L LOW PRO HDR 40P VERT HT, Te Connectivity, Mfr#: 5104338-8
$5.65
Free shipping will be applied on orders over $50
Out of stock
