| Property | Value |
|---|---|
| Item | AC Gearmotor |
| Gearmotor Voltage | 115V AC |
| Gearmotor Phase | 1 |
| Gearmotor Type | AC Gearmotor |
| Max. Torque | 65 in-lb |
| Gearmotor Shaft Type | Single |
| Gearmotor Shaft Orientation | Parallel |
| Nameplate RPM | 10 RPM |
| Gearmotor Enclosure | Open |
| Gearmotor Rotation | CW |
| Gearmotor Brake Type | None |

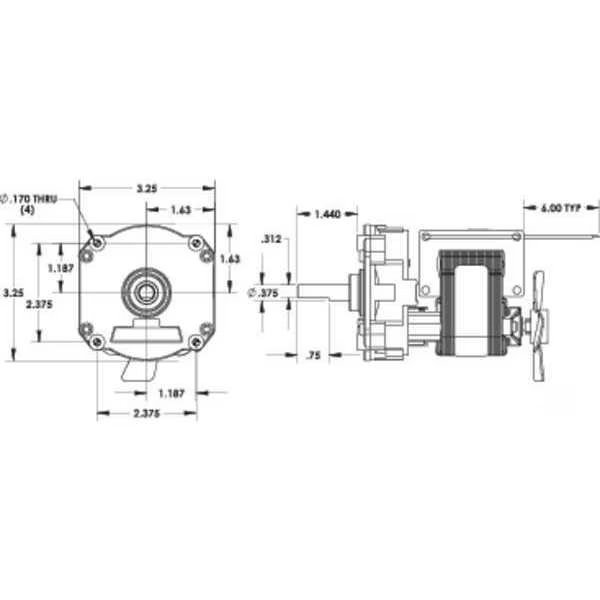

| Length Less Shaft | 4.78 in |
| Gearmotor Mounting Position | All Angle |
| Full Load Amps | 1.9 |
| Standards | UL Recognized |
| Input HP | 1/60 hp |
| Gear Case Material | Die Cast Zinc |
| Gear Material | Sintered Steel |
| Shaft Orientation | Parallel |
| Housing | Die Cast Zinc |
| Rotation | CW |
| Shaft Length (Dimension V) | 1 |
AC Gearmotor, 65 in-lb Max. Torque, 10 RPM Nameplate RPM, 115V AC Voltage, 1 Phase, DAYTON, Mfr# 52JD97
$108.99
Free shipping will be applied on orders over $50
AC Gearmotor, Number of Output Shafts 1, Motor Type Shaded Pole, Motor Enclosure Open Air-Over, Nameplate Speed 10 RPM, Maximum Torque 65 in-lb, Overhung Load Capacity 30 ft-lb, Rotation CW, Output Shaft Height 4.63 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Gear Ratio 294:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class A
Out of stock
