| Property | Value |
|---|---|
| Item | AC Gearmotor |
| Gearmotor Voltage | 230/460V AC |
| Gearmotor Phase | 3 |
| Gearmotor Type | AC Gearmotor |
| Max. Torque | 117 in-lb |
| Gearmotor Shaft Type | Single Left |
| Gearmotor Shaft Orientation | Right Angle |
| Nameplate RPM | 137 RPM |
| Gearmotor Enclosure | Totally Enclosed Fan-Cooled |
| Gearmotor Rotation | CW/CCW |
| Gearmotor Brake Type | None |
| Gearmotor Mounting Position | All Angle |
| Full Load Amps | 1.1/0.56 |
| Standards | CE Certified, CSA Certified, UL Recognized |
| Input HP | 1/4 hp |
| Phase | Three |
| Application | Inverter Duty |
| Overhung Load | 1,321 lb |
| Shaft Orientation | Right Angle |
| Gear Ratio | 12.1:1 |
| Mounting | All Position |

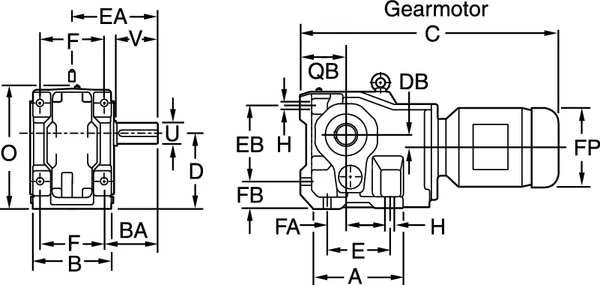

| Shaft Length (Dimension V) | 2.3125 |
| Lubrication | Oil Filled |
| Motor Type | 3-Phase |
| RPM Range | 101 to 150 |
| Shaft Dia. (Dimension U) | 1 1/4 in |
| Hz | 60/50 Hz |
| Enclosure | TEFC |
| Voltage | 230/460 |
| Rotation | CW/CCW |
| Finish | Stainless Steel Paint |
| Overall Length | 17.09 in |
| Mount Type | Any Position |
| Housing Material Finish | Stainless Steel Paint |
| Shaft Material Grade | AISI 1045/AISI 4140 |
| Frequency | 50 Hz, 60 Hz |
| Operating Voltage | 230/460V AC |
| Number of Output Shafts | 1 |
| Keyway Width | 1/4 in |
| Motor Enclosure | Totally Enclosed Fan-Cooled |
| Output Location | Left Hand |
| Keyway Depth | 1/4 in |
| Mount Hole Center-to-Center Width | 4.72 in |
| Mounting Orientation | Any Angle |
| Overhung Load Capacity | 1,321 ft-lb |
| Output Shaft Height | 4.41 in |
| Mount Hole Center-to-Center Length | 5.12 in |
| Seal Material | Viton |
| Overall Height | 7.64 in |
| Overall Width | 8.08 in |
| Output Shaft Length | 2 3/8 in |
| Full Load Current | 1.1/0.56 A |
| Keyway Length | 2 in |
| Nameplate Speed | 137 RPM |
| Output Shaft Diameter | 1 1/4 in |
| Input Horsepower | 0.25 hp |
| Brake Type | None |
| Maximum Torque | 117 in-lb |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
AC Gearmotor, 117.0 in-lb Max. Torque, 137 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase, Nord, Mfr#: SK9012.1-63L/4-12.23-A
$1316.7
Free shipping will be applied on orders over $50
AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 137 RPM, Maximum Torque 117 in-lb, Overhung Load Capacity 1,321 ft-lb, Rotation CW/CCW, Output Shaft Height 4.41 in, Mounting Orientation Any Angle, Operating Voltage 230/460V AC, Gear Ratio 12.1:1, Brake Type None, Output Location Left Hand, Shaft Orientation Right Angle, Seal Material Viton, Shaft Material Grade AISI 1045/AISI 4140, Application Inverter Duty
Out of stock
