| Property | Value |
|---|---|
| Item | General Purpose Motor |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Face |
| HP | 3/4 |
| RPM Range | 1,101-1,200 |
| Voltage | 230/460V AC |
| Frame | 56C |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.15 |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Nameplate RPM | 1,150 |
| Motor Shaft Rotation | CW/CCW |
| Motor Mounting Position | Horizontal |
| Motor Frame Material | Rolled Steel |
| Motor Shaft Design | Keyed |
| Standards | CE, CSA, UL |
| Includes | MIMI 8S470A u0026 Shaft Key |
| Duty | Continuous |
| Phase | Three |
| Motor Bearings | Ball |
| Green Certification or Other Recognition | NEMA Premium Rated |
| No. of Speeds | 1 |
| Overall Length | 12 11/16 in |
| Max. Ambient Temp. | 104 Degrees F |
| Frame Material | Rolled steel |
| Manufacturers Warranty Length | 1 yr |
| Length Less Shaft | 8 15/16 in |
| Nominal Efficiency | 81.7 % |
| Footnotes | 15,16 |
| RPM Group | 1101-1200 |
| Motor Efficiency Group | Premium Efficient |
| Full Load Amps | 2.6/1.3 A |
| Hz | 60 Hz |
| Shaft Length | 1 7/8 in |
| Ins. Class | F |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Inverter Rated | Yes |
| Shaft Dia. | 5/8 in |
| Capacitor Required | No |
| Duty Cycle | Continuous |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

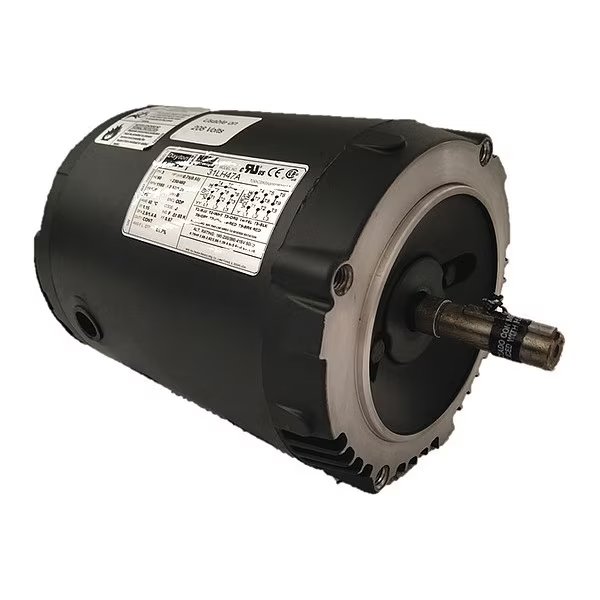

3-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 1,150 Nameplate RPM, Dayton, Mfr#: 31LH47
$200,99
Free shipping will be applied on orders over $50
General Purpose Motor, Three Phase, Motor Design 3-Phase, 3/4 HP, Nameplate RPM 1,150, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.6/1.3 A, 56C Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed
9999 in stock
