| Property | Value |
|---|---|
| Item | General Purpose Motor |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| Motor Mounting Type | Rigid Base |
| HP | 1/3 |
| RPM Range | 3,001-3,600 |
| Voltage | 208-230/460V AC |
| Frame | 48 |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.15 |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Nameplate RPM | 3,450 |
| Motor Shaft Rotation | CW/CCW |
| Motor Mounting Position | All Angle |
| Motor Frame Material | Rolled Steel |
| Motor Shaft Design | Flat |
| Standards | CSA Certified (258501), UL Recognized (E47479) |
| Includes | Conduit Box |
| Footnotes | 2, 12, 51 |
| Max. Ambient Temp. | 104 Degrees F |
| Duty | Continuous |
| Manufacturers Warranty Length | 1 yr |
| RPM Group | 3001-3600 |
| Shaft Dia. | 1/2 in |
| Frame Material | Steel |
| Phase | Three |
| Inverter Rated | Yes |
| Ins. Class | B |
| Motor Efficiency Group | Premium Efficient |
| Overall Length | 9 1/4 in |
| Hz | 60/50 Hz |
| Nominal Efficiency | 72 % |
| Full Load Amps | 1.2-1.1/0.60 A |
| Length Less Shaft | 7 7/16 in |
| No. of Speeds | 1 |
| Motor Bearings | Ball |
| Shaft Length | 1 1/2 in |
| Duty Cycle | Continuous |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

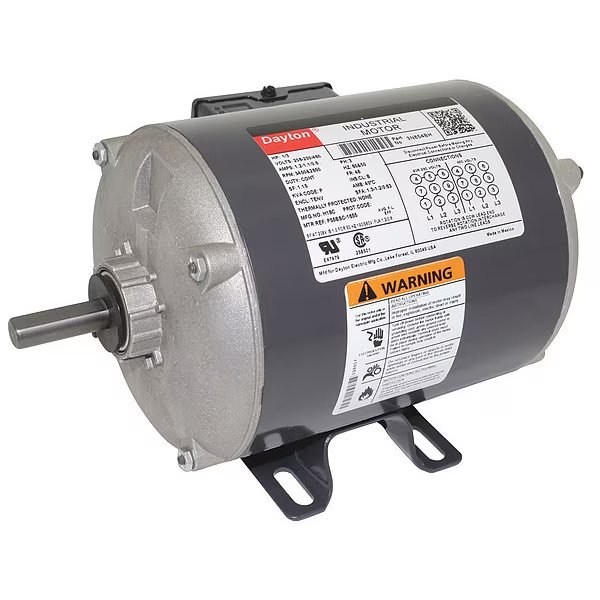

3-Phase General Purpose Motor, 1/3 HP, 48 Frame, 208-230/460V AC Voltage, 3,450 Nameplate RPM, DAYTON, Mfr# 3N854
$190.42
Free shipping will be applied on orders over $50
General Purpose Motor, Three Phase, Motor Design 3-Phase, 1/3 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.2-1.1/0.60 A, 48 Frame, Hz 60/50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Inverter Rated Yes
9999 in stock
