| Property | Value |
|---|---|
| Item | General Purpose Motor |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Face |
| HP | 1/2 |
| RPM Range | 3,001-3,600 |
| Voltage | 230/460V AC |
| Frame | 56C |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.25 |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Nameplate RPM | 3,490 |
| Motor Shaft Rotation | CW/CCW |
| Motor Mounting Position | Horizontal |
| Motor Frame Material | Rolled Steel |
| Motor Shaft Design | Keyed |
| Standards | CE, CSA, UL |
| Includes | MIMI 8S470A u0026 Shaft Key |
| Shaft Dia. | 5/8 in |
| Green Certification or Other Recognition | NEMA Premium Rated |
| Frame Material | Rolled steel |
| RPM Group | 3001-3600 |
| Motor Bearings | Ball |
| Overall Length | 10 5/16 in |
| Shaft Length | 1 7/8 in |
| Nominal Efficiency | 73.4 % |
| Motor Efficiency Group | Premium Efficient |
| Phase | Three |
| Hz | 60 Hz |
| Length Less Shaft | 7 1/8 in |
| Max. Ambient Temp. | 104 Degrees F |
| Inverter Rated | Yes |
| Footnotes | 15,16 |
| Full Load Amps | 1.6/0.81 A |
| No. of Speeds | 1 |
| Ins. Class | F |
| Manufacturers Warranty Length | 1 yr |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Duty | Continuous |
| Capacitor Required | No |
| Duty Cycle | Continuous |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

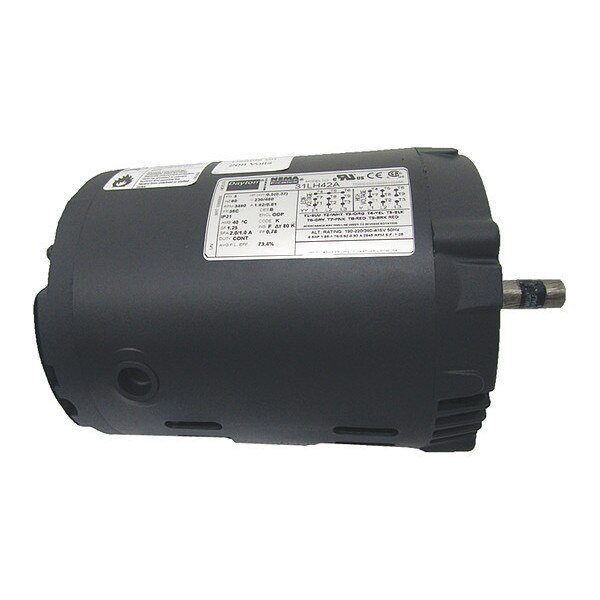

3-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V AC Voltage, 3,490 Nameplate RPM, DAYTON, Mfr# 31LH42
$201.59
Free shipping will be applied on orders over $50
General Purpose Motor, Three Phase, Motor Design 3-Phase, 1/2 HP, Nameplate RPM 3,490, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.6/0.81 A, 56C Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed
