| Property | Value |
|---|---|
| Body Material - Pin and Sleeve | Aluminum |
| Voltage | 208V AC |
| Amps - Plugs and Receptacles | 60 A |
| Color - Plugs and Receptacles | Blue |
| NEMA Rating | 4X |
| HP | 10 |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682 |
| Use With | Mating Box MB6 |
| Load Break Amp Rating | 60A |
| Operating Temp. Range | -40C to 60C |
| Short Circuit Current Rating | 100 KA - MAKE u0026 WITHSTAND |
| Keying Position | 16 |
| Tightening Torque | Phase: 48 IN-LBS / 5.4 N-M |
| Number of Notch Positions | 24 |
| Hz | 60 Hz |
| IP Rating | Primary IP66/67; Secondary IP69 |
| Wire Strip Length | Phase: 15/16 in (24 mm) |
| Contact Configuration | 3P+G |
| Number of Aux. Outputs | NO AUX |
| Wire Temperature Rating | 60 Degrees C |
| Use With Installation Accessory Size | 4 |
| Wire Size | 10 AWG to 2 AWG |
| Terminal Type | Screw terminal |
| Impact Rating | IK10 |
| Color Code | Blue |
| Load Break Amp Rating_Abnormal Overload | 90A |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
37-64163 RECEPTACLE, Meltric, Mfr#: 37-64163
$810.99
Free shipping will be applied on orders over $50

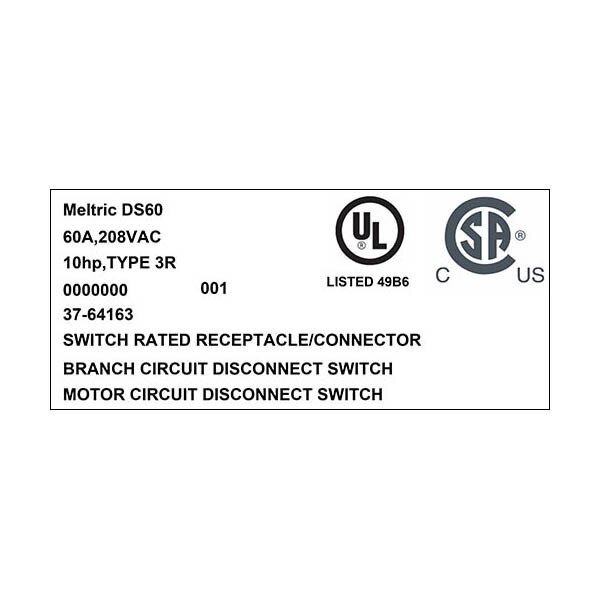

DS60 RECEPTACLE METAL BLUE SIZE 4 TYPE 3R 3P+G 60A 208 VAC 60 Hz NO AUX
Out of stock
