| Property | Value |
|---|---|
| Promotion Restriction | Not eligible for promotion |
| Item | Wall Backdraft Damper |
| Shutter Mounting Position | Vertical |
| Shutter Mounting Location | Wall |
| Shutter Construction Material | Extruded Aluminum Frame and G-90 Galvanized Tie Rods |
| Shutter Free Area | 7.436 sq ft |
| Shutter Opening Required | 36-1/2 in x 36-1/2 in |
| Shutter Overall Size | 39 in x 39 in |
| Fits Fan Dia. | 36 in |
| Blade Material | Aluminum |
| Max. Velocity | 2500 FPM |
| Shutter Item | Backdraft Damper / Wall Shutter |
| Open Depth | 6 1/4 in |
| Frame Opening A | 36 in |
| Frame Depth | 2 1/2 in |
| Frame Opening B | 36 in |
| For Use With | Vertical Mounted Exhaust Fans |
| Flange Width | 1 1/2 in |

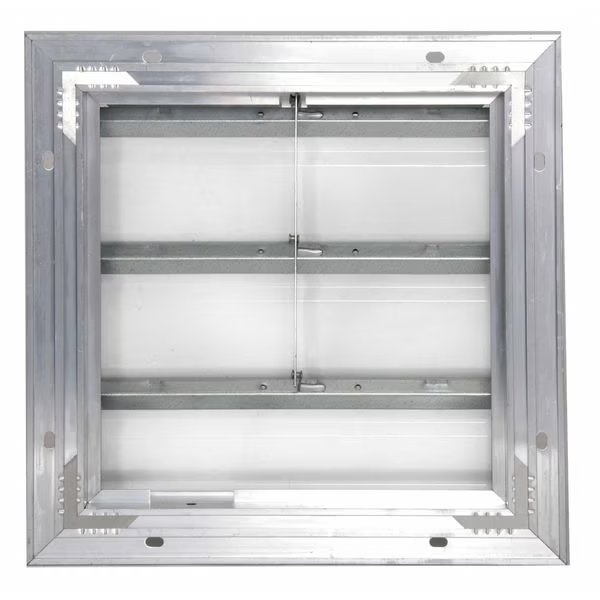

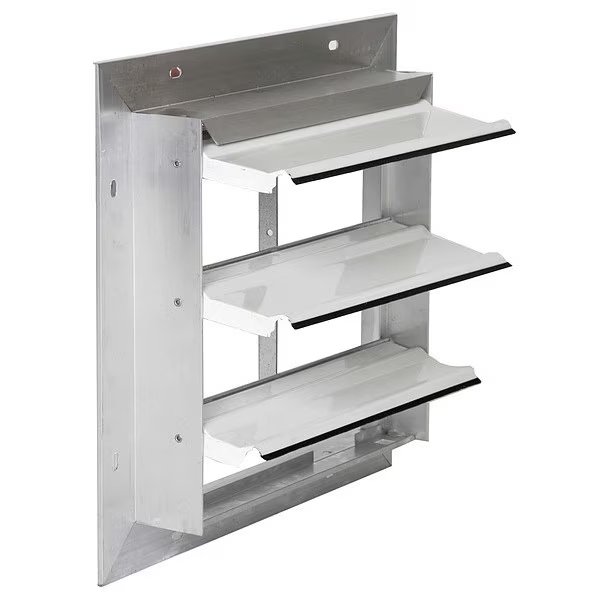

36 in Backdraft Damper / Wall Shutter, 36-1/2 in x 36-1/2 in, DAYTON, Mfr# 3C310
$165.99
Free shipping will be applied on orders over $50
39 In.H-W 5.75 In.L Alu Wall Backdraft Damper, Damper Application Backdraft, For Nominal Duct Diameter Not Applicable, Frame Material Aluminum, Number of Panels 1, Maximum Air Velocity 2500 fpm, Overall Height 39 in, Rough Opening Diameter 36 1/2 in, Rough Opening Shape Square, Fits Fan Diameter 36 in, For Duct Shape Not Applicable, Free Area 7.4 sq ft, Overall Width 39 in, Frame Material Thickness 0.8 in, Overall Length 5 3/4 in, Connection Type Not Applicable, Frame Depth 2 1/2 in
Out of stock
