| Property | Value |
|---|---|
| Promotion Restriction | Not eligible for promotion |
| Item | Wall Backdraft Damper |
| Shutter Mounting Position | Vertical |
| Shutter Mounting Location | Wall |
| Shutter Construction Material | G-90 Galvanized Steel Frame and Tie Rods |
| Shutter Free Area | 7.071 sq ft |
| Shutter Opening Required | 36-1/2 in x 36-1/2 in |
| Shutter Overall Size | 39 in x 39 in |
| Fits Fan Dia. | 36 in |
| Blade Material | Aluminum |
| Max. Velocity | 2500 FPM |
| Frame Opening B | 36 in |
| Frame Depth | 2 1/2 in |
| Open Depth | 6 1/4 in |
| Shutter Item | Backdraft Damper / Wall Shutter |

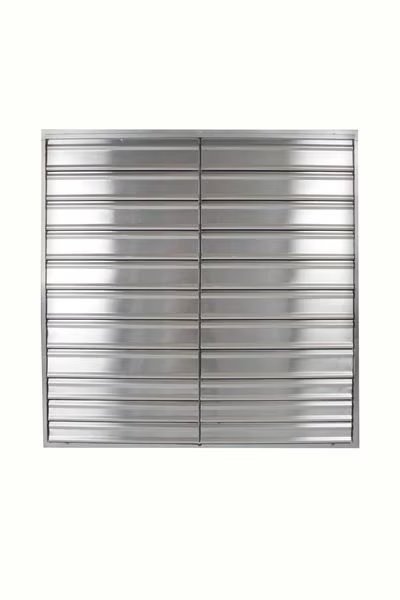

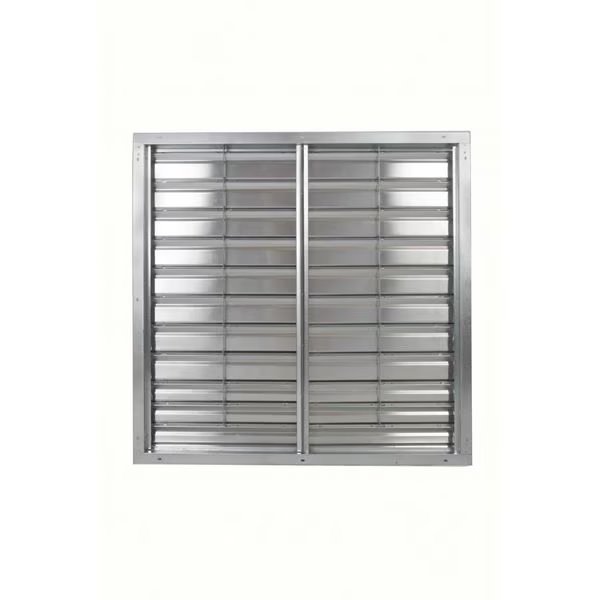

36 in Backdraft Damper / Wall Shutter, 36-1/2 in x 36-1/2 in, DAYTON, Mfr# 1C209
$182.99
Free shipping will be applied on orders over $50
39 In.H-W 5.75 In.L Alu Wall Vent Shutter, Damper Application Backdraft, For Nominal Duct Diameter Not Applicable, Frame Material Galvanized Steel, Number of Panels 2, Maximum Air Velocity 2500 fpm, Overall Height 39 in, Rough Opening Diameter 36 1/2 in, Rough Opening Shape Square, Fits Fan Diameter 36 in, For Duct Shape Not Applicable, Free Area 7.1 sq ft, Overall Width 39 in, Frame Material Thickness 20 ga, Overall Length 5 3/4 in, Connection Type Not Applicable, Frame Depth 2 1/2 in
Out of stock
